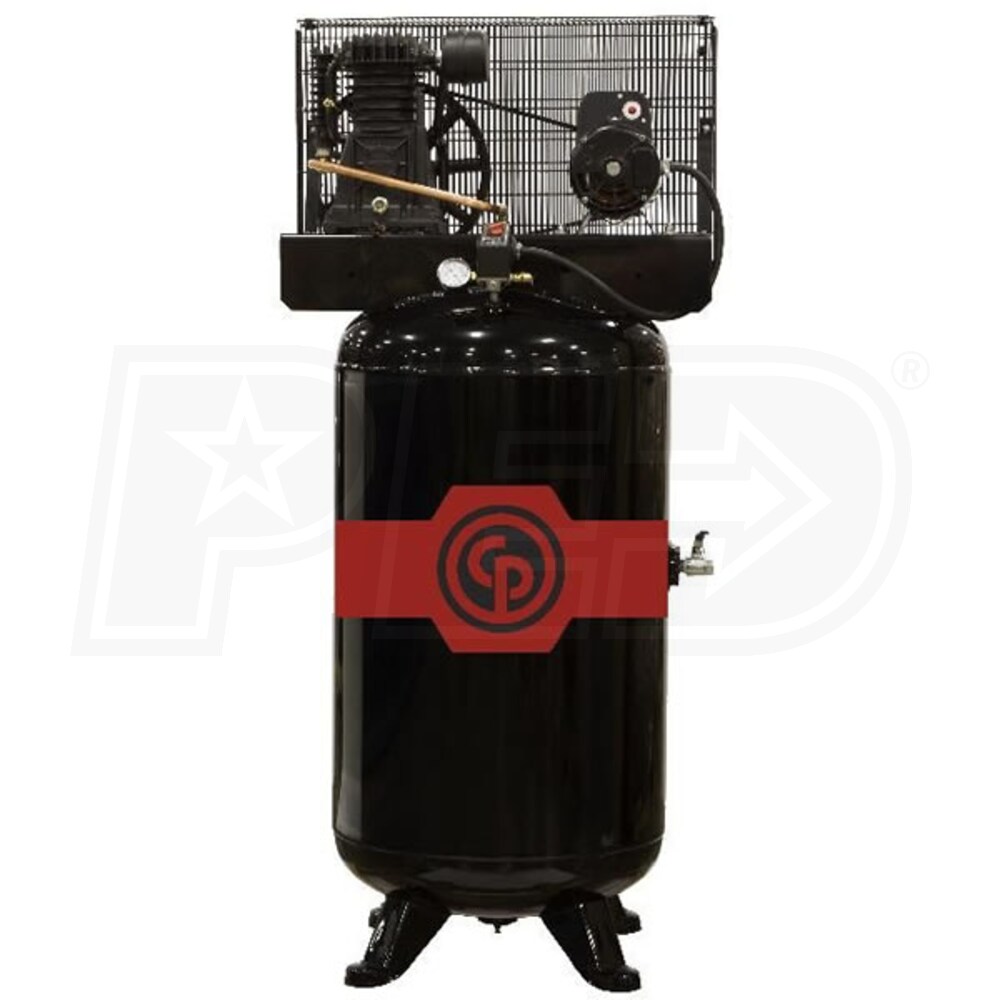

Chicago Pneumatic RCP-581VNS
Chicago Pneumatic RCP-581VNS
Chicago Pneumatic RCP-581VNS
Hover to zoom
1 Of 5
Chicago Pneumatic RCP-581VNS
Chicago Pneumatic RCP-581VNS

Chicago Pneumatic 5-HP 80-Gallon Dual-Voltage Two-Stage Air Compressor (208/230V 1-Phase)

Model:

RCP-581VNS

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Chicago Pneumatic 5-HP 80-Gallon Dual-Voltage Two-Stage Air Compressor (208/230V 1-Phase)
Chicago Pneumatic 5-HP 80-Gallon Dual-Voltage Two-Stage Air Compressor (208/230V 1-Phase)
Model: RCP-581VNS
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Voltage

208-230 Volt AC

Phase

1-Phase

CFM

15.33

Tank Size

80

  • Two Stage Compressor Delivers Great Performance And Value
  • Delivers 15.33 acfm @ 100 PSI; 13.75 acfm @ 175 PSI
  • Sturdy Construction Prolongs The Life Of Your Investment
  • Solid cast iron cylinder on 5 horsepower electric motor
  • Integrated aftercooler
  • Professional Features
  • ASME/CRN certified tank and safety valves
  • Fully enclosed motor with high flow belt guard
  • Start-stop pressure switch control
  • Vertical Tank Fits Conveniently In Most Shops And Garages
  • 80 gallon tank; 3/4" outlet
  • 2 year factory warranty (including valves)
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

RCP-581VNS
specs product image PID-2045
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
Consult Certified Electrician
Recommended Breaker
40 Amp Breaker
Engine
HP
5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
15.33
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Tank Orientation
Vertical
Overview
Weight
382 Pounds
Certification
ASME/CRN
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
36 Inches
Product Width
24 Inches
Product Height
73 Inches
Power Type
Electric
