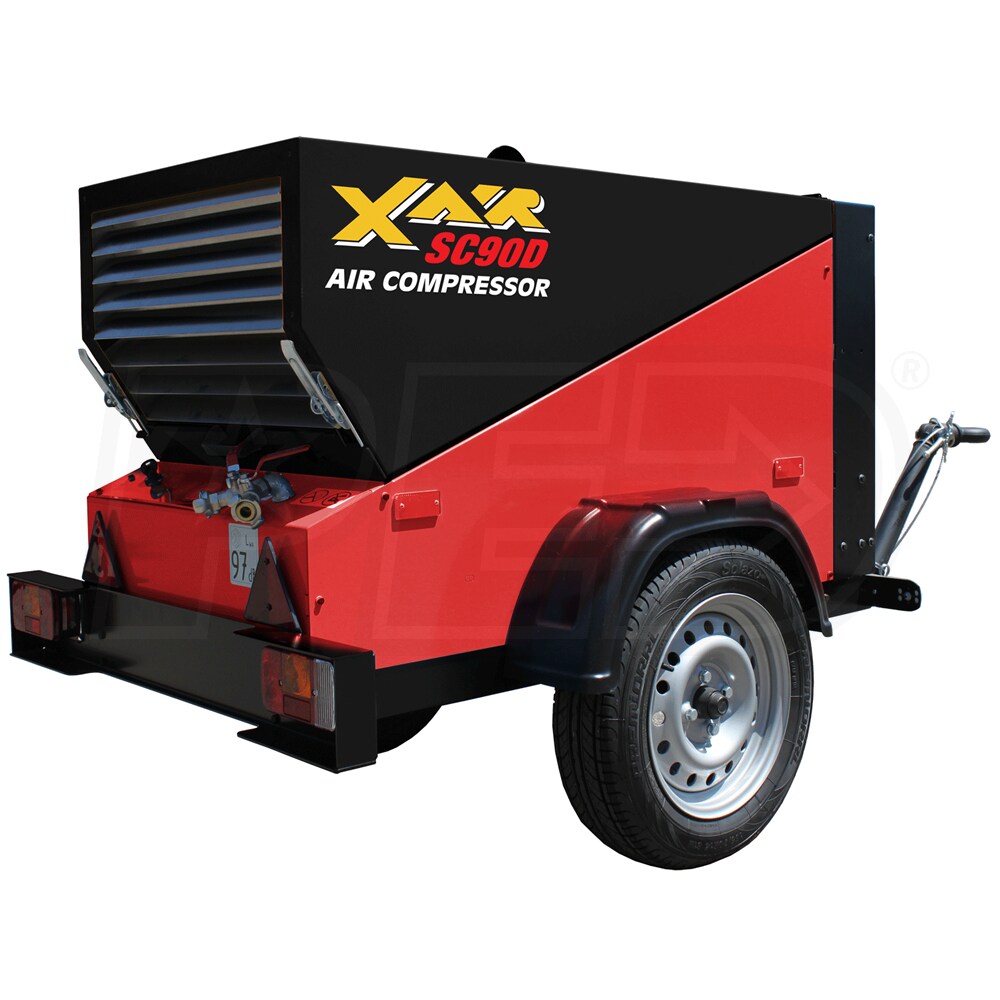

X Air by Con X Equipment SC90T 24-HP Trailer-Mounted Rotary Screw Air Compressor w/ Kubota Engine

Model:

SC90DT

Write A Review
$15,999.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

X Air by Con X Equipment SC90T 24-HP Trailer-Mounted Rotary Screw Air Compressor w/ Kubota Engine
X Air by Con X Equipment SC90T 24-HP Trailer-Mounted Rotary Screw Air Compressor w/ Kubota Engine
Model: SC90DT
$15,999.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Style

Rotary Screw Air Compressors

Engine Brand

Kubota

CFM

90

Tank Size

0

  • Small Investment, Big Return Compact Rotary Compressor
  • X AIR compressors excel in reliability and energy efficiency
  • Ideal for sandblasting, breakers, painting, chipping hammers, graffiti removal, nail guns, staple guns and much more...
  • XAIR SC90 Trailer-Mounted Oil Injected Rotary Screw
  • Low noise level 74 dBA @ 23 feet
  • Extremely durable, efficient and high performance air end
  • Airflow & pressure are constant and continuous, no need for an air tank
  • Durable Construction Space Saving Design
  • Hinged hood with 2 gas springs w/ lifting hooks
  • Highway approved with drawbar and rear signal lights
  • Rugged frame can withstand harsh environments and working conditions
  • 24.3-HP 3-Cylinder Kubota Diesel Engine w/ Electric Start
  • Easily runs two 60lb paving breakers
  • 6.5-gallon transparent gas tank for a full day's operation
  • Dependable commercial grade engine starts easily, runs quietly
  • Automatic Safety Shutdown System
  • Full safety shutdown on compressor and engine
  • Pressure safety valve on separator, pressure & thermal switch on engine and thermal switch on air end
  • Convenient Control Panel Gauges
  • Includes two 3/4" FNPT air outlets
  • Voltage gauge makes it easy for you to know status
  • Front mounted temperature & oil gauge; 2-gal oil compressor capacity
  • Compressor Cooling & Lubrication System
  • Fan exhaust the heat to flow to the cooler
  • Provide adequate lubrication and maintains proper operating temperature of the compressor
  • Fluid & Oil Separator Systems
  • Removes water vapor from compressed air for longer lifespan
  • Oil particles are separated for clean air to protect air tools and equipment
California residents see
Warning: This product can expose you to chemicals including Propylene glycol mono-t-butyl ether which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

SC90DT
specs product image PID-99447
General Information
Product Category
Air Compressor - Portable
Engine
HP
24.3
Auto Idle
Yes
Engine Brand
Kubota
Starting System
12-Volt Key Start
Engine Low Oil Shut-off
Yes
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
90
CFM Rated @
100 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
123 PSI
Pump Type
Rotary
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Duty Cycle
100%
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Tank
Tank Size
0 Gallons
Tank Included
No
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Air Tools
NPT
3/4"
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
1200 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
108 Inches
Product Width
32 Inches
Product Height
53 Inches
Power Type
Diesel
Additional Model Numbers

SC90T, SC90DT
