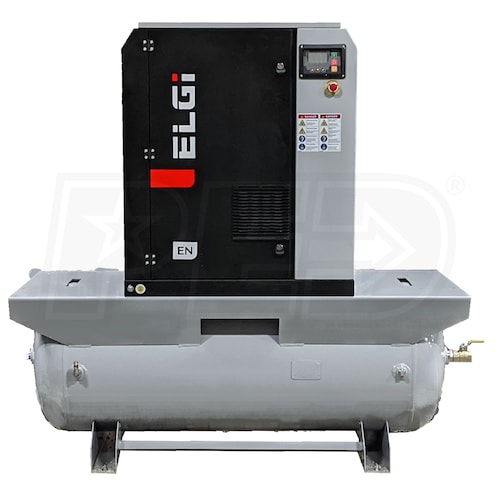

ELGi EN Series 7.5-HP 60-Gallon Rotary Screw Air Compressor (208-230V/460V 3-Phase)

ELGi EN Series 7.5-HP 60-Gallon Rotary Screw Air Compressor (208-230V/460V 3-Phase)
Our Price
Compare Prices
Shipping Info
Model: EN05-125-60T-A2
(Based on expert analysis, manufacturer ratings and customer reviews)
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews (0)
Write A Review
$5,310.72

Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Add-Ons
+$75.00
Factory-Direct
Ships in 4-7 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii, California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Rotary Screw 3-Phase
CFM
26.5
CFM Rated @ 125 PSI
Tank Size
60
Gallons
Grade
Commercial
CFM
26.5 CFM Rated @ 125 PSI
Tank Size
60 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Best In Class Rotary Screw Air Compressor
  • Built for food processing, paper, automotive, small machining & fabrication workshops
  • Thermo-Zone Layout Design
  • Designed into 4 zones for sensitive components to run cooler
  • Twin cooling fans for maximum cooling capacity and efficiency
  • 2-piece, oversized, air cooled oil cooler and after cooler for high ambient applications

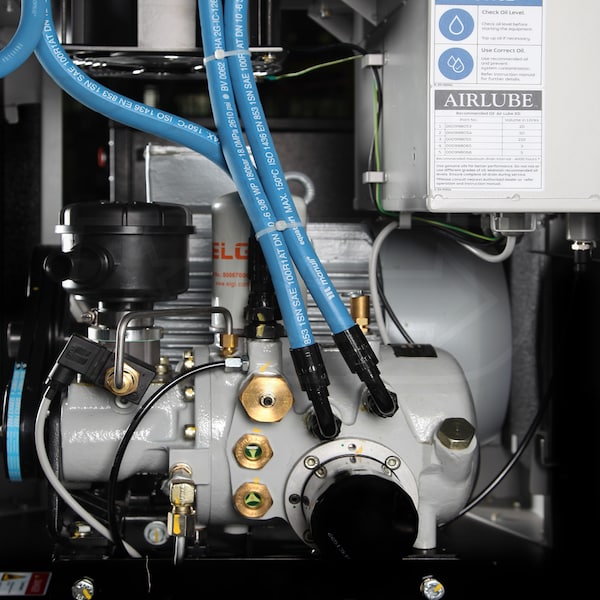

  • Exclusive ELGi Air End
  • 2-stage heavy duty inlet air filter complete with pre-filter mat for extended life
  • Integrated air intake valve, solenoid, safety, minimum pressure, thermostatic, oil drain & blow down valves

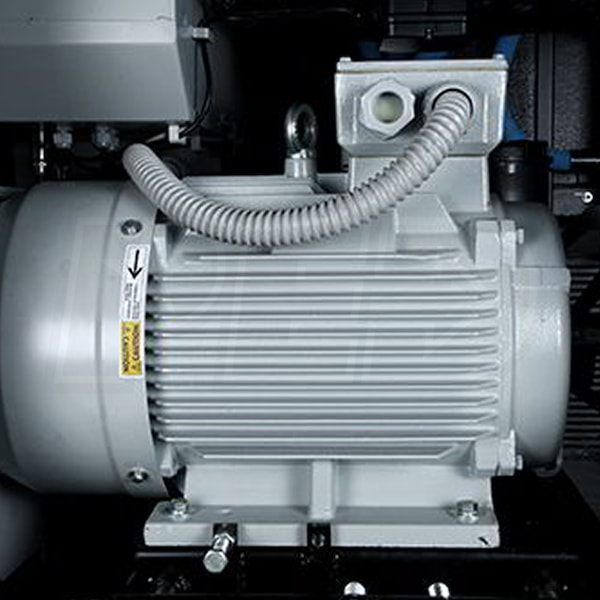

  • High Efficiency Premium Belt-Drive TEFC Motor
  • Complete with Class F insulation, reserve power & tensioning adjustments
  • All electrical components are UL/cUL certified to withstand severe conditions
  • Zero Leaks
  • Encapsulated design features internal ports and O-ring sealed flanges for leak-free performance
  • Heavy-Duty Full Enclosure w/ Best-In-Class Sounds Levels
  • Allows for installation closer to point-of-use
  • Complete with powder coated panels with 3 service doors
  • State Of The Art Neuron Controller
  • Easy-to-use service indications, fault alarms, hour master indicators and safety shut-downs help ensure maximum uptime
  • 60-Gallon Air Tank
  • 100% duty cycle produces steady air flow, day in, day out
  • Manual drain reduces moisture build-up to avoid rust & prolong life
  • 3 Stage Oil Separation System < 3PPM

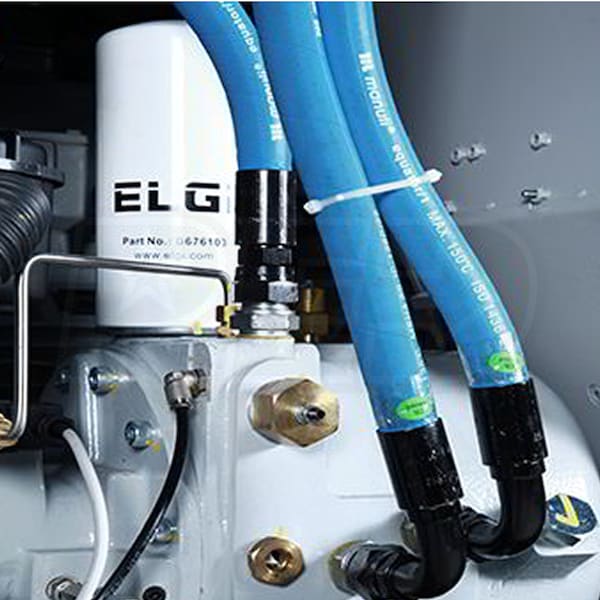

  • High capacity spin on 10 micron oil filter elemen
  • Factory fill with 8,000-hour life premium synthetic lubricant
  • ELGi's unique Oil Seperation By Impact and Deceleration action efficiently seperates oil & air
  • 1-Year "Bumper-To-Bumper" Warranty
  • Backed by 6-year Air End Warranty
  • 5-year parts & labor warranty on the motor, coolers, and reservoir
  • 48-Hours Parts Availability and Loaner Machines If The Unit Is Not Repaired In 48-Hours
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
64
Magnetic Starter
Yes
Amp Draw
22.8 (208V) - 20.6 (230V) / 10 (460V)
Engine
HP
7.5
Pump
CFM
26.5
CFM Rated @
125 PSI
Max PSI
129 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Duty Cycle
100%
Pump Low Oil Shut-off
No
Tank
Tank Size
60 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Filter
Yes
Overview
Weight
800 Pounds
Certification
UL/cUL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
54 Inches
Product Depth
30 Inches
Product Height
58 Inches
Power Type
Electric
Grade
Commercial
Style
Rotary Screw 3-Phase
CFM
26.5
CFM Rated @ 125 PSI
Tank Size
60
Gallons
Grade
Commercial
CFM
26.5 CFM Rated @ 125 PSI
Tank Size
60 Gallons
