Features
Style
Refrigerated
Dryer Voltage
460V 3-Phase
Air Dryer CFM
850
- Premium Industrial 850 CFM Refrigerated Air Dryer
- Chills the air to condense & remove moisture; runs on 460 Volt, 3-phase
- 230 PSI max; max inlet temp: 150°F; 37°F - 50°F dewpoint; designed for 3" pipe
- Maximum ambient temperature: 122°F; for use with compressors that do not have aftercoolers
- 5 Micron Pre-Filter
- Removes larger dust & dirt particles from the air supply so the dryer can work more efficiently
- 1 Micron Active Coalescing Filter
- Removes oil & water particles from the air; cleaner, drier air improves tool life & project results
- Refrigerated Air Inlet Inner Cooler
- Trouble-free high temperature cooling for consistent, dry air
- Automatic Drain System
- Eliminates the need for daily maintenance
- Outlet Air Baffle Heater
- Prevents condensation on outlet air piping
- Side Mounted Condenser & Fan Motor

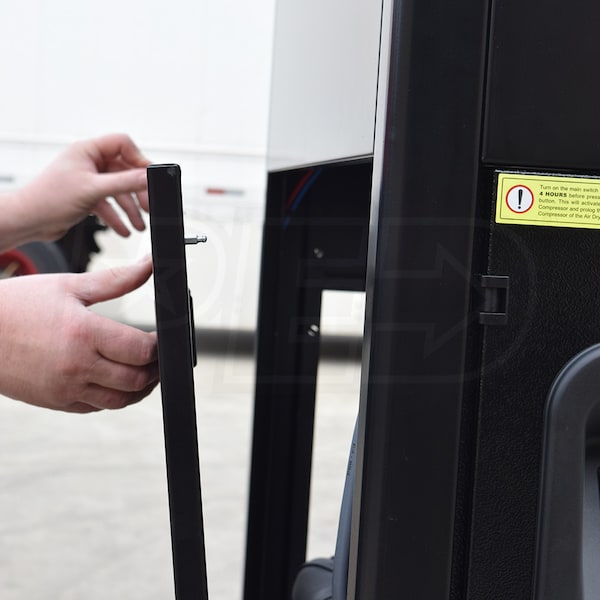

- Easy to reach & service through the cabinet doors- no screws to slow you down
- Uses environmentally friendly R134A refrigerant
- Heavy Duty Steel Cabinet & Safety Shut-Off Valve
- Meets the demands of industrial use; valve shuts the compressor down if it gets over or below a safe temperature
- 2 Year Limited Factory Warranty; 5 Years On Heat Exchanger
Specifications
EDRCF4600850

General Information
Product Category
Air Compressor Accessories
Motor
Amp Draw
20
Air Dryer
Dryer Voltage
460V 3-Phase
Air Dryer CFM
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
850
Max PSI
Max PSI
The most amount of PSI that be passed through a dryer
230
Max Inlet Temp. Rating
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
140
Max Ambient Temp. Rating
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
122
Non-Cycling
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
3"
Outlet Fittings
3"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
Yes
Wall Mountable
No
Alarm Lights
No
Auto Drain
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
No
Dryer Magnetic Starter
Yes
Dry Amp Draw
16.9
Overview
Product Category
Air Compressor Accessories
Weight
863 Pounds
Certification
UL/CSE
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
46 Inches
Product Width
31 Inches
Product Height
68 Inches
Power Type
Electric
UPC
815002013862
Reviews
EMAX EDRCF4600850 Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
How-To Articles
How to Pick the Perfect Compressed Air Dryer
Ever heard the saying an ounce of prevention is worth a pound of cure? Well, if...
What an Air Line Filter is and How it Works
Without an air line filter - water, oil, and dirt can cause major damage to pne...
How to Pick the Perfect Refrigerated Air Compressor Dryer
Refrigerated Dryers use a cooling system similar to that of a home air conditio...
Manuals
EDRCF4600850

Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

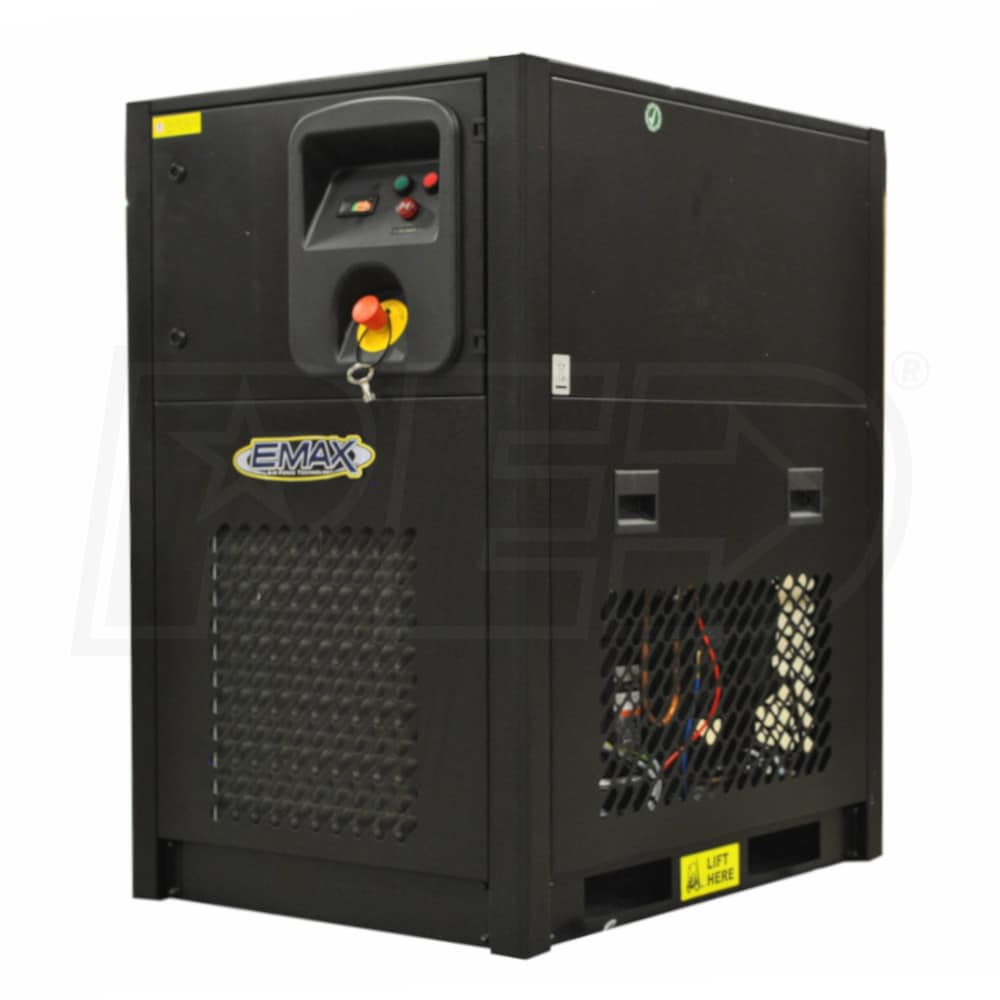

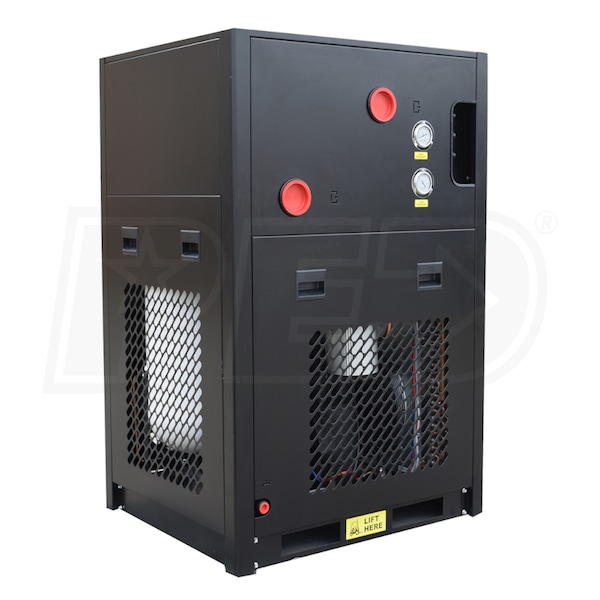

EMAX Industrial 460V-3 Refrigerated Air Dryer (850 CFM)
