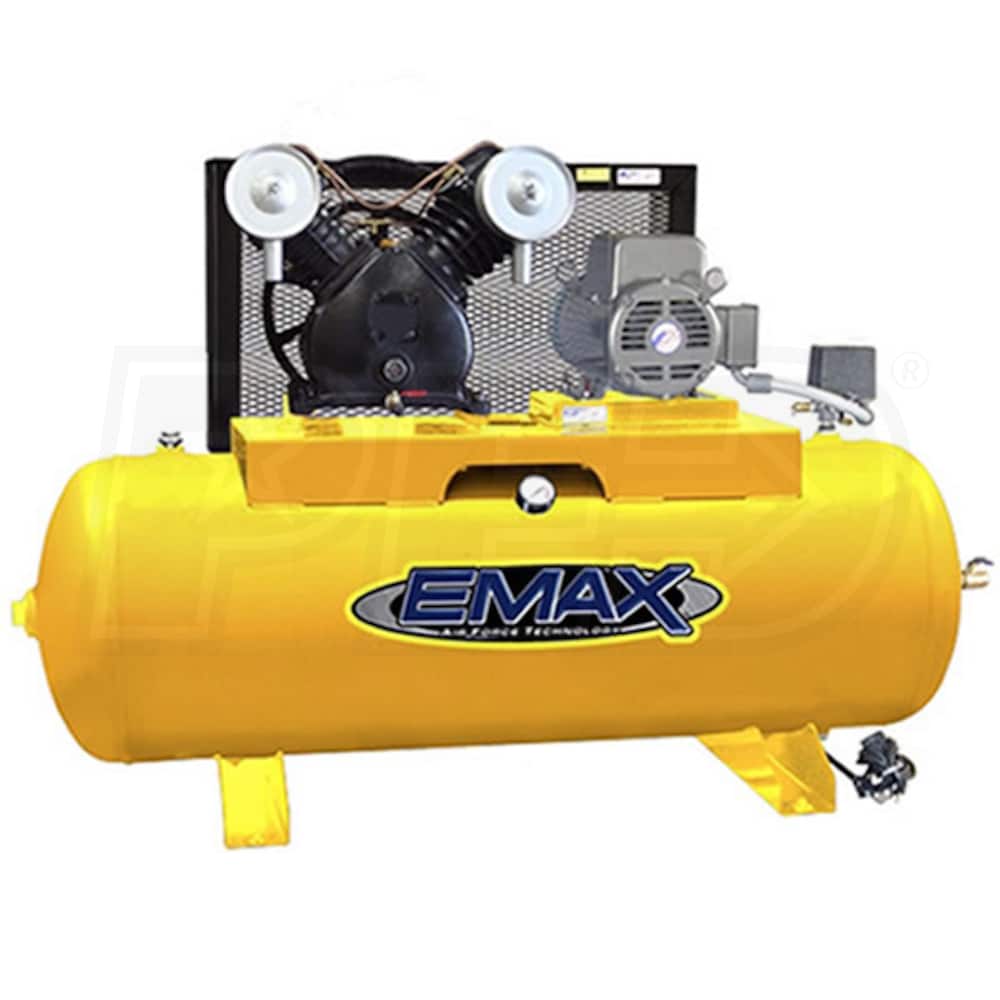

EMAX 5-HP 80-Gallon Dual-Voltage Single-Stage Air Compressor (208/230V 1-Phase)

EMAX 5-HP 80-Gallon Dual-Voltage Single-Stage Air Compressor (208/230V 1-Phase)
Model: EP05H080S1
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Contractor
Style
Single Stage 1-Phase
CFM
19
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Contractor
CFM
19 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
  • Piston Series Single-Stage Cast Iron Pump
  • Dual control design allows for automatic or continuous run
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • Ram-Tek - Solid Steel, Heavy Gauge Rods
  • Built for maximum performance & durability
  • Cool-Tek - The Coolest Running Compressors In The Industry
  • 35% lower operating temperature
  • Reduces moisture build up & extends pump life
  • Flow-Tek - Concentric Disc Valves
  • Deliver maximum air flow & reliability with low replacement costs
  • 5-HP Industrial Grade 208/230 Volt Motor
  • Low 1750 RPM design extends useful life
  • Belt Tension Adjuster - Fast, Easy "One Turn" Design
  • Reduces vibration and extends belt life
  • Auto Tank Drain
  • 110V Dual timer controlled, eliminates daily maintenance
  • Requires A 40 Amp Breaker
  • 48 start-up amps; 24 running amps at normal load
  • 5 Year Limited Factory Warranty On Pump & Tank
  • Check your Owner's Manual for details
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
48
Engine
HP
5
Pump
CFM
19
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Single-Stage
Max PSI
135 PSI
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Overview
Certification
UL
Weight
895 Pounds
Product Length
74 Inches
Product Width
48 Inches
Product Height
62 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Power Type
Electric
UPC
815002010106
Grade
Contractor
Style
Single Stage 1-Phase
CFM
19
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Contractor
CFM
19 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
  • Piston Series Single-Stage Cast Iron Pump
  • Dual control design allows for automatic or continuous run
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • Ram-Tek - Solid Steel, Heavy Gauge Rods
  • Built for maximum performance & durability
  • Cool-Tek - The Coolest Running Compressors In The Industry
  • 35% lower operating temperature
  • Reduces moisture build up & extends pump life
  • Flow-Tek - Concentric Disc Valves
  • Deliver maximum air flow & reliability with low replacement costs
  • 5-HP Industrial Grade 208/230 Volt Motor
  • Low 1750 RPM design extends useful life
  • Belt Tension Adjuster - Fast, Easy "One Turn" Design
  • Reduces vibration and extends belt life
  • Auto Tank Drain
  • 110V Dual timer controlled, eliminates daily maintenance
  • Requires A 40 Amp Breaker
  • 48 start-up amps; 24 running amps at normal load
  • 5 Year Limited Factory Warranty On Pump & Tank
  • Check your Owner's Manual for details
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
48
Engine
HP
5
Pump
CFM
19
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Single-Stage
Max PSI
135 PSI
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Overview
Certification
UL
Weight
895 Pounds
Product Length
74 Inches
Product Width
48 Inches
Product Height
62 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Power Type
Electric
UPC
815002010106
Product Specs
+
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
48
Engine
HP
5
Pump
CFM
19
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Single-Stage
Max PSI
135 PSI
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Overview
Certification
UL
Weight
895 Pounds
Product Length
74 Inches
Product Width
48 Inches
Product Height
62 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Power Type
Electric
UPC
815002010106
