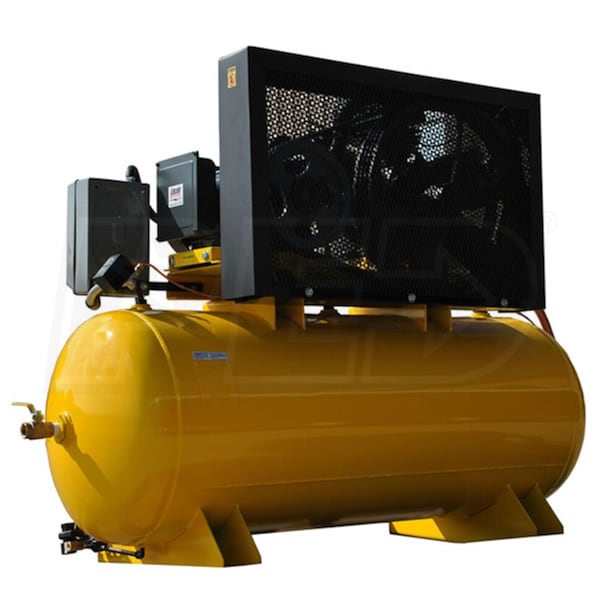

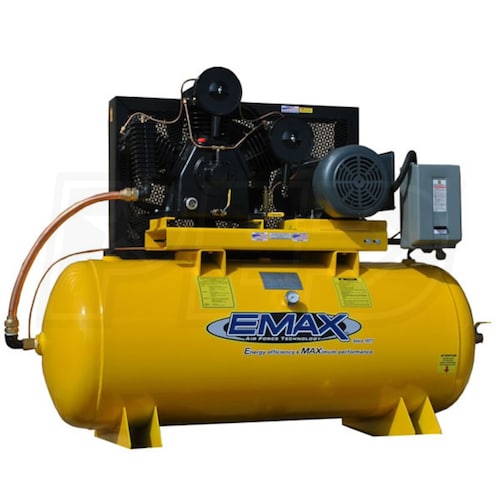

EMAX Industrial Plus 10-HP 120-Gallon Two-Stage Air Compressor (208/230V 1-Phase)
Model:
EP10H120Y1
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Optional Accessories
7
Model: OILPIS102Q
$28.00
Factory-Direct
$2,878.00
Factory-Direct
Model: 4102003587
$2,043.00
Factory-Direct
Model: DXCM024-0344
$244.00
Factory-Direct
$329.99
Factory-Direct
Model: IDFB8E-11N
$1,499.99
Factory-Direct
$783.33
Factory-Direct
Features
Grade
Commercial
Voltage
208-230 Volt AC
Phase
1-Phase
CFM
35
Tank Size
120
- Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
- Pressure Lubricated Two-Stage Cast Iron Pump

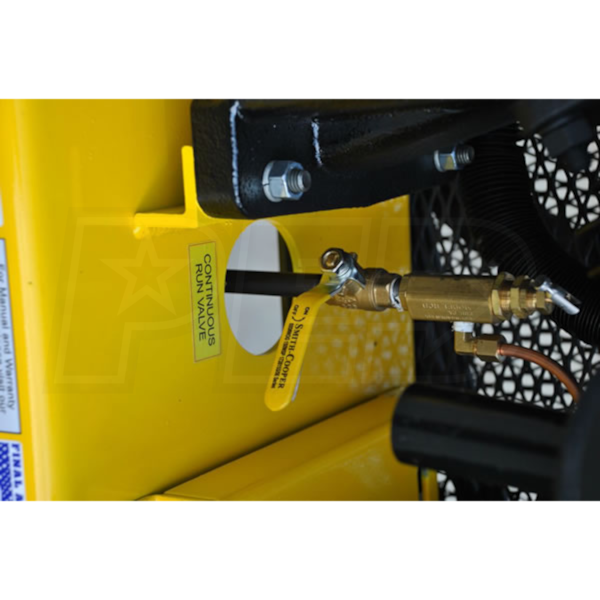

- Dual control design allows for automatic or continuous run
- Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating
- Ram-Tek - Solid Steel, Heavy Gauge Rods
- Built for maximum performance & durability
- Flow-Tek - Concentric Disc Valves
- Delivers maximum performance & longevity
- Cool-Tek - The Coolest Running Compressors In The Industry
- Air Stream Technology provides 35% lower operating temperature
- Reduces moisture build up & extends pump life
- 10-HP Industrial Grade Motor
- Low 1750 RPM design extends useful life

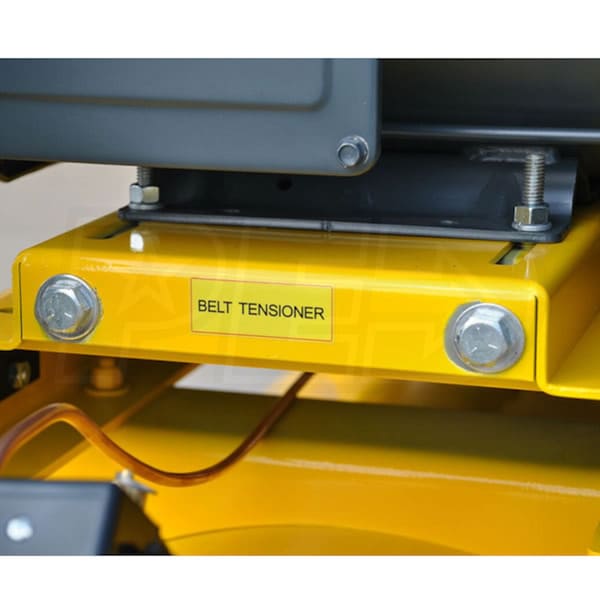

- Belt Tension Adjuster - Fast, Easy "One Turn" Design
- Reduces vibration and extends belt life
- Auto Tank Drain
- 110V Dual timer controlled, eliminates daily maintenance
- Gate Valve Oil Drain
- Provides quick, clean oil changes
- 5 Year Limited Warranty On Air Compressor Tank & Lifetime Limited Warranty On Pressure Lubricated Pump
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
EP10H120Y1
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
78
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
40
Recommended Breaker
60 Amp Breaker
Engine
HP
10
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
35
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
1105 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
78 Inches
Product Width
32 Inches
Product Height
56 Inches
Power Type
Electric
UPC
815002010182
Reviews
(7)
EMAX EP10H120Y1 Reviews & Ratings
Customer Photos and Videos
Not many manufacturers offer a larger unit with the capability to run off of single phase. EMAX was fully aware of this and wanted to resolve the issue. Their EMAX 10-HP 120-gallon air compressor will provide you with the air you need while not worry about finding that three phase power you do not have.
This unit puts out 35 CFM at 175 PSI. The solid cast iron pump has dual control design for automatic or continuous run applications. The pump is also rated up to 50,000 hours of life. What's running this pump you ask? A 10-HP industrial grade motor that runs at a low 1750 RPM; lower RPM extend the life of the motor.
EMAX is about performance, durability, and longevity. EMAX has included a 5 year limited warranty on this air compressor and tank. No add on's required!
This unit puts out 35 CFM at 175 PSI. The solid cast iron pump has dual control design for automatic or continuous run applications. The pump is also rated up to 50,000 hours of life. What's running this pump you ask? A 10-HP industrial grade motor that runs at a low 1750 RPM; lower RPM extend the life of the motor.
EMAX is about performance, durability, and longevity. EMAX has included a 5 year limited warranty on this air compressor and tank. No add on's required!
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Emax
By Paul A.
Roanoke, Illinois
Purchased 05/24/2019 |
Review Posted 07/10/2019
This Emax compressor is a beast I sandblasted with it on a regular basis. I ordered the one that laid down but they ship me the one that stands up. I did not receive any manual book with it. And were the glass bubbles at that shows you your oil level leaks tried tightening it up a little bit but still leaks. Other than that it does a great job.
Paul A. Recommends This
Was this review helpful?
Manufacturer Response
First Thank you for leaving us a review! regarding the Vertical style of the Horizontal style we are so sorry for that mistake, i would be happy to look into this, feel free to call in. Also the leaking sight glass can be resolved. Please call in and talk with our tech department to solve the issues. Again we thank you for choosing EMAX and hope that you are part of the EMAX family for years to come!
Rating Breakdown
4/5
4/5
5/5
4/5
Pros:
Durable, Easy To Use, Reliable, I'd Buy It Again
Cons:
Heavy, Bad Instructions
The Output is Beyond What We Hoped For...
By Steve H.
Little Rock, Arkansas
Review Posted 05/04/2018

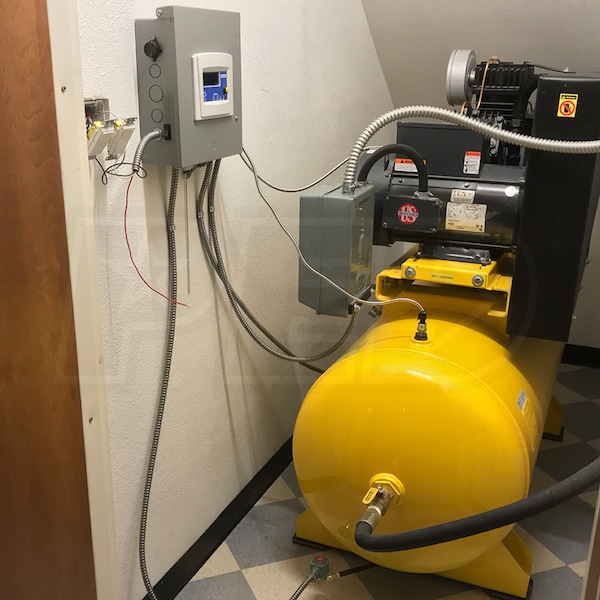

We haven't had any mfg. issues with this compressor & we've combed thru the machine for leaks loosefasteners, etc. in the end we put a compressor controller to manage fan control, unloader valve, & condensate drainage. End result the compressor has so much output it builds few psi in the tank before the controller even closes the unloader valve!!! That's a brute of a compressor & we like it
Steve H. Recommends This
Was this review helpful?
Manufacturer Response
WOW! Thank you for leaving such an awesome review!!! Welcome to the EMAX Family!
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Features, Exceeded Expectations, I'd Buy It Again, Performance
Cons:
Heavy, Packaging
Some Issues
By Kyle P.
Parkersburg, Iowa
Purchased 12/28/2016 |
Review Posted 02/21/2018
I got this product a year ago and at the time my only issue was the paint job...they did not even get the primer covered on the bottom side. Now a year later the compressor head started leaking oil, it seems to be a casting issue around the seal. Covered under warranty, but I had to pay another $170 for shipping to get another compressor head, plus I need to tear apart and replace it. Maybe I am just the unlucky one, but no other issues so far and I have liked the features. Just wish for the money I spent it would have been a bit of a better experience.
Kyle P. Recommends This
Was this review helpful?
Manufacturer Response
we are sorry to hear about your experience. We hope everything is going well for you now, please reach out if there is any further concerns or needs. Thank you for sticking with us and letting us make it right.
Rating Breakdown
5/5
1/5
4/5
5/5
Pros:
Features, Easy To Use, Price, Fast
Cons:
Low Quality, Quality does not meet expectations
Impressive Build Quality
By Michael D.
Knoxville, Tennessee
Purchased 04/24/2017 |
Review Posted 05/31/2017
All components are top notch install is very easy. Just wire her up.
Michael D. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for you review!! Thanks for becoming part of the Emax family!
Rating Breakdown
5/5
5/5
5/5
5/5
Air Compressor Works Great But Pretty Crappy Paint Job
By Kyle P.
Parkersburg, Iowa
Purchased 12/28/2016 |
Review Posted 02/13/2017
Compressor works just fine and keeps up with my needs. The paint job sucks though they did not even get a decent coat of paint on the bottom side of the tank.
Kyle P. Recommends This
Was this review helpful?
Expert Response
I am so sorry you were disappointed by the paint finish! This unit has a 5 year Factory Warranty that covers materials and workmanship, so you may want to give them a call at (866) 294-4153 to see if there's anything they can do to help.
Please have the serial number of your unit handy when you call EMAX, in case they ask for it.
We appreciate your business, and apologize for any inconvenience.
Please have the serial number of your unit handy when you call EMAX, in case they ask for it.
We appreciate your business, and apologize for any inconvenience.
Melissa C.
Air Compressor Expert
Manufacturer Response
we are sorry to hear about the paint job. i will relay to the production manager,we Paint them here in our paint both so we will address. Thank you for choosing emax and being apart of the Emax Family!
Rating Breakdown
5/5
3/5
5/5
4/5
Pros:
Durable, Features, Quiet, Reliable
Cons:
Expensive, Paint job
Worth The Money!
By Ryan C.
Wyoming
Purchased 12/07/2015 |
Review Posted 01/20/2016
This compressor does everything they say it will. Only thing we noticed is the 1" copper pipe on the left side of the compressor still gets extremely hot after 2 or 3 back to back cycles.
We still put ours in a separate room from our shop (8'x16') and you can't quite have a conversation beside it but it is quieter than any other standard reciprocating compressor that we have been around.
Everything looks and works great when it is new but give it a couple of years of work and then we will see how nice it is! So far so good!
We still put ours in a separate room from our shop (8'x16') and you can't quite have a conversation beside it but it is quieter than any other standard reciprocating compressor that we have been around.
Everything looks and works great when it is new but give it a couple of years of work and then we will see how nice it is! So far so good!
Ryan C. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
3/5
5/5
