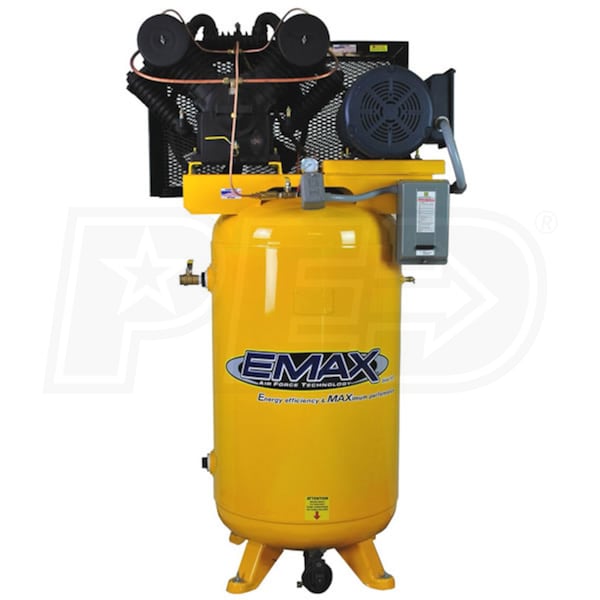

EMAX Industrial Plus 10-HP 80-Gallon Two-Stage Air Compressor (208/230V 1-Phase)
Model: EP10V080V1
4.3 out of 54.3 out of 54.3 out of 54.3 out of 54.3 out of 5
Number of Reviews(6)
Write a Review
$3,699.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $50.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Voltage
Phase
Available Add-Ons
+$50.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • 6
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Consumer
Style
Two Stage 1-Phase
CFM
34
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Consumer
CFM
34 CFM Rated @ 175 PSI
Tank Size
80 Gallons
Features
Features
  • Piston Series V-4 2-Stage 800 RPM Cast Iron Pump
  • Dual control design allows for automatic or continuous run
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • Ram-Tek - Solid Steel, Heavy Gauge Rods
  • Built for maximum performance & durability
  • Flow-Tek - Concentric Disc Valves
  • Delivers maximum performance & longevity
  • Cool-Tek - The Coolest Running Compressors In The Industry
  • Air Stream Technology provides 35% lower operating temperature
  • Reduces moisture build up & extends pump life
  • Built-In Inter-Cooler & After-Coolers
  • Allows air to be cooled between stages
  • Second cooling stage cools the air before it goes into the tank
  • 10-HP Grade Industrial Motor
  • Low 1750 RPM design extends useful life
  • Belt Tension Adjuster - Fast, Easy "One Turn" Design
  • Reduces vibration and extends belt life
  • Magnetic Starter
  • Gives you longer life on your controls
  • Limited to defect in materials & workmanship
  • Prevents overloads and gives you trouble-free operation
  • Auto Tank Drain
  • 110V dual timer controlled, eliminates daily maintenance

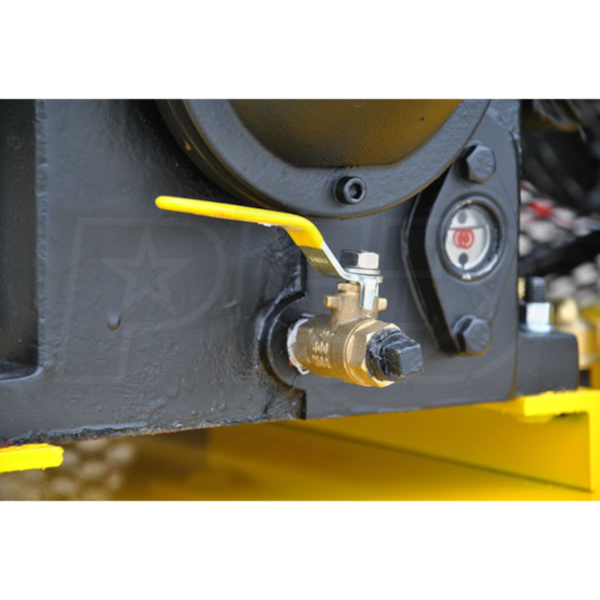

  • Gate Valve Oil Drain
  • Provides quick, clean oil changes
  • 5 Year Limited Warranty On Air Compressor Tank & Lifetime Limited Warranty On Pressure Lubricated Pump
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
dBA
78
Magnetic Starter
Yes
Amp Draw
40
Recommended Breaker
60 Amp Breaker
Engine
HP
10
Pump
CFM
34
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
915 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Product Length
45 Inches
Product Width
48 Inches
Product Height
78 Inches
Power Type
Electric
UPC
815002012476
Grade
Consumer
Style
Two Stage 1-Phase
CFM
34
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Consumer
CFM
34 CFM Rated @ 175 PSI
Tank Size
80 Gallons
Features
Features
  • Piston Series V-4 2-Stage 800 RPM Cast Iron Pump
  • Dual control design allows for automatic or continuous run
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • Ram-Tek - Solid Steel, Heavy Gauge Rods
  • Built for maximum performance & durability
  • Flow-Tek - Concentric Disc Valves
  • Delivers maximum performance & longevity
  • Cool-Tek - The Coolest Running Compressors In The Industry
  • Air Stream Technology provides 35% lower operating temperature
  • Reduces moisture build up & extends pump life
  • Built-In Inter-Cooler & After-Coolers
  • Allows air to be cooled between stages
  • Second cooling stage cools the air before it goes into the tank
  • 10-HP Grade Industrial Motor
  • Low 1750 RPM design extends useful life
  • Belt Tension Adjuster - Fast, Easy "One Turn" Design
  • Reduces vibration and extends belt life
  • Magnetic Starter
  • Gives you longer life on your controls
  • Limited to defect in materials & workmanship
  • Prevents overloads and gives you trouble-free operation
  • Auto Tank Drain
  • 110V dual timer controlled, eliminates daily maintenance
  • Gate Valve Oil Drain
  • Provides quick, clean oil changes
  • 5 Year Limited Warranty On Air Compressor Tank & Lifetime Limited Warranty On Pressure Lubricated Pump
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
dBA
78
Magnetic Starter
Yes
Amp Draw
40
Recommended Breaker
60 Amp Breaker
Engine
HP
10
Pump
CFM
34
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
915 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Product Length
45 Inches
Product Width
48 Inches
Product Height
78 Inches
Power Type
Electric
UPC
815002012476
Product Specs
+
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
dBA
78
Magnetic Starter
Yes
Amp Draw
40
Recommended Breaker
60 Amp Breaker
Engine
HP
10
Pump
CFM
34
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
915 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Product Length
45 Inches
Product Width
48 Inches
Product Height
78 Inches
Power Type
Electric
UPC
815002012476
