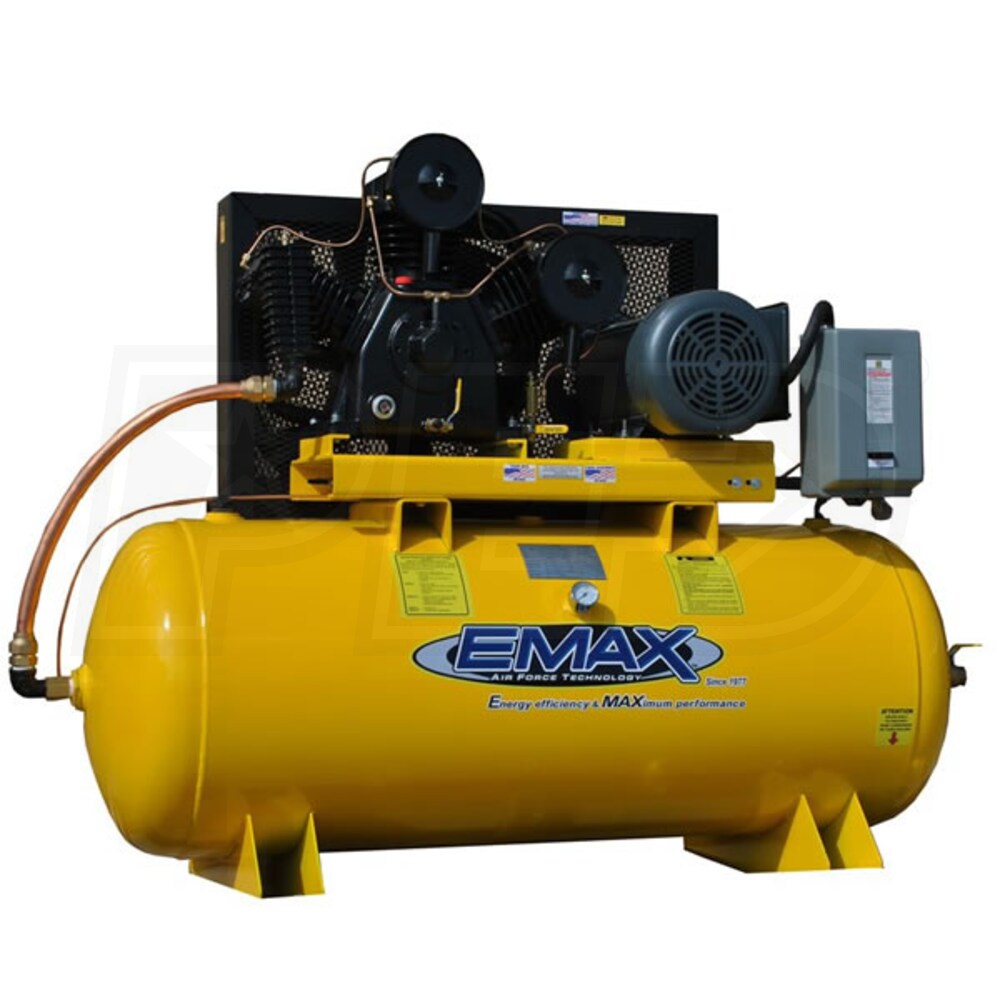

EMAX Industrial Plus 15-HP 120-Gallon Two-Stage Air Compressor (208V 3-Phase)
Model: EP15H120Y3-208
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(2)
Write a Review
$4,699.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Backordered
Estimated Availability December 22, 2020
Shipping to60601
Shipping Details
  • Free to Lower 48 States
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Voltage
Dryer
Available Add-Ons
Add an Extended Warranty
Excludes CA
Share
  • Product Description
  • 2
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 3-Phase (208 Volts)
CFM
57
CFM Rated @ 100 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
57 CFM Rated @ 100 PSI
Tank Size
120 Gallons
Features
Features
  • Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
  • Piston Series Two-Stage Cast Iron Pump

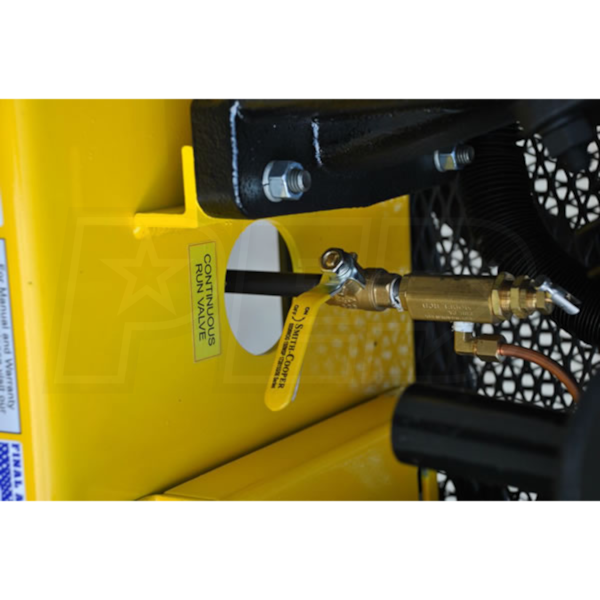

  • Dual control design allows for automatic or continuous run
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • Ram-Tek - Solid Steel, Heavy Gauge Rods
  • Built for maximum performance & durability
  • Flow-Tek - Concentric Disc Valves
  • Delivers maximum performance & longevity
  • Cool-Tek - The Coolest Running Compressors In The Industry
  • Air Stream Technology provides 35% lower operating temperature
  • Reduces moisture build up & extends pump life
  • 15-HP Industrial Grade Motor
  • Low 1750 RPM design extends useful life

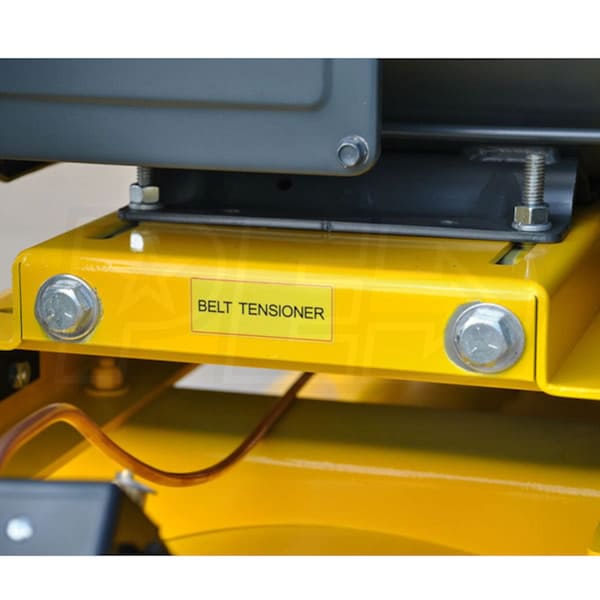

  • Belt Tension Adjuster - Fast, Easy "One Turn" Design
  • Reduces vibration and extends belt life
  • Auto Tank Drain
  • 110V Dual timer controlled, eliminates daily maintenance
  • Gate Valve Oil Drain
  • Provides quick, clean oil changes
  • 5 Year Limited Warranty On Air Compressor Pumps & Tanks
Specifications
Motor
Voltage
208 Volt AC
Phase
3-Phase
dBA
78
Magnetic Starter
Yes
Amp Draw
36
Recommended Breaker
50 Amp Breaker
Engine
HP
15
Pump
CFM
57
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
1410 Pounds
Certification
UL,CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
72 Inches
Product Width
30 Inches
Product Height
51 Inches
Power Type
Electric
Grade
Commercial
Style
Two Stage 3-Phase (208 Volts)
CFM
57
CFM Rated @ 100 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
57 CFM Rated @ 100 PSI
Tank Size
120 Gallons
Features
Features
  • Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
  • Piston Series Two-Stage Cast Iron Pump
  • Dual control design allows for automatic or continuous run
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • Ram-Tek - Solid Steel, Heavy Gauge Rods
  • Built for maximum performance & durability
  • Flow-Tek - Concentric Disc Valves
  • Delivers maximum performance & longevity
  • Cool-Tek - The Coolest Running Compressors In The Industry
  • Air Stream Technology provides 35% lower operating temperature
  • Reduces moisture build up & extends pump life
  • 15-HP Industrial Grade Motor
  • Low 1750 RPM design extends useful life
  • Belt Tension Adjuster - Fast, Easy "One Turn" Design
  • Reduces vibration and extends belt life
  • Auto Tank Drain
  • 110V Dual timer controlled, eliminates daily maintenance
  • Gate Valve Oil Drain
  • Provides quick, clean oil changes
  • 5 Year Limited Warranty On Air Compressor Pumps & Tanks
Specifications
Motor
Voltage
208 Volt AC
Phase
3-Phase
dBA
78
Magnetic Starter
Yes
Amp Draw
36
Recommended Breaker
50 Amp Breaker
Engine
HP
15
Pump
CFM
57
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
1410 Pounds
Certification
UL,CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
72 Inches
Product Width
30 Inches
Product Height
51 Inches
Power Type
Electric
Product Specs
+
Specifications
Motor
Voltage
208 Volt AC
Phase
3-Phase
dBA
78
Magnetic Starter
Yes
Amp Draw
36
Recommended Breaker
50 Amp Breaker
Engine
HP
15
Pump
CFM
57
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
1410 Pounds
Certification
UL,CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
72 Inches
Product Width
30 Inches
Product Height
51 Inches
Power Type
Electric
