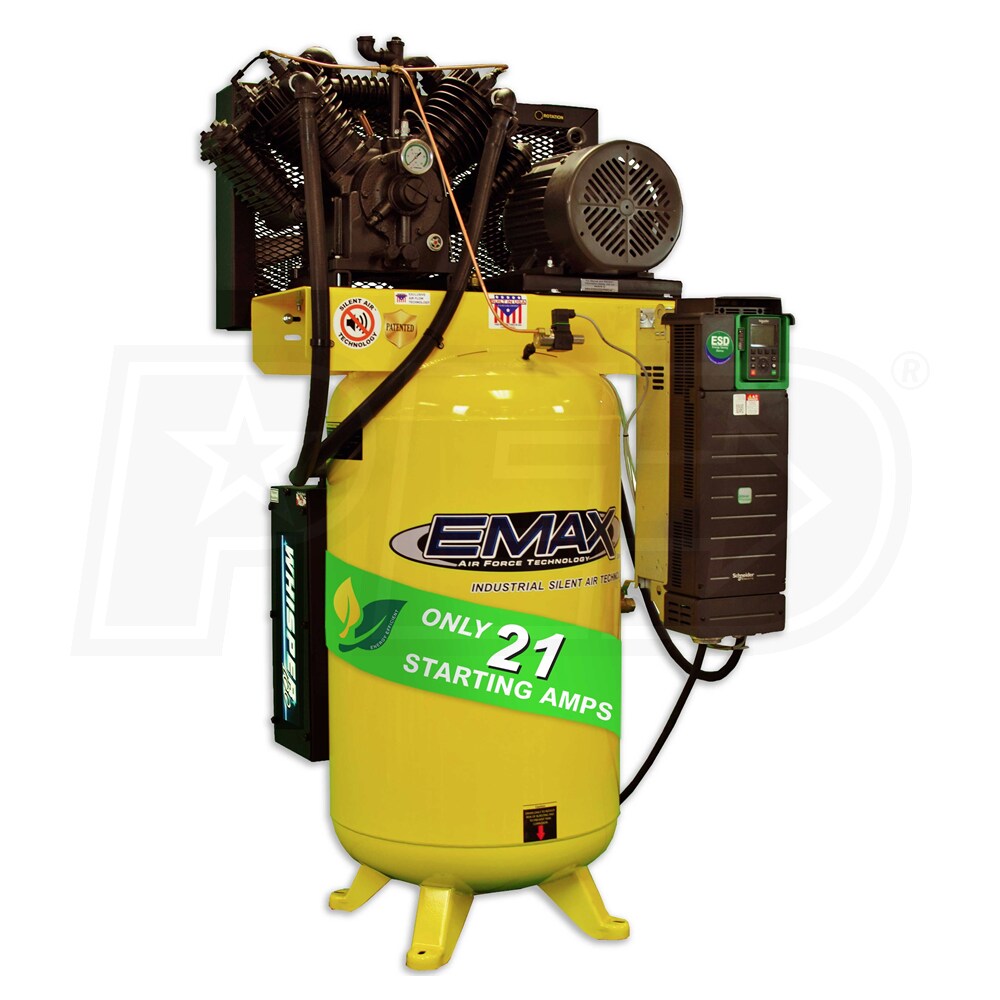

EMAX Industrial Smart Air Silent 7.5-HP 80-Gallon Variable Speed Two-Stage Air Compressor (208/230V 1-Phase & 208/230V 3-Phase)

EMAX Industrial Smart Air Silent 7.5-HP 80-Gallon Variable Speed Two-Stage Air Compressor (208/230V 1-Phase & 208/230V 3-Phase)
Our Price
Compare Prices
Shipping Info
Model: EPV07V080V13
(Based on expert analysis, manufacturer ratings and customer reviews)
$5,299.00
Factory-Direct
Ships in 3-4 Weeks
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Add-Ons
+$50.00
Free Shipping$5,299.00Buy Now
$5,349.00Visit Site

(as of 12:07 CST - Details)Sales Tax Extra $5,317.77Visit Site
Factory-Direct
Ships in 3-4 Weeks
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
1-3 Phase
CFM
31
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
31 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
  • EMAX Smart Air, Energy Savings Air Compressor
  • Saves up to $5,000.00 per year in energy savings
  • 84% energy saving on start-ups & 40% during run cycles
  • At .10 cents per kWh, unit will pay for itself in energy savings in 24 months (assuming a 5-day work week)
  • NEW Variable Frequency Drive (VFD) Technology
  • Enables larger units to be used in home garages & small shops
  • Allows user to operate in single or 3-phase power with voltages ranging from 208-230V
  • Variable Speed Drive (VSD) Technology
  • Air demand sensor automatically changes pump speed & air output
  • Soft start saves up to 7 times starting energy; 10-yr motor warranty
  • Motor gradually increases RPM, keeping startup AMPís at bare minimum

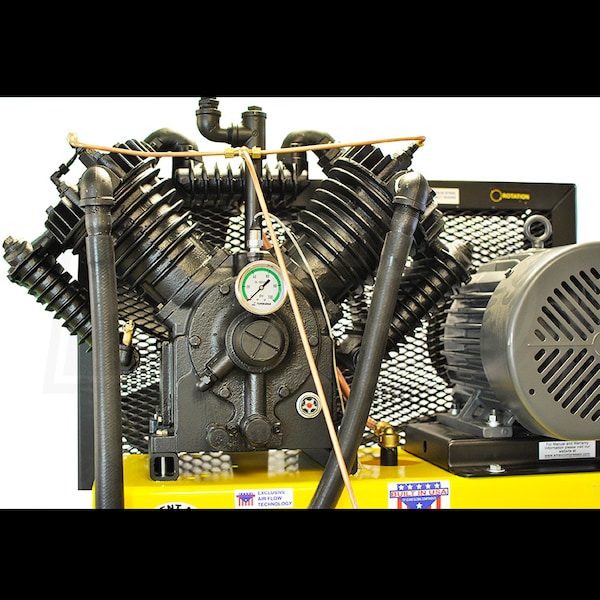

  • Solid Cast-Iron Pressure Lubricated Pump
  • Lifetime pump warranty w/ purchase of annual maintenance kit
  • 275 to 800 variable speed pump RPM provides longer lifespan
  • Whisper Series Silencer Air System
  • Reduces DB(a) rating by as much as 50%
  • Average 63 DB(a) allows for installation closer to point-of-use

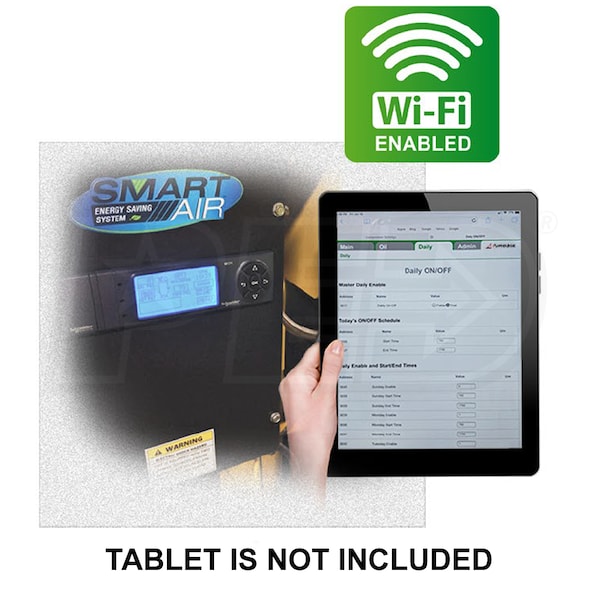

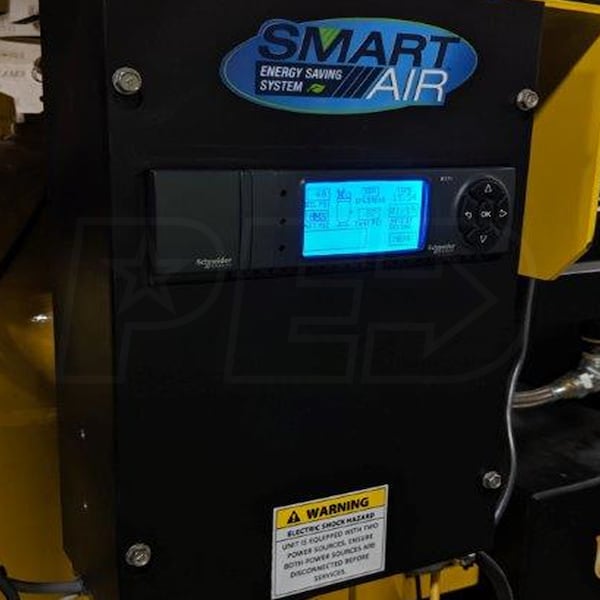

  • Fully Programmable PLC Touch Screen Logic Controller
  • Set date, hours of operation and PSI & RPM ranges
  • Digitally displays kW energy savings while unit is running
  • Programmable timed starts/stops for each day of week
  • Automatic Shutdown & Displayed Maintenance Warnings
  • Helps reduce yearly maintenance cost
  • Indicates service maintenance for filters and oil
  • Alarm shutdowns include: low oil, motor overload, high/low voltage and loss of phase
  • Automatic Electronic Tank Drain w/Dual Timer
  • Eliminates daily maintenance and reduces moisture build-up
  • Protects 80-gallon ASME air tank and air lines from rust
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-3 Phase
Amp Draw
10 - 20.7
Recommended Breaker
Consult Certified Electrician
dBA
63
Engine
HP
7.5
Pump
CFM
31
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Certification
UL,CSA, ASME
Weight
758 Pounds
Product Length
38 Inches
Product Width
42 Inches
Product Height
72 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Power Type
Electric
UPC
815002015613
Grade
Commercial
Style
1-3 Phase
CFM
31
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
31 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
  • EMAX Smart Air, Energy Savings Air Compressor
  • Saves up to $5,000.00 per year in energy savings
  • 84% energy saving on start-ups & 40% during run cycles
  • At .10 cents per kWh, unit will pay for itself in energy savings in 24 months (assuming a 5-day work week)
  • NEW Variable Frequency Drive (VFD) Technology
  • Enables larger units to be used in home garages & small shops
  • Allows user to operate in single or 3-phase power with voltages ranging from 208-230V
  • Variable Speed Drive (VSD) Technology
  • Air demand sensor automatically changes pump speed & air output
  • Soft start saves up to 7 times starting energy; 10-yr motor warranty
  • Motor gradually increases RPM, keeping startup AMPís at bare minimum
  • Solid Cast-Iron Pressure Lubricated Pump
  • Lifetime pump warranty w/ purchase of annual maintenance kit
  • 275 to 800 variable speed pump RPM provides longer lifespan
  • Whisper Series Silencer Air System
  • Reduces DB(a) rating by as much as 50%
  • Average 63 DB(a) allows for installation closer to point-of-use
  • Fully Programmable PLC Touch Screen Logic Controller
  • Set date, hours of operation and PSI & RPM ranges
  • Digitally displays kW energy savings while unit is running
  • Programmable timed starts/stops for each day of week
  • Automatic Shutdown & Displayed Maintenance Warnings
  • Helps reduce yearly maintenance cost
  • Indicates service maintenance for filters and oil
  • Alarm shutdowns include: low oil, motor overload, high/low voltage and loss of phase
  • Automatic Electronic Tank Drain w/Dual Timer
  • Eliminates daily maintenance and reduces moisture build-up
  • Protects 80-gallon ASME air tank and air lines from rust
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-3 Phase
Amp Draw
10 - 20.7
Recommended Breaker
Consult Certified Electrician
dBA
63
Engine
HP
7.5
Pump
CFM
31
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Certification
UL,CSA, ASME
Weight
758 Pounds
Product Length
38 Inches
Product Width
42 Inches
Product Height
72 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Power Type
Electric
UPC
815002015613
Product Specs
+
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-3 Phase
Amp Draw
10 - 20.7
Recommended Breaker
Consult Certified Electrician
dBA
63
Engine
HP
7.5
Pump
CFM
31
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Certification
UL,CSA, ASME
Weight
758 Pounds
Product Length
38 Inches
Product Width
42 Inches
Product Height
72 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Power Type
Electric
UPC
815002015613
