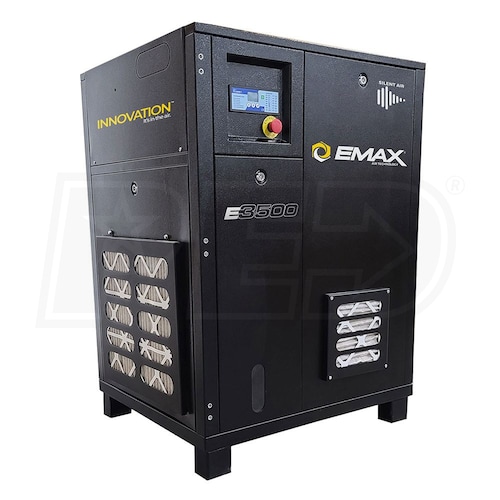

EMAX 15-HP Industrial Tankless Rotary Screw Air Compressor (460V 3-Phase)
Model: ERI0150003-460
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

CFM
56.85
CFM Rated @ 100 PSI
Tank Size
0
Gallons
Grade
Commercial
CFM
56.85 CFM Rated @ 100 PSI
Tank Size
0 Gallons
Features
Features
- EMAX New Generation Industrial Rotary Screw System
- Offers superior performance and quiet operation
- Built to exacting standards, to provide years of reliable service

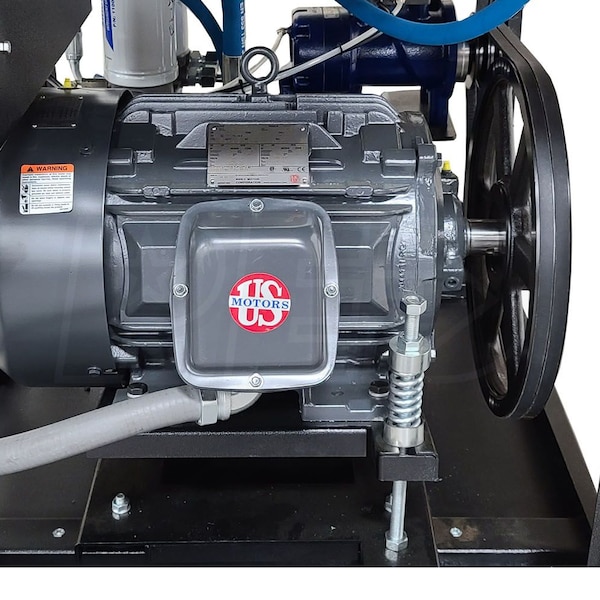

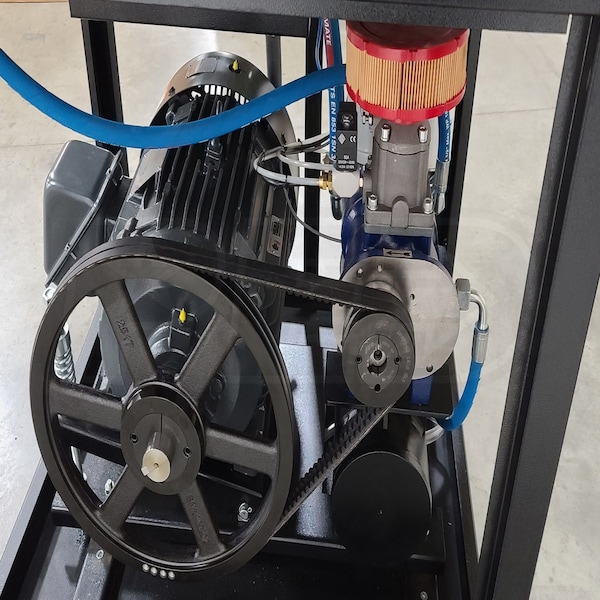

- TEFC Premium V-Belt Drive Motor
- NEMA standard low rpm 4 pole 1750 rpm
- High-efficiency Mann filters spin on for easy servicing
- Wye-Delta Soft Start Motor
- Reduces start load by 30% and provides reduces energy demand on start-up
- Precision Engineered Rotary Air End
- 100% duty cycle with up to 60,000 hours run life cycle.
- High flow aluminum Air/Oil radiator cooler with low rpm high flow cooling fan
- Heavy-Duty Soundproof Cabinet
- Solid steel with powder coated finish prevents rust
- Easy to remove insulated doors for fast servicing of the compressor
- Designed to be used with stationary air receiver (Not Included)

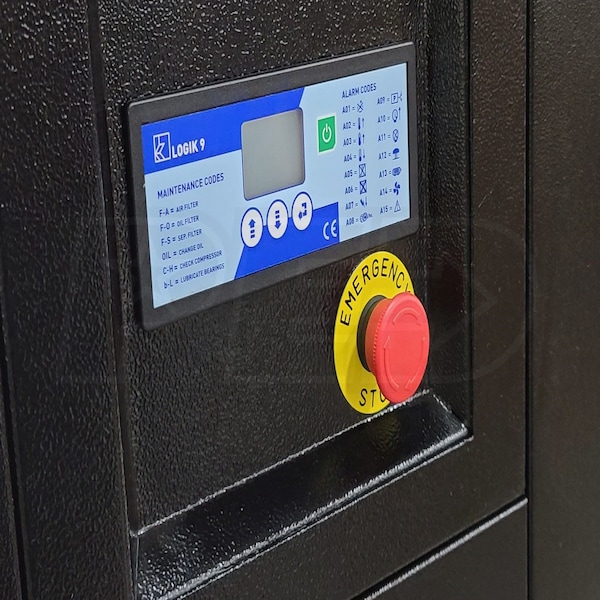

- PLC Logik 9 Smart Controller
- Gives you the visual ability to set pressures, alarms and schedules
- Includes temperature display, master monitoring, hour meter and auto start if power is lost
- VMC High Flow Inlet Poppet Valve
- Provides longer life due to lower friction
- Delivers higher compressor air flow and efficiency
- Best Warranty In The Business
- 1-yr limited factory warranty on all electrical components
- 5-yr limited factory warranty on cabinet, motor, and Air End Pump w/ warranty registry
- Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force
- SERVICEKIT003 Maintenance Kit required to validate warranty coverage
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
56.85
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
145 PSI
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1 Inch
Electronic Drain Valve
No
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Weight
546 Pounds
Certification
UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
38 Inches
Product Width
30 Inches
Product Height
49 Inches
Power Type
Electric
Grade

Style

CFM
56.85
CFM Rated @ 100 PSI
Tank Size
0
Gallons
Grade
Commercial
CFM
56.85 CFM Rated @ 100 PSI
Tank Size
0 Gallons
Features
Features
- EMAX New Generation Industrial Rotary Screw System
- Offers superior performance and quiet operation
- Built to exacting standards, to provide years of reliable service
- TEFC Premium V-Belt Drive Motor
- NEMA standard low rpm 4 pole 1750 rpm
- High-efficiency Mann filters spin on for easy servicing
- Wye-Delta Soft Start Motor
- Reduces start load by 30% and provides reduces energy demand on start-up
- Precision Engineered Rotary Air End
- 100% duty cycle with up to 60,000 hours run life cycle.
- High flow aluminum Air/Oil radiator cooler with low rpm high flow cooling fan
- Heavy-Duty Soundproof Cabinet
- Solid steel with powder coated finish prevents rust
- Easy to remove insulated doors for fast servicing of the compressor
- Designed to be used with stationary air receiver (Not Included)
- PLC Logik 9 Smart Controller
- Gives you the visual ability to set pressures, alarms and schedules
- Includes temperature display, master monitoring, hour meter and auto start if power is lost
- VMC High Flow Inlet Poppet Valve
- Provides longer life due to lower friction
- Delivers higher compressor air flow and efficiency
- Best Warranty In The Business
- 1-yr limited factory warranty on all electrical components
- 5-yr limited factory warranty on cabinet, motor, and Air End Pump w/ warranty registry
- Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force
- SERVICEKIT003 Maintenance Kit required to validate warranty coverage
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
56.85
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
145 PSI
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1 Inch
Electronic Drain Valve
No
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Weight
546 Pounds
Certification
UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
38 Inches
Product Width
30 Inches
Product Height
49 Inches
Power Type
Electric
Product Specs
+−
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
56.85
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
145 PSI
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1 Inch
Electronic Drain Valve
No
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Weight
546 Pounds
Certification
UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
38 Inches
Product Width
30 Inches
Product Height
49 Inches
Power Type
Electric
