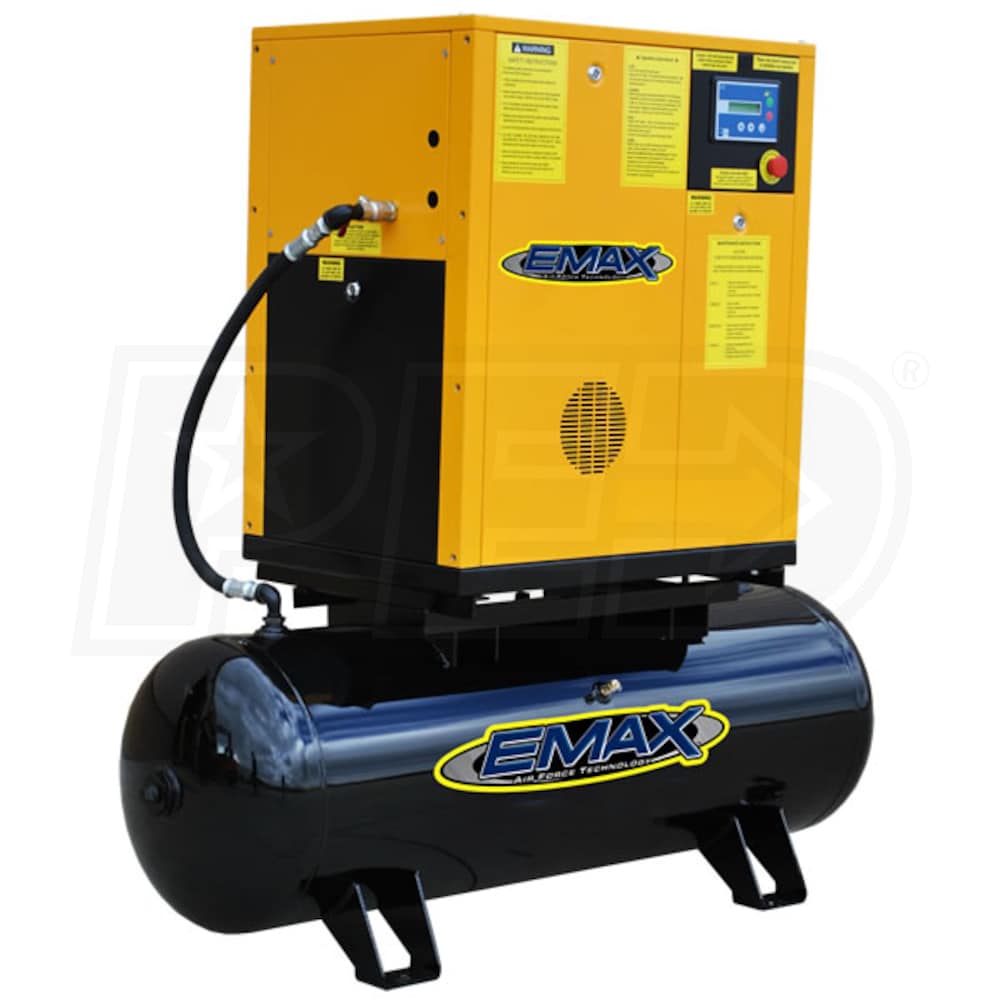

EMAX 7.5-HP 80-Gallon Rotary Screw Air Compressor (208/230/460V 3-Phase)
EMAX 7.5-HP 80-Gallon Rotary Screw Air Compressor (208/230/460V 3-Phase)
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
29
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
29 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
- Ultra-Quiet Rotary Screw Operation
- Delivers enhanced reliability with ultimate energy efficiency
- Continuous 100% duty cycle operates at normal conversation level
- Standard Y-Delta Soft Start Motor
- Runs at 1750 RPM for less wear and tear
- Reduces energy demand and amp draw on startup
- Recommended Breaker: 30 Amp @ 208/230V - 15 Amp @ 460V
- Drive-Tek
- Reduces energy demand up to 33% for huge savings
- Highest quality components with professional workmanship
- Precision Engineered Rotary Air End
- Highly efficient design provides maximum discharge
- German built with 10-year warranty & 70,000 running hours
- Advanced Programmable Logistic Controller
- Easy to use remote with timed start/stop and low oil shutdown
- Monitors maintenance, temperature, oil level, filtration, hours and much more
- Heavy-Duty Sound Attenuated Cabinet
- Offers lower decibel rating with easy access to critical components
- 80-gallon ASME air tank receiver with timed automatic drain valve
- Spin-Tek
- Unique tool-less oil filters & air/oil separators
- Genuine Mann filters reduce air end contamination & harmful elements
- Best Warranty In The Industry
- SERVICEKIT001A Maintenance Kit required to validate warranty coverage
- 10-year limited warranty on rotary air end & motor with purchase of Maintenance Service Kit - all other components are 5-years, including PLC
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
62
Amp Draw
18 Amp @ 208/230V - 9 Amp @ 460V
Engine
HP
7.5
Engine Low Oil Shut-off
Yes
Pump
CFM
29
CFM Rated @
100 PSI
Max PSI
107 PSI
Pump Type
Rotary
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
80 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Weight
1070 Pounds
Certification
UL, CSA, ASME, CRN
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
73 Inches
Product Width
48 Inches
Product Height
80 Inches
Power Type
Electric
UPC
815002013640
Grade
Style
CFM
29
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
29 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
- Ultra-Quiet Rotary Screw Operation
- Delivers enhanced reliability with ultimate energy efficiency
- Continuous 100% duty cycle operates at normal conversation level
- Standard Y-Delta Soft Start Motor
- Runs at 1750 RPM for less wear and tear
- Reduces energy demand and amp draw on startup
- Recommended Breaker: 30 Amp @ 208/230V - 15 Amp @ 460V
- Drive-Tek
- Reduces energy demand up to 33% for huge savings
- Highest quality components with professional workmanship
- Precision Engineered Rotary Air End
- Highly efficient design provides maximum discharge
- German built with 10-year warranty & 70,000 running hours
- Advanced Programmable Logistic Controller
- Easy to use remote with timed start/stop and low oil shutdown
- Monitors maintenance, temperature, oil level, filtration, hours and much more
- Heavy-Duty Sound Attenuated Cabinet
- Offers lower decibel rating with easy access to critical components
- 80-gallon ASME air tank receiver with timed automatic drain valve
- Spin-Tek
- Unique tool-less oil filters & air/oil separators
- Genuine Mann filters reduce air end contamination & harmful elements
- Best Warranty In The Industry
- SERVICEKIT001A Maintenance Kit required to validate warranty coverage
- 10-year limited warranty on rotary air end & motor with purchase of Maintenance Service Kit - all other components are 5-years, including PLC
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
62
Amp Draw
18 Amp @ 208/230V - 9 Amp @ 460V
Engine
HP
7.5
Engine Low Oil Shut-off
Yes
Pump
CFM
29
CFM Rated @
100 PSI
Max PSI
107 PSI
Pump Type
Rotary
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
80 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Weight
1070 Pounds
Certification
UL, CSA, ASME, CRN
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
73 Inches
Product Width
48 Inches
Product Height
80 Inches
Power Type
Electric
UPC
815002013640
Product Specs
+−
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
62
Amp Draw
18 Amp @ 208/230V - 9 Amp @ 460V
Engine
HP
7.5
Engine Low Oil Shut-off
Yes
Pump
CFM
29
CFM Rated @
100 PSI
Max PSI
107 PSI
Pump Type
Rotary
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
80 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Weight
1070 Pounds
Certification
UL, CSA, ASME, CRN
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
73 Inches
Product Width
48 Inches
Product Height
80 Inches
Power Type
Electric
UPC
815002013640
