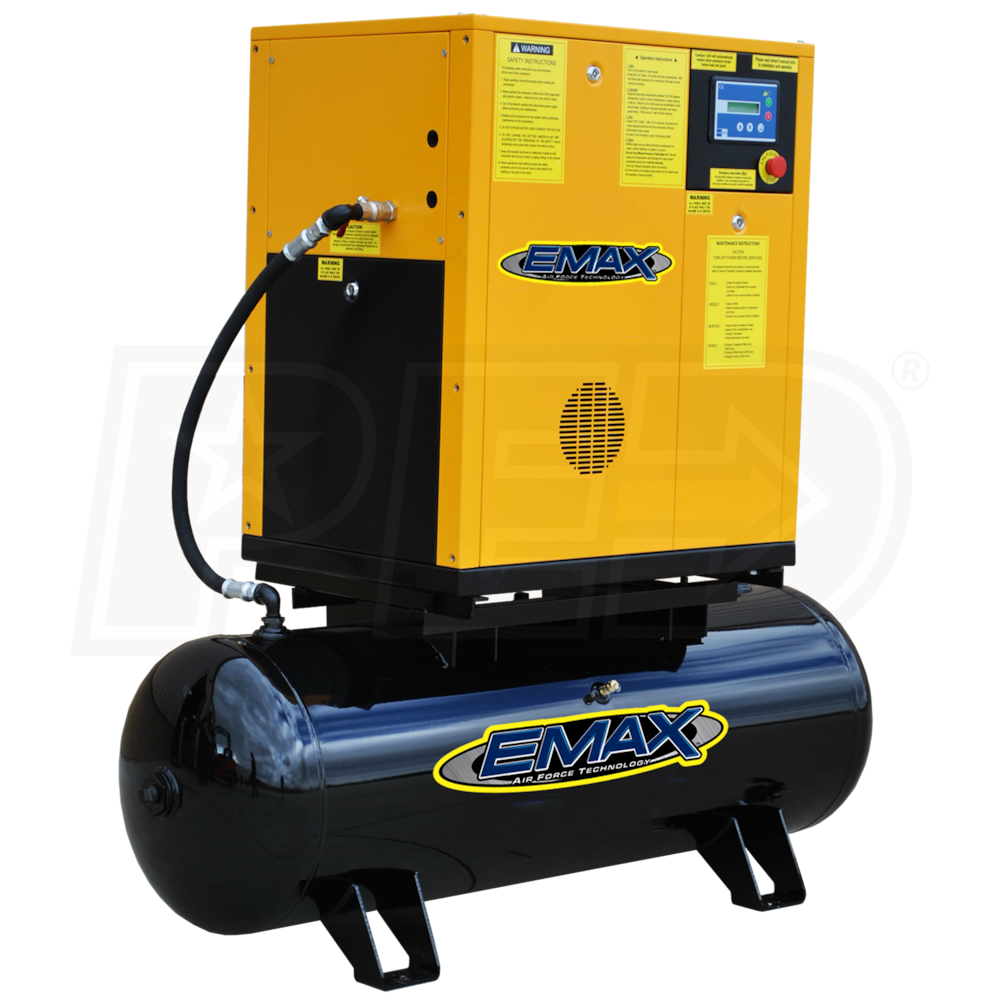

EMAX 10-HP 120-Gallon Rotary Screw Air Compressor (208/230/460V 3-Phase)

EMAX 10-HP 120-Gallon Rotary Screw Air Compressor (208/230/460V 3-Phase)
Our Price
Compare Prices
Shipping Info
Model: ERS0101203
(Based on expert analysis, manufacturer ratings and customer reviews)
$6,729.99
Factory-Direct
Ships in 3-4 Weeks
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Free Shipping$6,729.99Buy Now
$6,729.99Visit Site
Factory-Direct
Ships in 3-4 Weeks
Free Freight
Free Freight
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Rotary Screw 3-Phase
CFM
45
CFM Rated @ 100 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
45 CFM Rated @ 100 PSI
Tank Size
120 Gallons
Features
Features
  • Too Large For Liftgate Service, Shipping Dock Or Forklift Required
  • Ultra-Quiet Rotary Screw Operation
  • Delivers enhanced reliability with ultimate energy efficiency
  • Continuous 100% duty cycle operates at normal conversation level
  • Drive-Tek
  • Reduces energy demand up to 33% for huge savings
  • Highest quality components with professional workmanship
  • Standard Y-Delta Soft Start Motor
  • Runs at 1750 RPM for less wear and tear
  • Reduces energy demand and amp draw on startup
  • Recommended Breaker: 40 Amp @ 208/230V - 20 Amp @ 460V
  • Precision Engineered Rotary Air End
  • Highly efficient design provides maximum discharge
  • German built with 10-year warranty & 70,000 running hours
  • Heavy-Duty Sound Attenuated Cabinet
  • Offers lower decibel rating with easy access to critical components
  • 120-gallon ASME air tank receiver with timed automatic drain valve

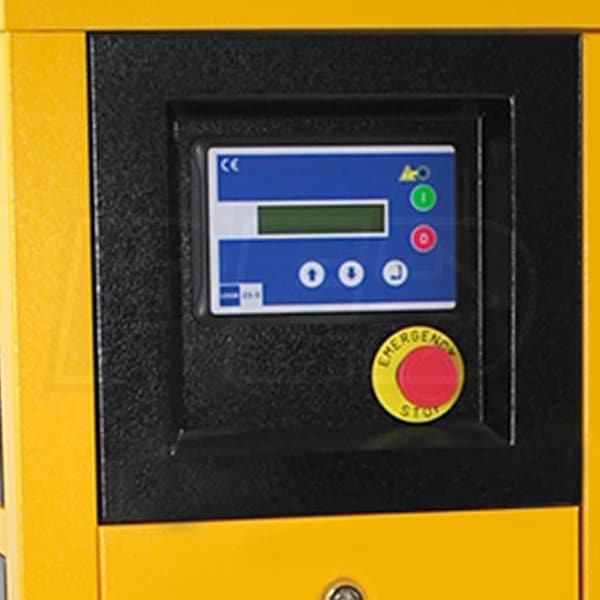

  • Advanced Programmable Logistic Controller
  • Easy to use remote with timed start/stop and low oil shutdown
  • Monitors maintenance, temperature, oil level, filtration, hours and much more
  • Spin-Tek
  • Unique tool-less oil filters & air/oil separators
  • Genuine Mann filters reduce air end contamination & harmful elements
  • Best Warranty In The Industry
  • 10-year limited warranty on rotary air end & motor with purchase of Maintenance Service Kit - all other components are 5-years, including PLC
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Amp Draw
24 Amp @ 208/230V- 12 Amp @ 460V
dBA
64
Engine
HP
10
Engine Low Oil Shut-off
Yes
Pump
CFM
45
CFM Rated @
100 PSI
Pump Type
Rotary
Max PSI
145 PSI
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Certification
UL, CSA, ASME, CRN
Weight
1195 Pounds
Product Length
80 Inches
Product Width
48 Inches
Product Height
80 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Power Type
Electric
UPC
815002013695
Grade
Commercial
Style
Rotary Screw 3-Phase
CFM
45
CFM Rated @ 100 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
45 CFM Rated @ 100 PSI
Tank Size
120 Gallons
Features
Features
  • Too Large For Liftgate Service, Shipping Dock Or Forklift Required
  • Ultra-Quiet Rotary Screw Operation
  • Delivers enhanced reliability with ultimate energy efficiency
  • Continuous 100% duty cycle operates at normal conversation level
  • Drive-Tek
  • Reduces energy demand up to 33% for huge savings
  • Highest quality components with professional workmanship
  • Standard Y-Delta Soft Start Motor
  • Runs at 1750 RPM for less wear and tear
  • Reduces energy demand and amp draw on startup
  • Recommended Breaker: 40 Amp @ 208/230V - 20 Amp @ 460V
  • Precision Engineered Rotary Air End
  • Highly efficient design provides maximum discharge
  • German built with 10-year warranty & 70,000 running hours
  • Heavy-Duty Sound Attenuated Cabinet
  • Offers lower decibel rating with easy access to critical components
  • 120-gallon ASME air tank receiver with timed automatic drain valve
  • Advanced Programmable Logistic Controller
  • Easy to use remote with timed start/stop and low oil shutdown
  • Monitors maintenance, temperature, oil level, filtration, hours and much more
  • Spin-Tek
  • Unique tool-less oil filters & air/oil separators
  • Genuine Mann filters reduce air end contamination & harmful elements
  • Best Warranty In The Industry
  • 10-year limited warranty on rotary air end & motor with purchase of Maintenance Service Kit - all other components are 5-years, including PLC
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Amp Draw
24 Amp @ 208/230V- 12 Amp @ 460V
dBA
64
Engine
HP
10
Engine Low Oil Shut-off
Yes
Pump
CFM
45
CFM Rated @
100 PSI
Pump Type
Rotary
Max PSI
145 PSI
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Certification
UL, CSA, ASME, CRN
Weight
1195 Pounds
Product Length
80 Inches
Product Width
48 Inches
Product Height
80 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Power Type
Electric
UPC
815002013695
Product Specs
+
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Amp Draw
24 Amp @ 208/230V- 12 Amp @ 460V
dBA
64
Engine
HP
10
Engine Low Oil Shut-off
Yes
Pump
CFM
45
CFM Rated @
100 PSI
Pump Type
Rotary
Max PSI
145 PSI
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Certification
UL, CSA, ASME, CRN
Weight
1195 Pounds
Product Length
80 Inches
Product Width
48 Inches
Product Height
80 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Power Type
Electric
UPC
815002013695
