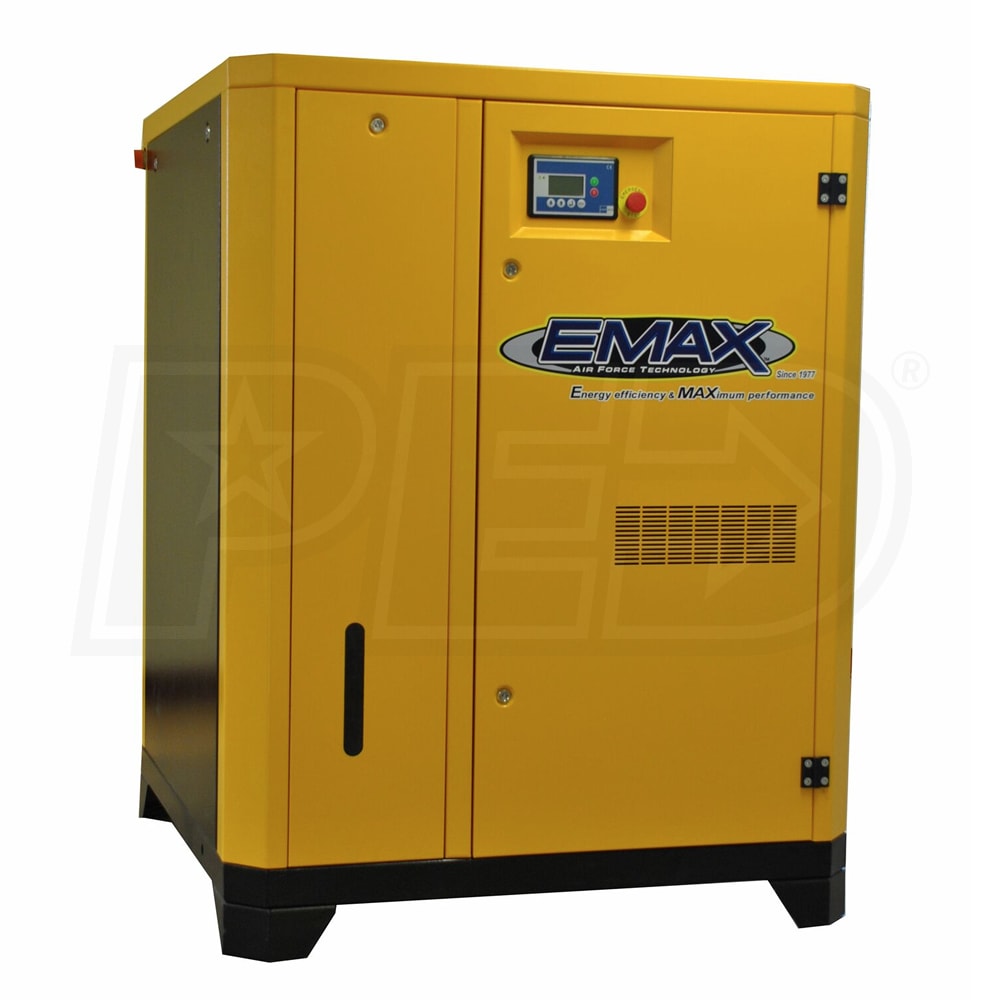

EMAX 50-HP Tankless Rotary Screw Air Compressor (208/230/460V 3-Phase)

EMAX 50-HP Tankless Rotary Screw Air Compressor (208/230/460V 3-Phase)
Our Price
Compare Prices
Shipping Info
Model: ERS0500003D
$15,000.00

Factory-Direct
Ships in 7-14 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Factory-Direct
Ships in 7-14 Business Days
Free Freight
Free Freight
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Grade
Commercial
Style
Rotary Screw 3-Phase
CFM
235
CFM Rated @ 100 PSI
Tank Size
0
Gallons
Grade
Commercial
CFM
235 CFM Rated @ 100 PSI
Tank Size
0 Gallons
Features
Features
  • Too Large For Liftgate Service, Shipping Dock Or Forklift Required
  • Ultra-Quiet Rotary Screw Operation
  • Delivers enhanced reliability with ultimate energy efficiency
  • Drive-Tek reduces energy demand up to 33% for huge savings
  • Continuous 100% duty cycle operates at normal conversation level

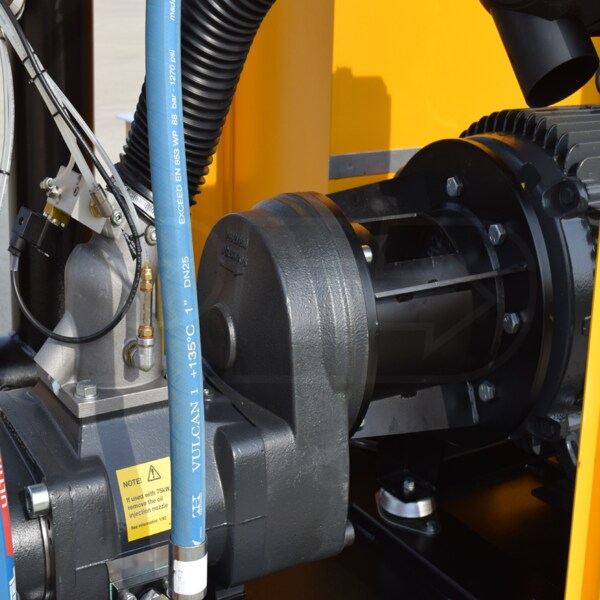

  • Premium Industrial TEFC Direct Drive Motor
  • Runs at 1750 RPM for less wear and tear
  • No belt maintenance & longer bearing life makes it worry free

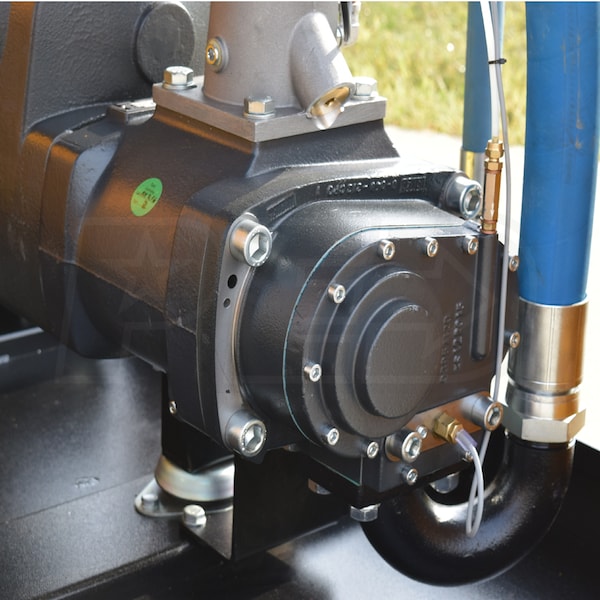

  • Precision Engineered Rotary Air End
  • Highly efficient design provides maximum discharge
  • German built with 10-year warranty & 70,000 running hours
  • Standard Y-Delta Soft Start
  • Reduces energy demand and amp draw on startup
  • Creates less heat to increase compressors lifetime
  • Recommended Breaker: 160 Amp @ 208/230V - 80 Amp @ 460V

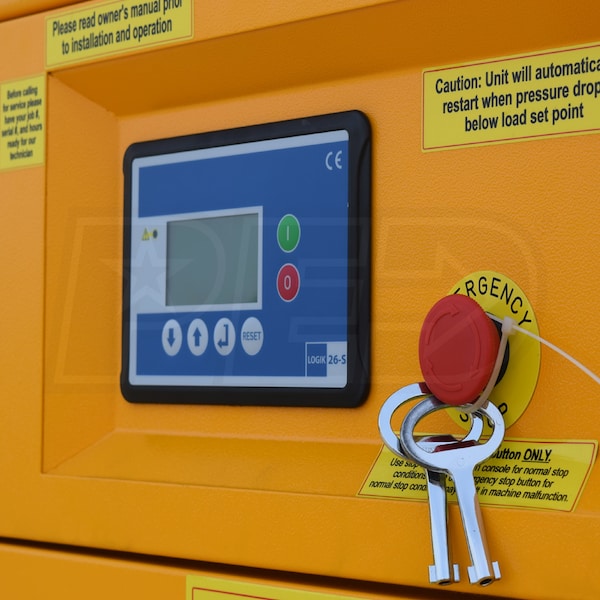

  • Advanced Programmable Logistic Controller
  • Easy to use remote with timed start/stop and low oil shutdown
  • Monitors maintenance, temperature, oil level, filtration, hours and much more

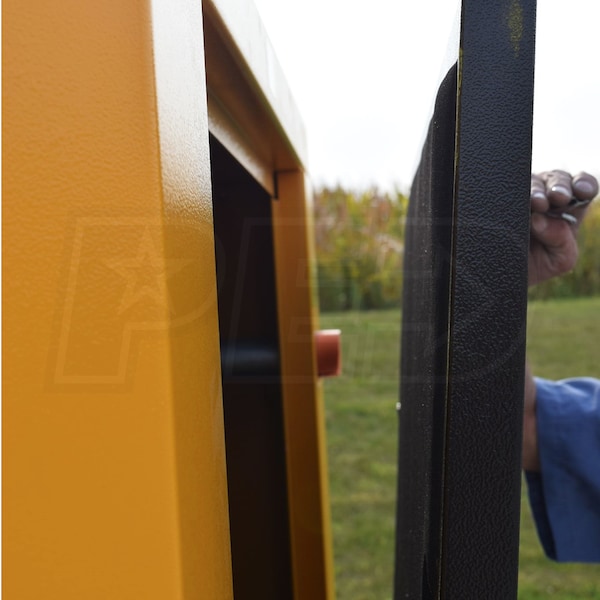

  • Heavy-Duty Sound Attenuated Cabinet
  • Offers lower decibel rating with easy access to critical components
  • Designed for use with stationary air receiver (Not Included)
  • Air receivers can be purchased separately to meet your specific needs
  • Spin-Tek

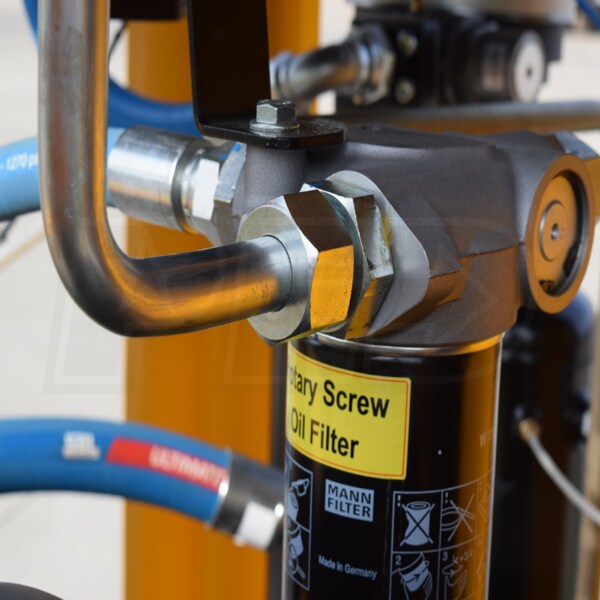

  • Unique tool-less oil filters & air/oil separators
  • Genuine Mann filters reduce air end contamination & harmful elements
  • Best Warranty In The Industry
  • SERVICEKIT029 Maintenance Kit required to validate warranty coverage
  • 10-year limited warranty on rotary air end & motor with purchase of Maintenance Service Kit - all other components are 5-years, including PLC
Specifications
Engine
HP
50
Engine Low Oil Shut-off
Yes
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
74
Amp Draw
120 Amp @ 208/230V- 60 Amp @ 460V
Pump
CFM
235
CFM Rated @
100 PSI
Max PSI
145 PSI
Pump Type
Rotary
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1-1/4 Inch
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Weight
2120 Pounds
Certification
UL, CSA
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
53 Inches
Product Width
55 Inches
Product Height
66 Inches
Power Type
Electric
UPC
815002014647
Grade
Commercial
Style
Rotary Screw 3-Phase
CFM
235
CFM Rated @ 100 PSI
Tank Size
0
Gallons
Grade
Commercial
CFM
235 CFM Rated @ 100 PSI
Tank Size
0 Gallons
Features
Features
  • Too Large For Liftgate Service, Shipping Dock Or Forklift Required
  • Ultra-Quiet Rotary Screw Operation
  • Delivers enhanced reliability with ultimate energy efficiency
  • Drive-Tek reduces energy demand up to 33% for huge savings
  • Continuous 100% duty cycle operates at normal conversation level
  • Premium Industrial TEFC Direct Drive Motor
  • Runs at 1750 RPM for less wear and tear
  • No belt maintenance & longer bearing life makes it worry free
  • Precision Engineered Rotary Air End
  • Highly efficient design provides maximum discharge
  • German built with 10-year warranty & 70,000 running hours
  • Standard Y-Delta Soft Start
  • Reduces energy demand and amp draw on startup
  • Creates less heat to increase compressors lifetime
  • Recommended Breaker: 160 Amp @ 208/230V - 80 Amp @ 460V
  • Advanced Programmable Logistic Controller
  • Easy to use remote with timed start/stop and low oil shutdown
  • Monitors maintenance, temperature, oil level, filtration, hours and much more
  • Heavy-Duty Sound Attenuated Cabinet
  • Offers lower decibel rating with easy access to critical components
  • Designed for use with stationary air receiver (Not Included)
  • Air receivers can be purchased separately to meet your specific needs
  • Spin-Tek
  • Unique tool-less oil filters & air/oil separators
  • Genuine Mann filters reduce air end contamination & harmful elements
  • Best Warranty In The Industry
  • SERVICEKIT029 Maintenance Kit required to validate warranty coverage
  • 10-year limited warranty on rotary air end & motor with purchase of Maintenance Service Kit - all other components are 5-years, including PLC
Specifications
Engine
HP
50
Engine Low Oil Shut-off
Yes
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
74
Amp Draw
120 Amp @ 208/230V- 60 Amp @ 460V
Pump
CFM
235
CFM Rated @
100 PSI
Max PSI
145 PSI
Pump Type
Rotary
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1-1/4 Inch
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Weight
2120 Pounds
Certification
UL, CSA
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
53 Inches
Product Width
55 Inches
Product Height
66 Inches
Power Type
Electric
UPC
815002014647
Product Specs
+−
Specifications
Engine
HP
50
Engine Low Oil Shut-off
Yes
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
74
Amp Draw
120 Amp @ 208/230V- 60 Amp @ 460V
Pump
CFM
235
CFM Rated @
100 PSI
Max PSI
145 PSI
Pump Type
Rotary
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1-1/4 Inch
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Weight
2120 Pounds
Certification
UL, CSA
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
53 Inches
Product Width
55 Inches
Product Height
66 Inches
Power Type
Electric
UPC
815002014647
