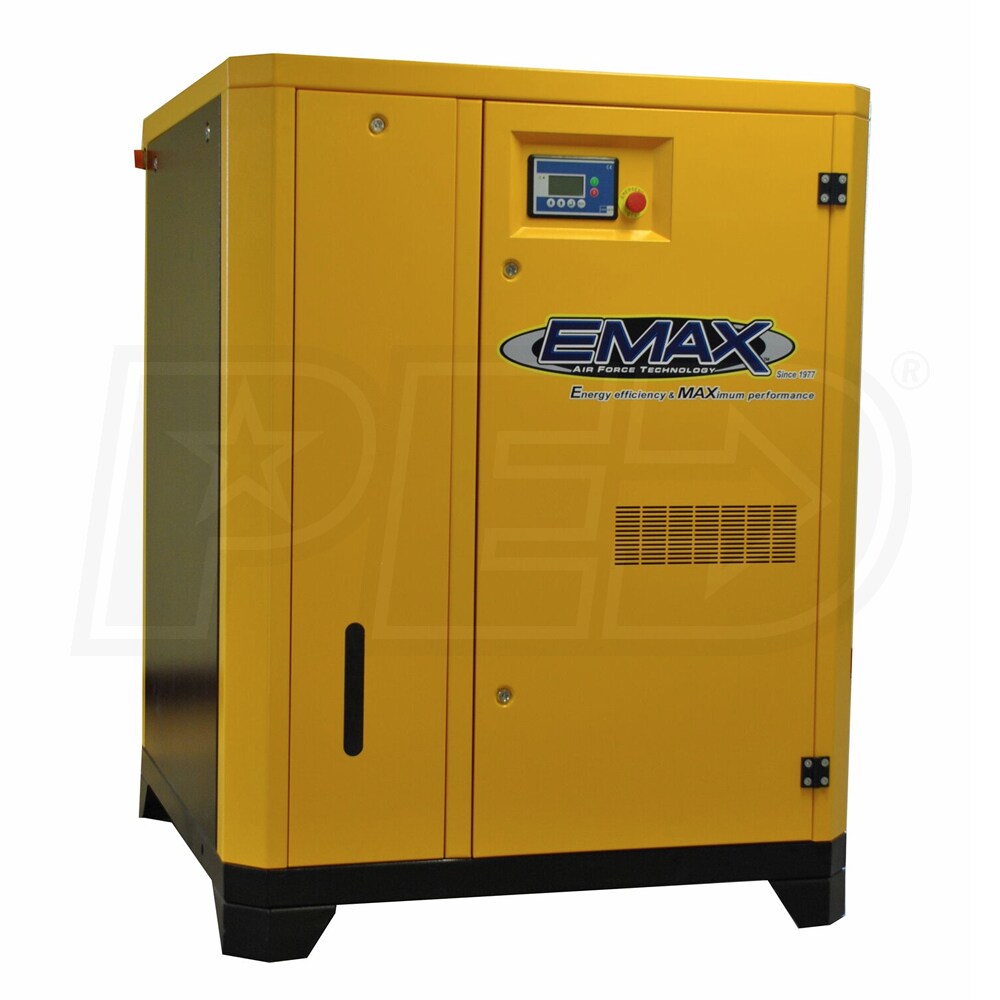

EMAX 60-HP Tankless Rotary Screw Air Compressor (208-230/460V 3-Phase)

Model:

ERS0600003D

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
EMAX  60-HP Tankless Rotary Screw Air Compressor  (208-230/460V 3-Phase)
EMAX 60-HP Tankless Rotary Screw Air Compressor (208-230/460V 3-Phase)
Model: ERS0600003D
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208-230/460 Volt AC

Phase

3-Phase

CFM

259

Tank Size

0

  • Too Large For Liftgate Service, Shipping Dock Or Forklift Required
  • Ultra-Quiet Rotary Screw Operation
  • Delivers enhanced reliability with ultimate energy efficiency
  • Drive-Tek reduces energy demand up to 33% for huge savings
  • Continuous 100% duty cycle operates at normal conversation level

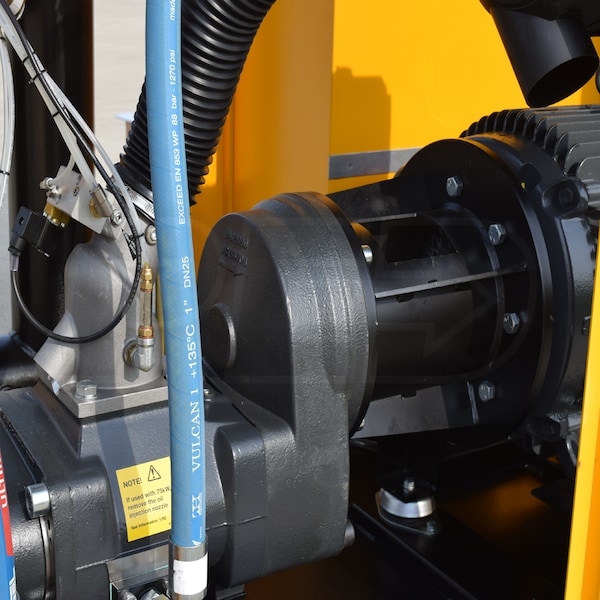

  • Premium Industrial TEFC Direct Drive Motor
  • Runs at 1750 RPM for less wear and tear
  • No belt maintenance & longer bearing life makes it worry free
  • Standard Y-Delta Soft Start
  • Reduces energy demand and amp draw on startup
  • Creates less heat to increase compressors lifetime
  • Recommended Breaker: 200 Amp @ 208/230V - 100 Amp @ 460V

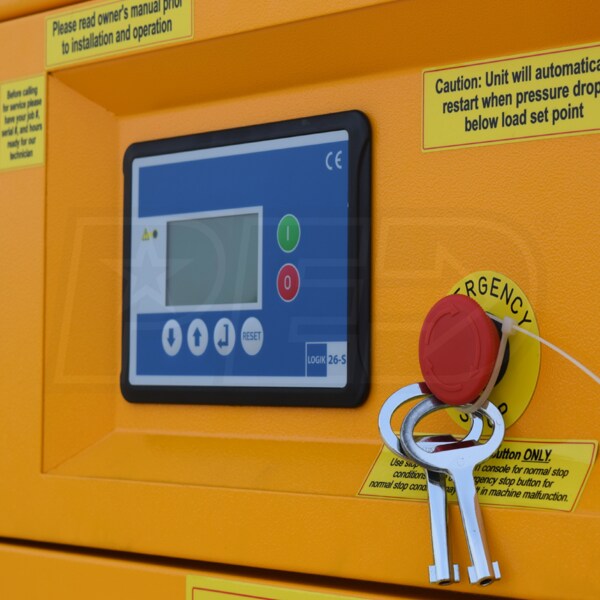

  • Advanced Programmable Logistic Controller
  • Easy to use remote with timed start/stop and low oil shutdown
  • Monitors maintenance, temperature, oil level, filtration, hours and much more

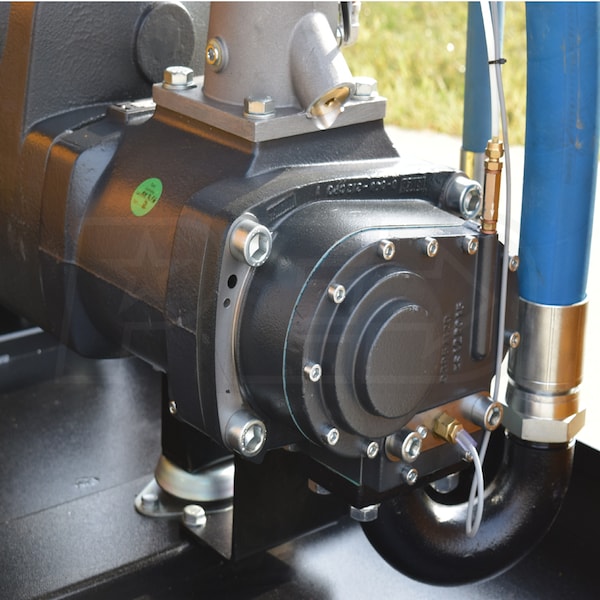

  • Precision Engineered Rotary Air End
  • Highly efficient design provides maximum discharge
  • German built with 10-year warranty & 70,000 running hours

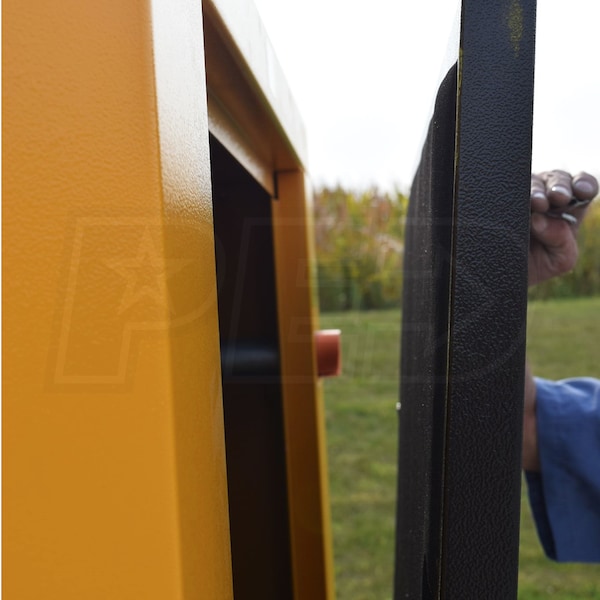

  • Heavy-Duty Sound Attenuated Cabinet
  • Offers lower decibel rating with easy access to critical components
  • Designed for use with stationary air receiver (Not Included)
  • Air receivers can be purchased separately to meet your specific needs

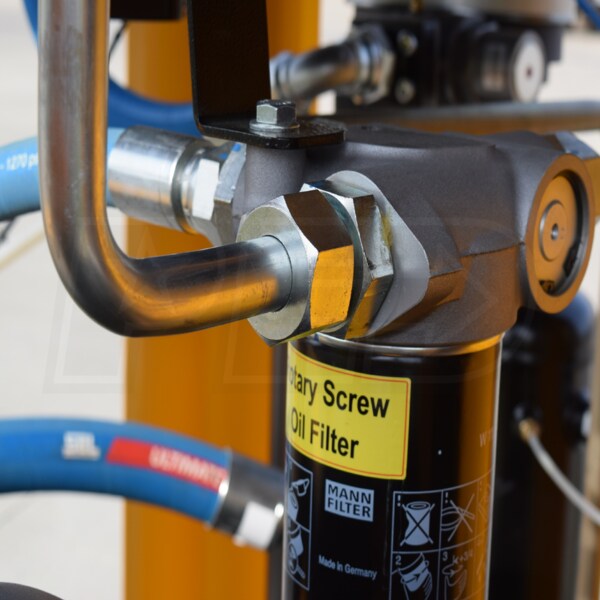

  • Spin-Tek
  • Unique tool-less oil filters & air/oil separators
  • Genuine Mann filters reduce air end contamination & harmful elements
  • Best Warranty In The Industry
  • SERVICEKIT029 Maintenance Kit required to validate warranty coverage
  • 10-year limited warranty on rotary air end & motor with purchase of Maintenance Service Kit - all other components are 5-years, including PLC
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

ERS0600003D
specs product image PID-85713
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
76
Amp Draw
144 Amp @ 208/230V- 72 Amp @ 460V
Engine
HP
60
Engine Low Oil Shut-off
Yes
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
259
CFM Rated @
100 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
145 PSI
Pump Type
Rotary
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1-1/4 Inch
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
2120 Pounds
Certification
UL, CSA
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
53 Inches
Product Width
55 Inches
Product Height
66 Inches
Power Type
Electric
UPC
815002014654
