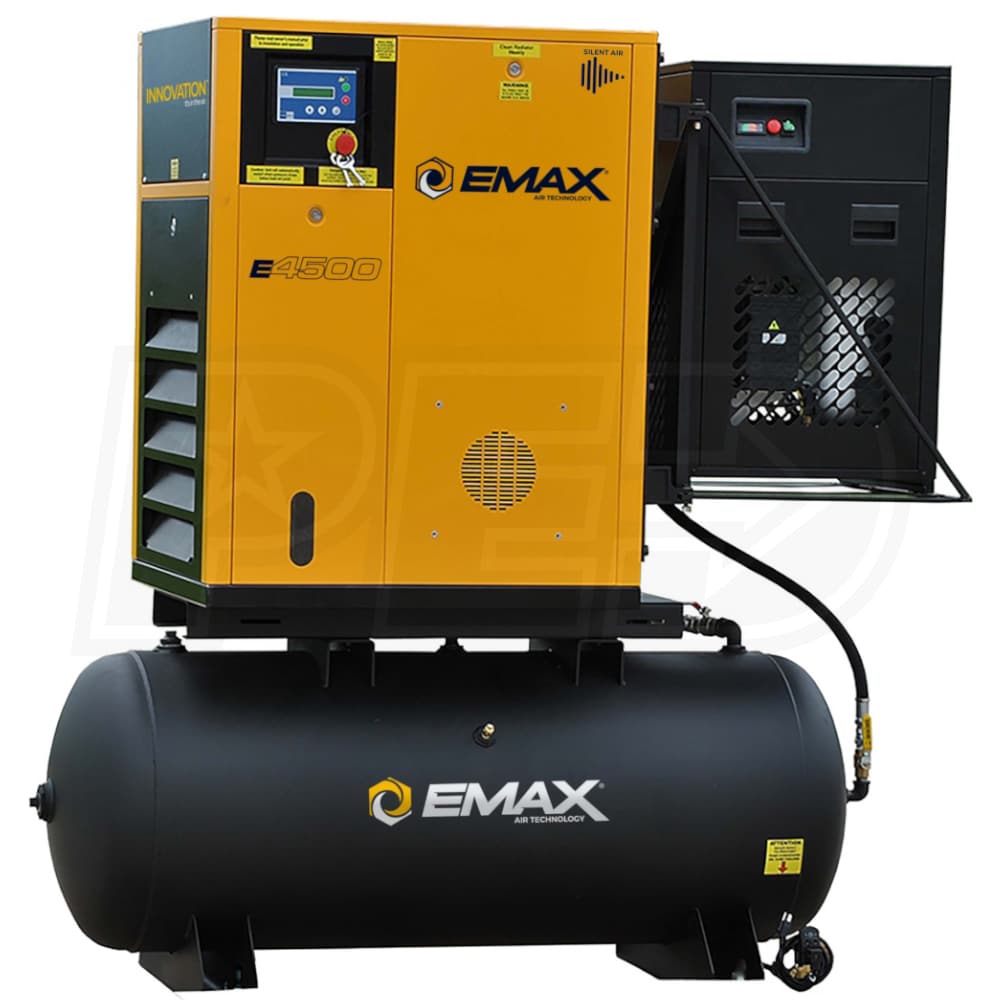

EMAX 20-HP 120-Gallon Rotary Screw Air Compressor Fully Packaged w/ Dryer (230V 3-Phase)
Model: ERSK200003
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
85
CFM Rated @ 100 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
85 CFM Rated @ 100 PSI
Tank Size
120 Gallons
Features
Features
- This Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
- Rotary Screw Air System
- 208/230V 3-phase drives 1750 RPM motor
- Drive-Tek
- Reduces energy demand up to 33%; easy-access filters & separators
- Standard Y/Delta Soft Start Motor
- Provides reduced energy demand & amp draw on start up
- PLC Controller - Advanced Maintenance Intelligence Monitor
- Monitors maintenance, temperature, oil level, filtration & hours
- Also monitors remote start/stop & automatic tank drain
- Precision Engineered Rotary Air End
- Highly efficient design provides maximum discharge
- Heavy-Duty Sound Attenuated Cabinet
- Provides lower 69 dBA operation than a typical rotary screw
- EMAX EDRCF1150115 115 CFM Refrigerated Air Dryer w/ Inner Cooler (115V)
- Air is filtered of all solid particles 0.01 micron and larger
- Energy efficient with coalescing filter built in auto drain
- Keep water, oil, and dirt out of your compressed air; drier air prolongs the life of your machinery & tools
- Coalescing 65 CFM Filter Included With 120 Gallon ASME Air Tank
- Removes oil, water & particles to provide cleaner air
- 10 Year/ 5 Year/ 2 Year Limited Factory Warranty
- 10- air end pump w/service kit; 5- cabinet & motor; 2- electrical
- Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force
- SERVICEKIT003 Maintenance Kit required to validate warranty coverage
Specifications
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
20
Pump
CFM
85
CFM Rated @
100 PSI
Max PSI
150 PSI
Pump Type
Rotary
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
1560 Pounds
Certification
UL
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
38 Inches
Product Width
83 Inches
Product Height
87 Inches
Power Type
Electric
UPC
815002011493
Grade
Style
CFM
85
CFM Rated @ 100 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
85 CFM Rated @ 100 PSI
Tank Size
120 Gallons
Features
Features
- This Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
- Rotary Screw Air System
- 208/230V 3-phase drives 1750 RPM motor
- Drive-Tek
- Reduces energy demand up to 33%; easy-access filters & separators
- Standard Y/Delta Soft Start Motor
- Provides reduced energy demand & amp draw on start up
- PLC Controller - Advanced Maintenance Intelligence Monitor
- Monitors maintenance, temperature, oil level, filtration & hours
- Also monitors remote start/stop & automatic tank drain
- Precision Engineered Rotary Air End
- Highly efficient design provides maximum discharge
- Heavy-Duty Sound Attenuated Cabinet
- Provides lower 69 dBA operation than a typical rotary screw
- EMAX EDRCF1150115 115 CFM Refrigerated Air Dryer w/ Inner Cooler (115V)
- Air is filtered of all solid particles 0.01 micron and larger
- Energy efficient with coalescing filter built in auto drain
- Keep water, oil, and dirt out of your compressed air; drier air prolongs the life of your machinery & tools
- Coalescing 65 CFM Filter Included With 120 Gallon ASME Air Tank
- Removes oil, water & particles to provide cleaner air
- 10 Year/ 5 Year/ 2 Year Limited Factory Warranty
- 10- air end pump w/service kit; 5- cabinet & motor; 2- electrical
- Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force
- SERVICEKIT003 Maintenance Kit required to validate warranty coverage
Specifications
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
20
Pump
CFM
85
CFM Rated @
100 PSI
Max PSI
150 PSI
Pump Type
Rotary
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
1560 Pounds
Certification
UL
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
38 Inches
Product Width
83 Inches
Product Height
87 Inches
Power Type
Electric
UPC
815002011493
Product Specs
+−
Specifications
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
20
Pump
CFM
85
CFM Rated @
100 PSI
Max PSI
150 PSI
Pump Type
Rotary
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
1560 Pounds
Certification
UL
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
38 Inches
Product Width
83 Inches
Product Height
87 Inches
Power Type
Electric
UPC
815002011493
