EMAX 40-HP VSD Tankless Rotary Screw Air Compressor w/ Variable Speed Drive (208/230/460V 3-Phase)

EMAX 40-HP VSD Tankless Rotary Screw Air Compressor w/ Variable Speed Drive (208/230/460V 3-Phase)
Model: ERV0400003
$17,990.99
Factory-Direct
Ships in 3-4 Weeks
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Factory-Direct
Ships in 3-4 Weeks
Free Freight
Free Freight
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Rotary Screw 3-Phase
CFM
188
CFM Rated @ 100 PSI
Tank Size
0
Gallons
Grade
Commercial
CFM
188 CFM Rated @ 100 PSI
Tank Size
0 Gallons
Features
Features
  • This Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
  • Drive-Tek
  • Variable Speed Drive reduces energy demand up to 33%
  • Standard Y-Delta Soft Start Motor
  • Reduced energy demand & amp draw on start up
  • PLC Controller- Advanced Maintenance Intelligence Monitor
  • Monitors maintenance, temperature, oil level, filtration & hours
  • Allows convenient remote start/stop
  • Spin-Tek
  • Unique easy access oil filters & air/oil separators
  • Requires no tools to remove or install- saving time & money
  • Precision Engineered Rotary Air End
  • Highly efficient design provides maximum discharge
  • Rated up to 188 CFM at 100 PSI (145 PSI maximum)
  • Heavy-Duty Sound Attenuated Cabinet
  • Provides lower decibel operation than a typical rotary screw unit
  • Rated at 79 dBA; 1-1/4" NPT air outlet
  • Designed For Use With Stationary Air Receiver (Not Included)
  • Air receivers can be purchased separately to meet your specific needs
  • 10 Year Limited Factory Pump Warranty (See Manual For Details)
  • 5 year factory warranty on cabinet & motor; 2 years on rest of unit
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
40
Pump
CFM
188
CFM Rated @
100 PSI
Pump Type
Rotary
Max PSI
145 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1-1/4 Inch
Electronic Drain Valve
No
Accessories
Air Dryer
No
Overview
Certification
UL/CSA/ETL/ASME
Weight
1900 Pounds
Product Length
54 Inches
Product Width
51 Inches
Product Height
65 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Power Type
Electric
UPC
815002010557
Grade
Commercial
Style
Rotary Screw 3-Phase
CFM
188
CFM Rated @ 100 PSI
Tank Size
0
Gallons
Grade
Commercial
CFM
188 CFM Rated @ 100 PSI
Tank Size
0 Gallons
Features
Features
  • This Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
  • Drive-Tek
  • Variable Speed Drive reduces energy demand up to 33%
  • Standard Y-Delta Soft Start Motor
  • Reduced energy demand & amp draw on start up
  • PLC Controller- Advanced Maintenance Intelligence Monitor
  • Monitors maintenance, temperature, oil level, filtration & hours
  • Allows convenient remote start/stop
  • Spin-Tek
  • Unique easy access oil filters & air/oil separators
  • Requires no tools to remove or install- saving time & money
  • Precision Engineered Rotary Air End
  • Highly efficient design provides maximum discharge
  • Rated up to 188 CFM at 100 PSI (145 PSI maximum)
  • Heavy-Duty Sound Attenuated Cabinet
  • Provides lower decibel operation than a typical rotary screw unit
  • Rated at 79 dBA; 1-1/4" NPT air outlet
  • Designed For Use With Stationary Air Receiver (Not Included)
  • Air receivers can be purchased separately to meet your specific needs
  • 10 Year Limited Factory Pump Warranty (See Manual For Details)
  • 5 year factory warranty on cabinet & motor; 2 years on rest of unit
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
40
Pump
CFM
188
CFM Rated @
100 PSI
Pump Type
Rotary
Max PSI
145 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1-1/4 Inch
Electronic Drain Valve
No
Accessories
Air Dryer
No
Overview
Certification
UL/CSA/ETL/ASME
Weight
1900 Pounds
Product Length
54 Inches
Product Width
51 Inches
Product Height
65 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Power Type
Electric
UPC
815002010557
Product Specs
+
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
40
Pump
CFM
188
CFM Rated @
100 PSI
Pump Type
Rotary
Max PSI
145 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1-1/4 Inch
Electronic Drain Valve
No
Accessories
Air Dryer
No
Overview
Certification
UL/CSA/ETL/ASME
Weight
1900 Pounds
Product Length
54 Inches
Product Width
51 Inches
Product Height
65 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Power Type
Electric
UPC
815002010557
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
+
Be the first to ask a question.
Recommended Accessories
+
Expert Recommended Accessories Hand Picked By Our Expert Gabrielle
icon-social-fb1
Required Accessories Add All Required
Optional Accessories
How-To Articles
+
Manuals
+


×

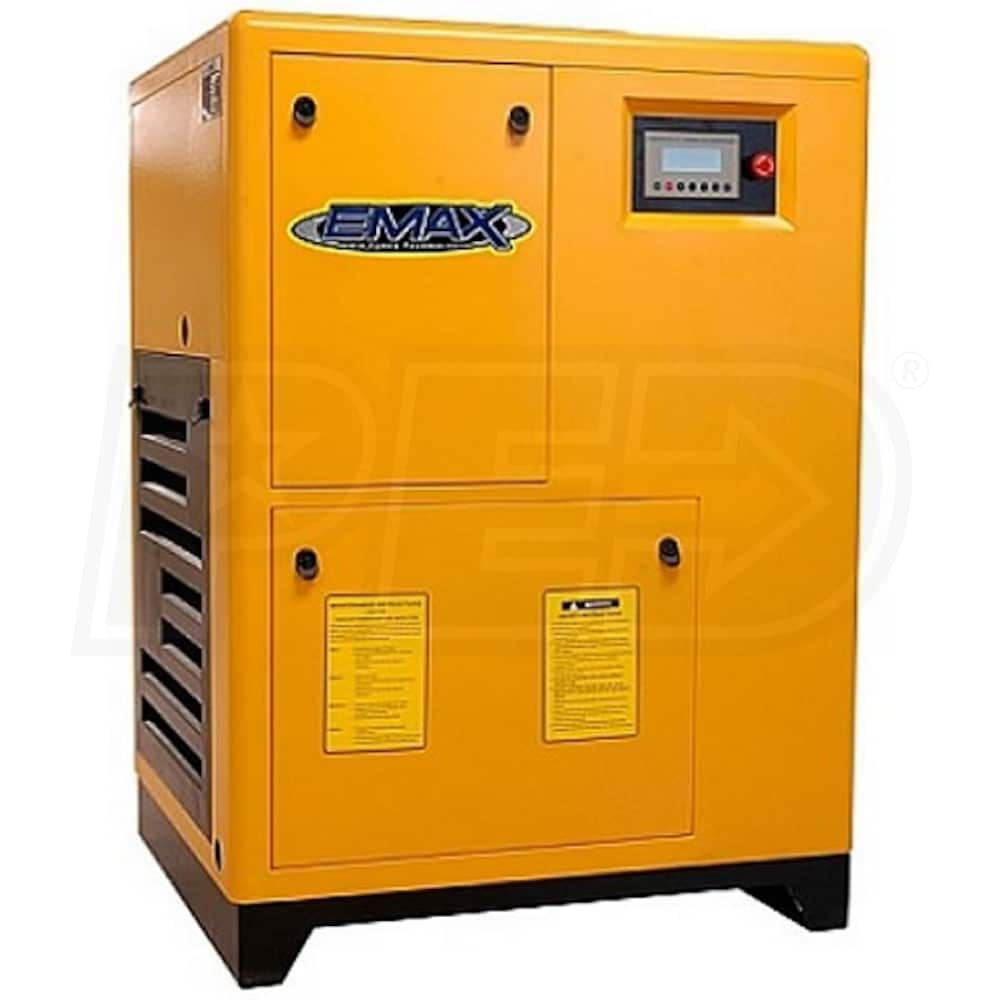

EMAX 40-HP VSD Tankless Rotary Screw Air Compressor w/ Variable Speed Drive (208/230/460V 3-Phase)
