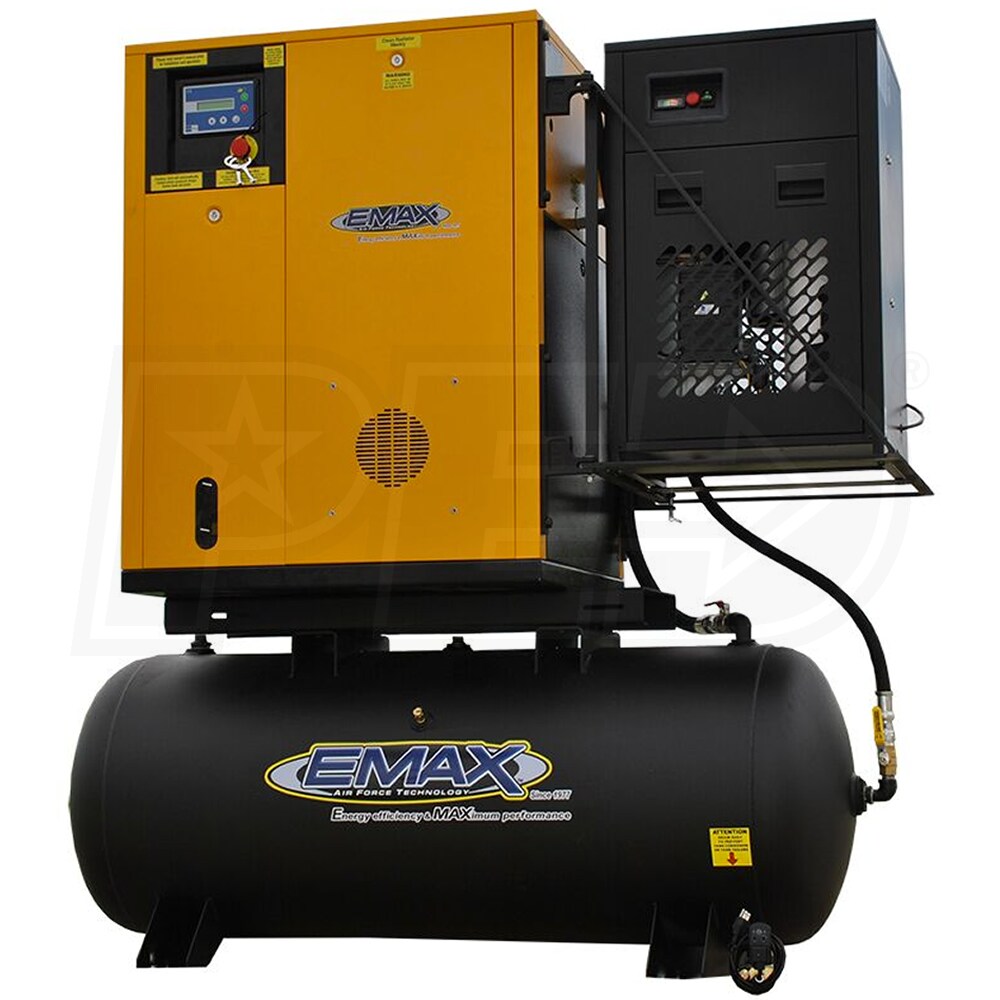

EMAX 20-HP 120-Gallon Variable Speed Rotary Screw Air Compressor Fully Packaged w/ Dryer (230V 3-Phase)
Model:
ERVK200003
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Joshua, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
208-230 Volt AC
Phase
3-Phase
CFM
85
Tank Size
120
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- This Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
- Variable Speed Rotary Screw Air System
- 208/230V 3-phase power drives 1750 RPM motor
- Saves money; great for industrial/manufacturing applications
- Reduces energy demand up to 33%; easy-access filters & separators
- Standard Y/Delta Soft Start Motor
- Provides reduced energy demand & amp draw on start up
- PLC Controller - Advanced Maintenance Intelligence Monitor
- Monitors maintenance, temperature, oil level, filtration & hours
- Also monitors remote start/stop & automatic tank drain
- Precision Engineered Rotary Air End
- Highly efficient design provides maximum discharge
- Heavy-Duty Sound Attenuated Cabinet
- Provides lower 69 dBA operation than a typical rotary screw
- EMAX EDRCF1150115 115 CFM Refrigerated Air Dryer w/ Inner Cooler (115V)
- Air is filtered of all solid particles 0.01 micron and larger
- Energy efficient with coalescing filter built in auto drain
- Keep water, oil, and dirt out of your compressed air; drier air prolongs the life of your machinery & tools
- Coalescing 65 CFM Filter Included With 120 Gallon ASME Air Tank
- Removes oil, water & particles to provide cleaner air
- 10 Year/ 5 Year/ 2 Year Limited Factory Warranty
- 10- air end pump w/service kit; 5- cabinet & motor; 2- electrical
- Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force
- SERVICEKIT003 Maintenance Kit required to validate warranty coverage
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
ERVK200003
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
20
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
85
CFM Rated @
100 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Pump Type
Rotary
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
1 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
1850 Pounds
Certification
UL
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
83 Inches
Product Width
38 Inches
Product Height
87 Inches
Power Type
Electric
UPC
815002011509
Reviews
(2)
EMAX ERVK200003 Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Joshua, the Air Compressor Expert
How-To Articles
How To Quickly Improve Your Gas Mileage
You don't have to be a rocket scientist to figure out properly inflated tires w...
Rotary Screw Air Compressor Selector
You can't just walk into a store and find the rotary screw air compressor you n...
Air Compressors How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

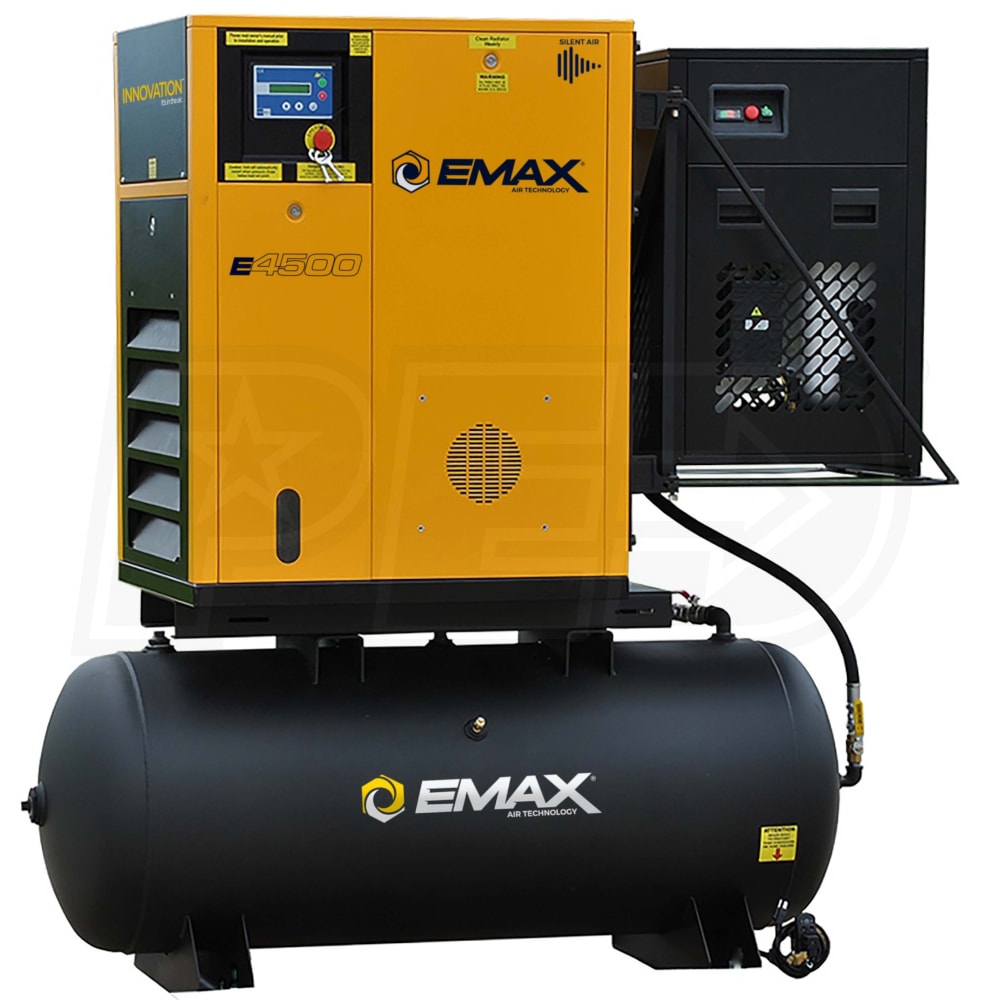

EMAX 20-HP 120-Gallon Variable Speed Rotary Screw Air Compressor Fully Packaged w/ Dryer (230V 3-Phase)
