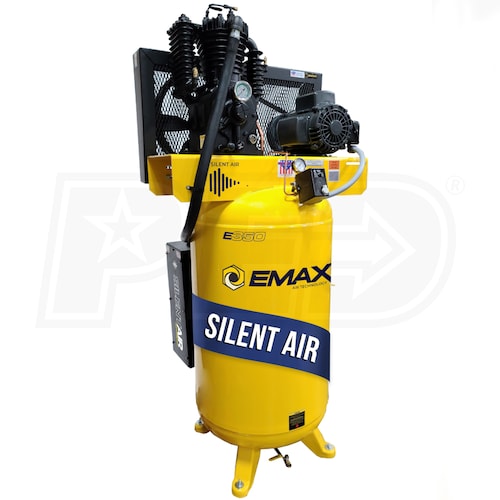

EMAX Industrial Patented Silent Air 5-HP 80-Gallon Two-Stage Air Compressor (208/230V 1-Phase)
Model:
ES05V080I1
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
208-230 Volt AC
Phase
1-Phase
CFM
19
Tank Size
80
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- ***Tanks Color Has Recently Been Updated From Black to Yellow***
- Patented Silent Air Technology
- Piston intake noise is trapped and dissipated within the silencer structure
- Provides a 5 layer filtration ideal for heavy airborne particle work environments
- Reduces dBA readings by up to 35%
- Premium Industrial UL-Rated 1750 RPM Motor
- Low RPM extends motor life; Condor pressure switch & magnetic starter for reliable starts
- 2-Stage, Belt Driven Cast Iron Pump
- Durable & reliable pump produces 17 CFM at 175 PSI, 19 CFM at 100 PSI
- 80 Gallon Air Tank
- ASME rated for safety to 175 PSI, with 3/4" air outlet
- 1 Year Standard, 5 Year Extended, Extended Limited Lifetime Pump Warranty
- Please See Warranty Sheet For More Information
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
ES05V080I1
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
24
Recommended Breaker
40 Amp Breaker
Engine
HP
5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
19
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
620 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
42 Inches
Product Width
34 Inches
Product Height
75 Inches
Power Type
Electric
UPC
815002012698
