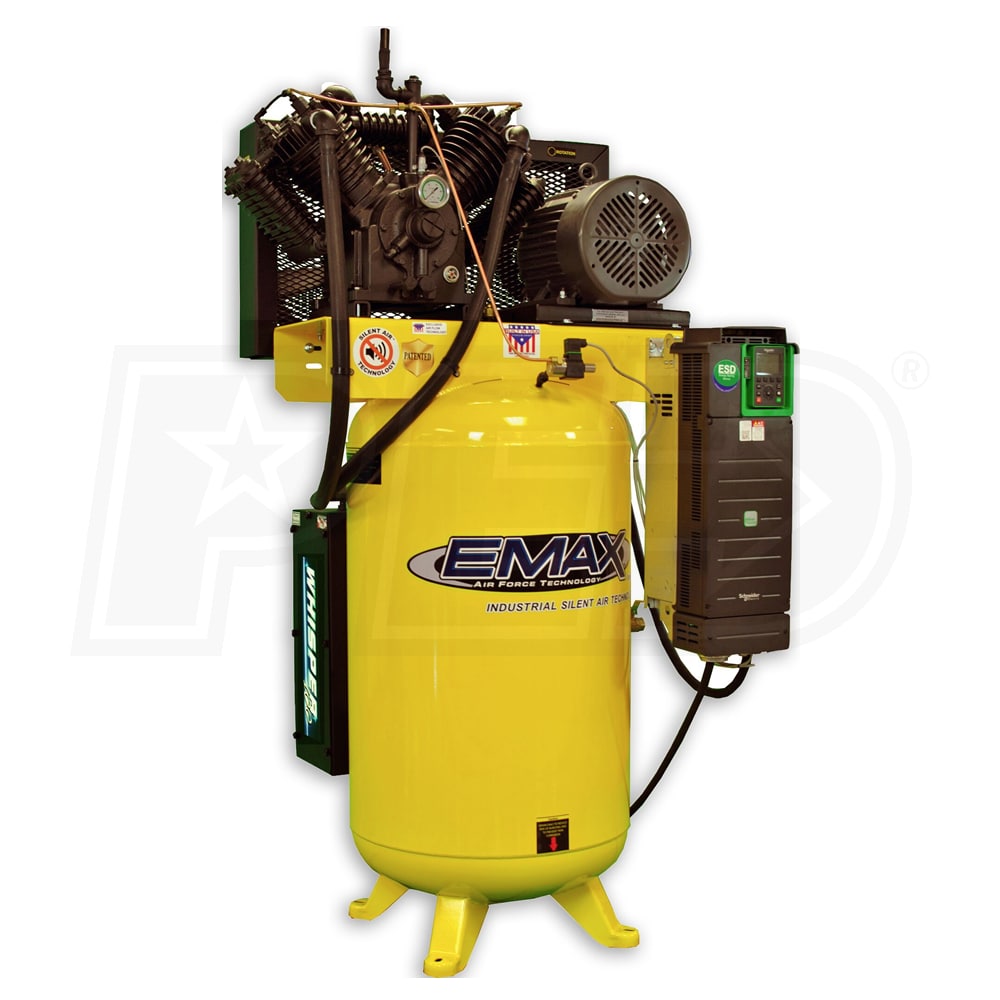

EMAX Industrial Smart Air Silent 7.5-HP 80-Gallon Variable Speed Two-Stage Air Compressor w/ Aftercooler (208/230V 1-Phase & 208/230 3-Phase)
Model: EVR07V080V13
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$6,799.00
Free Shipping
Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $50.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$50.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
1-3 Phase
CFM
31
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
31 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
  • EMAX Smart Air, Energy Savings Air Compressor
  • Saves up to $5,000.00 per year in energy savings
  • 84% energy saving on start-ups & 40% during run cycles
  • At .10 cents per kWh, unit will pay for itself in energy savings in 24 months (assuming a 5-day work week)
  • NEW Variable Frequency Drive (VFD) Technology
  • Allows user to operate in single or 3-phase power with voltages ranging from 208-230V
  • Variable Speed Drive (VSD) Technology
  • Air demand sensor automatically changes pump speed & air output
  • Soft start saves up to 7 times starting energy; 10-yr motor warranty
  • Motor gradually increases RPM, keeping startup AMP's at bare minimum
  • Solid Cast-Iron Pressure Lubricated Pump
  • Lifetime pump warranty w/ purchase of annual maintenance kit
  • 275 to 800 variable speed pump RPM provides longer lifespan
  • Whisper Series Silencer Air System
  • Reduces DB(a) rating by as much as 50%
  • Average DB(a) allows for installation closer to point-of-use
  • Fully Programmable PLC Touch Screen Logic Controller
  • Set date, hours of operation and PSI & RPM ranges
  • Digitally displays kW energy savings while unit is running
  • Programmable timed starts/stops for each day of week
  • Automatic Shutdown, Displayed Maintenance Warnings & Aftercooler
  • Indicates service maintenance for filters and oil
  • Alarm shutdowns for low oil, motor overload, high/low voltage and loss of phase
  • Aftercooler cools air before it goes into the tank to reduce moisture buildup
  • Automatic Electronic Tank Drain w/Dual Timer
  • Eliminates daily maintenance and reduces moisture build-up
  • Protects 80-gallon ASME air tank and air lines from rust
  • Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force
  • FILTERKIT023 Maintenance Kit required to validate warranty coverage
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-3 Phase
dBA
63
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
31
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
758 Pounds
Certification
UL,CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
38 Inches
Product Width
42 Inches
Product Height
72 Inches
Power Type
Electric
UPC
815002016696
Grade
Commercial
Style
1-3 Phase
CFM
31
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
31 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
  • EMAX Smart Air, Energy Savings Air Compressor
  • Saves up to $5,000.00 per year in energy savings
  • 84% energy saving on start-ups & 40% during run cycles
  • At .10 cents per kWh, unit will pay for itself in energy savings in 24 months (assuming a 5-day work week)
  • NEW Variable Frequency Drive (VFD) Technology
  • Allows user to operate in single or 3-phase power with voltages ranging from 208-230V
  • Variable Speed Drive (VSD) Technology
  • Air demand sensor automatically changes pump speed & air output
  • Soft start saves up to 7 times starting energy; 10-yr motor warranty
  • Motor gradually increases RPM, keeping startup AMP's at bare minimum
  • Solid Cast-Iron Pressure Lubricated Pump
  • Lifetime pump warranty w/ purchase of annual maintenance kit
  • 275 to 800 variable speed pump RPM provides longer lifespan
  • Whisper Series Silencer Air System
  • Reduces DB(a) rating by as much as 50%
  • Average DB(a) allows for installation closer to point-of-use
  • Fully Programmable PLC Touch Screen Logic Controller
  • Set date, hours of operation and PSI & RPM ranges
  • Digitally displays kW energy savings while unit is running
  • Programmable timed starts/stops for each day of week
  • Automatic Shutdown, Displayed Maintenance Warnings & Aftercooler
  • Indicates service maintenance for filters and oil
  • Alarm shutdowns for low oil, motor overload, high/low voltage and loss of phase
  • Aftercooler cools air before it goes into the tank to reduce moisture buildup
  • Automatic Electronic Tank Drain w/Dual Timer
  • Eliminates daily maintenance and reduces moisture build-up
  • Protects 80-gallon ASME air tank and air lines from rust
  • Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force
  • FILTERKIT023 Maintenance Kit required to validate warranty coverage
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-3 Phase
dBA
63
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
31
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
758 Pounds
Certification
UL,CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
38 Inches
Product Width
42 Inches
Product Height
72 Inches
Power Type
Electric
UPC
815002016696
Product Specs
+
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-3 Phase
dBA
63
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
31
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
758 Pounds
Certification
UL,CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
38 Inches
Product Width
42 Inches
Product Height
72 Inches
Power Type
Electric
UPC
815002016696
