Features
Grade
Commercial
Voltage
208-230 Volt AC
Phase
1-Phase
CFM
24.6
Tank Size
80
- Rugged 2 Stage Compressor With Cast Iron Cylinders
- Run heavy duty tools, or multiple tools at the same time
- "V" Design
- Minimizes vibration, improves cooling, extends compressor life
- Individual & Removable Cylinders
- For smoother, cooler operation & easy maintainence
- Heavy Duty Pressure Switch
- With convenient on/off control
- Metal Air Filters With "Auto Drop" Feature
- Extends compressor life, easy to maintain
- 208/230V Single Phase Motor
- Thermally protected
- Efficient Heat Removal From Pulley Fan
- Promotes cooler running & longer life
- Sturdy Metal Belt Guard
- Protects you and the belt
- 80 Gallon ASME Tank
- Rated to 175 PSIG
- Outlet valve included
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
7180V2-MS
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
30
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
24.6
CFM Rated @
100 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
490 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
35 Inches
Product Width
24 Inches
Product Height
68 Inches
Power Type
Electric
UPC
777589002502
Reviews
(5)
Eagle 7180V2-MS Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Melissa, the Air Compressor Expert
How-To Articles
How to Audit Your Compressed Air System
Let's face it, energy isn't cheap and finding ways to cut energy costs is criti...
How to Pick the Perfect Air Compressor
Too much talk about air compressors can get complicated. Let's make it sim...
Air Compressors How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

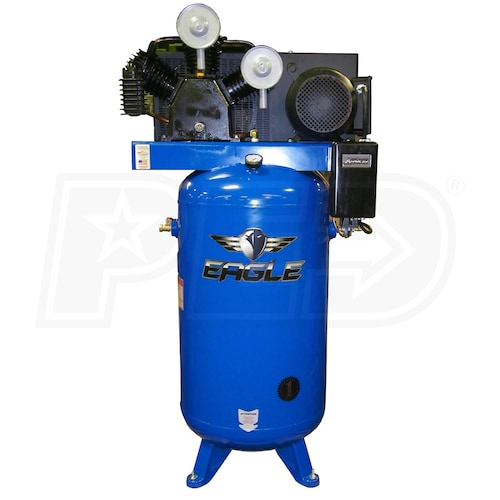

Eagle 7.5-HP 80-Gallon Two-Stage Air Compressor (208-230V 1-Phase)

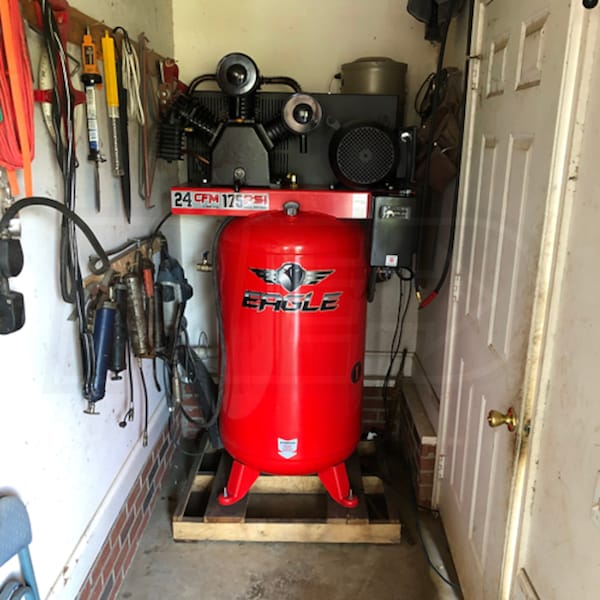

Customer Review Images
