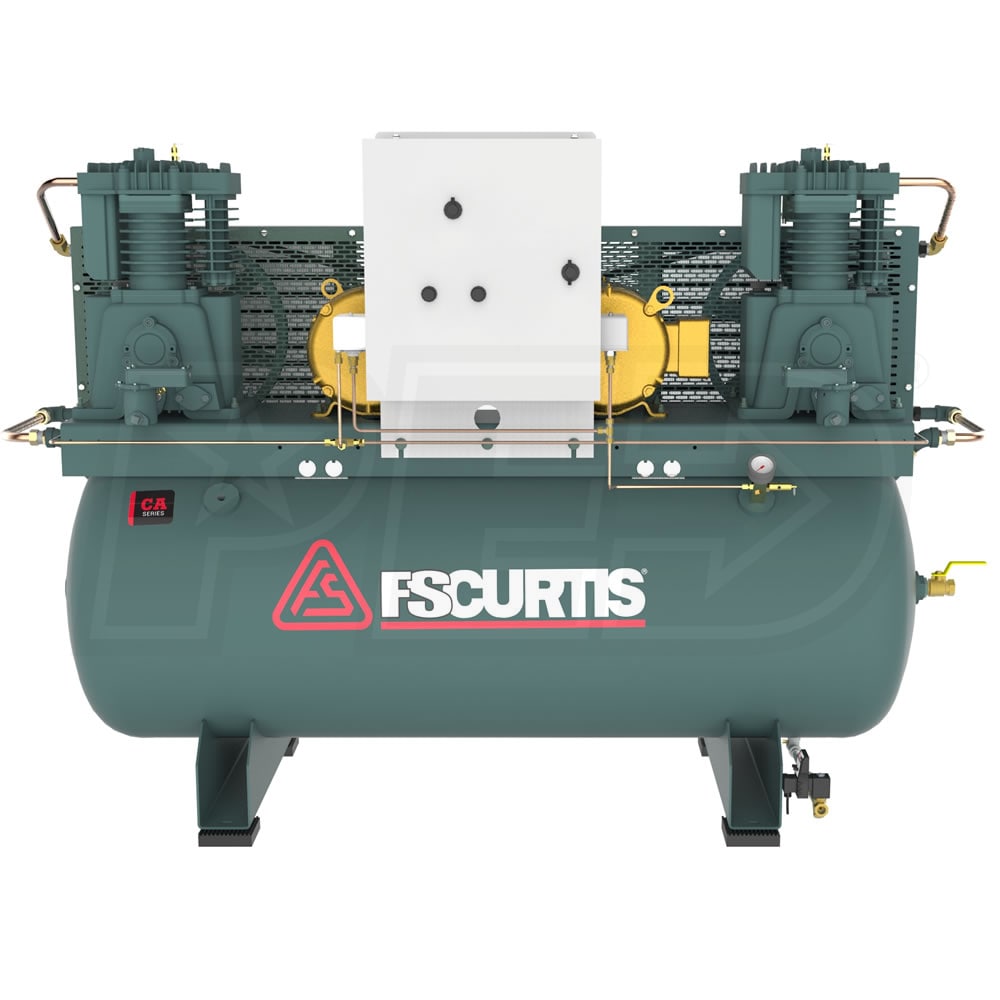

FS-Curtis CA7.5 7.5-HP / 15-HP 120-Gallon UltraPack Two-Stage Duplex Air Compressor (230V 1-Phase)

Model:

FCA07E57D1U-A2L1XX

Write a Review
$7,999.76
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 8-12 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
FS-Curtis CA7.5 7.5-HP / 15-HP 120-Gallon UltraPack Two-Stage Duplex Air Compressor (230V 1-Phase)
FS-Curtis CA7.5 7.5-HP / 15-HP 120-Gallon UltraPack Two-Stage Duplex Air Compressor (230V 1-Phase)
Model: FCA07E57D1U-A2L1XX
$7,999.76
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Style

Two Stage 1-Phase

CFM

46.4

Tank Size

120



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • UltraPack Saves Time & Money
  • Increases air quality while reducing maintenance needs, Includes options & accessories that increase efficiency

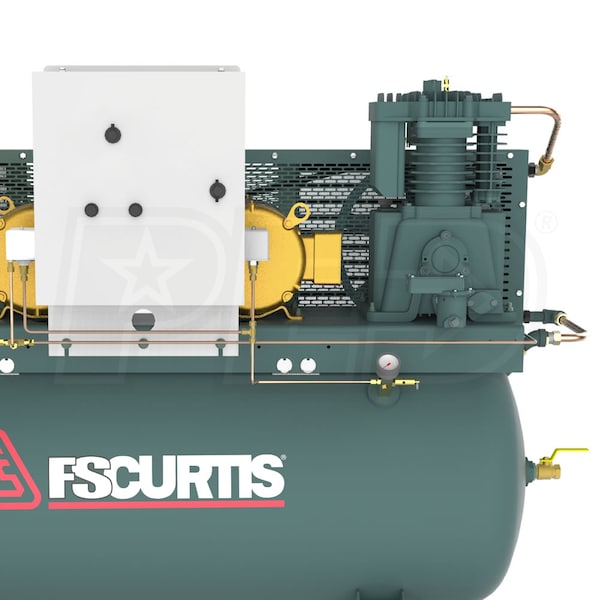

  • Duplex Unit Runs Two 7.5-HP Pumps & Motors
  • Run both pumps for maximum CFM; run only 1 pump during low demand, saving energy & prolonging pump life
  • Dual pressure switches & alternator balance running hours to simplify maintenance & equalize lifetimes
  • Magnetic Motor Starter
  • Safely starts the NEMA motor, provides under-voltage & overload protection for longer motor life
  • Air Cooled Aftercooler
  • Reduces moisture in the air supply; helps lower outlet air temperature to facilitate refrigerated air dryer use
  • Low Oil Level Shutdown Switch
  • Protects the pump; unit is factory-filled with high quality synthetic-blend oil
  • 120 Gallon ASME-Approved Air Receiver

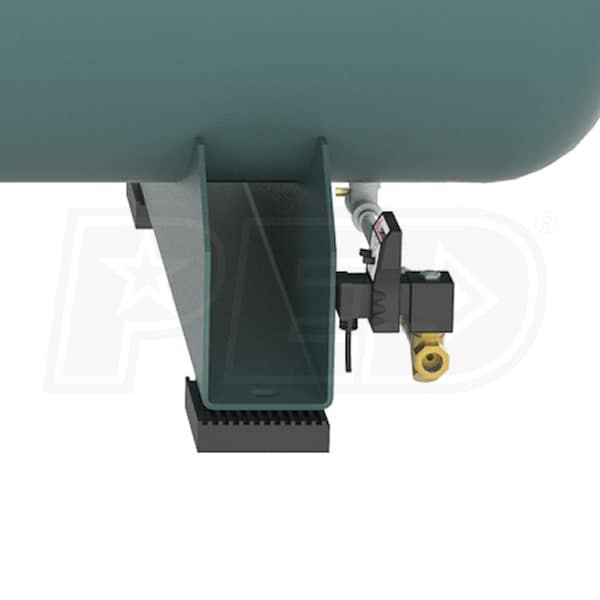

  • Automatic tank drain simplifies maintenance; prevents rust in the tank
  • Tank isolator pads reduce noise & vibration
  • Heavy Duty Stainless Steel Valve System
  • Delivers more CFM per horsepower: 23.2 CFM with 1 pump or 46.4 CFM at 175 PSI with both pumps running
  • Heavy Duty Stamped-Steel Belt Guard
  • Totally enclosed, OSHA approved protection
  • 1 Year Factory Warranty
  • Extends to 5 year bumper-to-bumper UltraShield with online factory registration & use of FS-Curtis maintenance products
California residents see
Warning: This product can expose you to chemicals including Cumene which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

FCA07E57D1U-A2L1XX
specs product image PID-76299
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
46.4
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage - Dual Pump
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
995 Pounds
Certification
ASME, UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
84 Inches
Product Width
31 Inches
Product Height
54 Inches
Power Type
Electric
