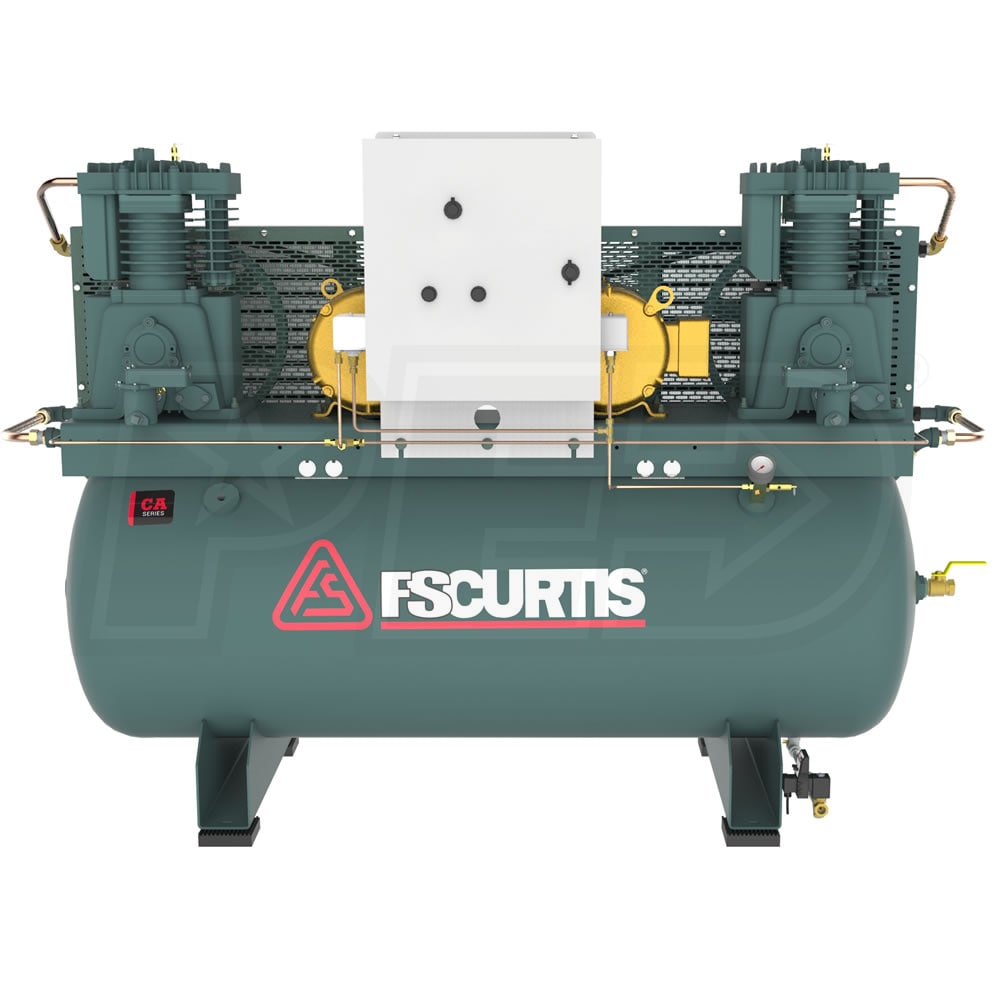

FS-Curtis CA7.5 7.5-HP / 15-HP 120-Gallon UltraPack Two-Stage Duplex Air Compressor (460V 3-Phase)
Model: FCA07E57D1U-A4L1XX
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
46.4
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
46.4 CFM Rated @ 175 PSI
Tank Size
120 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- UltraPack Saves Time & Money
- Increases air quality while reducing maintenance needs, Includes options & accessories that increase efficiency
- Duplex Unit Runs Two 7.5-HP Pumps & Motors
- Run both pumps for maximum CFM; run only 1 pump during low demand, saving energy & prolonging pump life
- Dual pressure switches & alternator balance running hours to simplify maintenance & equalize lifetimes
- Magnetic Motor Starter
- Safely starts the NEMA motor, provides under-voltage & overload protection for longer motor life
- Air Cooled Aftercooler
- Reduces moisture in the air supply; helps lower outlet air temperature to facilitate refrigerated air dryer use
- Low Oil Level Shutdown Switch
- Protects the pump; unit is factory-filled with high quality synthetic-blend oil
- 120 Gallon ASME-Approved Air Receiver
- Automatic tank drain simplifies maintenance; prevents rust in the tank
- Tank isolator pads reduce noise & vibration
- Heavy Duty Stainless Steel Valve System
- Delivers more CFM per horsepower: 23.2 CFM with 1 pump or 46.4 CFM at 175 PSI with both pumps running
- Heavy Duty Stamped-Steel Belt Guard
- Totally enclosed, OSHA approved protection
- 1 Year Factory Warranty
- Extends to 5 year bumper-to-bumper UltraShield with online factory registration & use of FS-Curtis maintenance products
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
46.4
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage - Dual Pump
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
1 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
995 Pounds
Certification
ASME, UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
84 Inches
Product Width
31 Inches
Product Height
54 Inches
Power Type
Electric
Grade
Style
CFM
46.4
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
46.4 CFM Rated @ 175 PSI
Tank Size
120 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- UltraPack Saves Time & Money
- Increases air quality while reducing maintenance needs, Includes options & accessories that increase efficiency
- Duplex Unit Runs Two 7.5-HP Pumps & Motors
- Run both pumps for maximum CFM; run only 1 pump during low demand, saving energy & prolonging pump life
- Dual pressure switches & alternator balance running hours to simplify maintenance & equalize lifetimes
- Magnetic Motor Starter
- Safely starts the NEMA motor, provides under-voltage & overload protection for longer motor life
- Air Cooled Aftercooler
- Reduces moisture in the air supply; helps lower outlet air temperature to facilitate refrigerated air dryer use
- Low Oil Level Shutdown Switch
- Protects the pump; unit is factory-filled with high quality synthetic-blend oil
- 120 Gallon ASME-Approved Air Receiver
- Automatic tank drain simplifies maintenance; prevents rust in the tank
- Tank isolator pads reduce noise & vibration
- Heavy Duty Stainless Steel Valve System
- Delivers more CFM per horsepower: 23.2 CFM with 1 pump or 46.4 CFM at 175 PSI with both pumps running
- Heavy Duty Stamped-Steel Belt Guard
- Totally enclosed, OSHA approved protection
- 1 Year Factory Warranty
- Extends to 5 year bumper-to-bumper UltraShield with online factory registration & use of FS-Curtis maintenance products
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
46.4
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage - Dual Pump
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
1 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
995 Pounds
Certification
ASME, UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
84 Inches
Product Width
31 Inches
Product Height
54 Inches
Power Type
Electric
Product Specs
+−
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
46.4
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage - Dual Pump
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
1 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
995 Pounds
Certification
ASME, UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
84 Inches
Product Width
31 Inches
Product Height
54 Inches
Power Type
Electric
