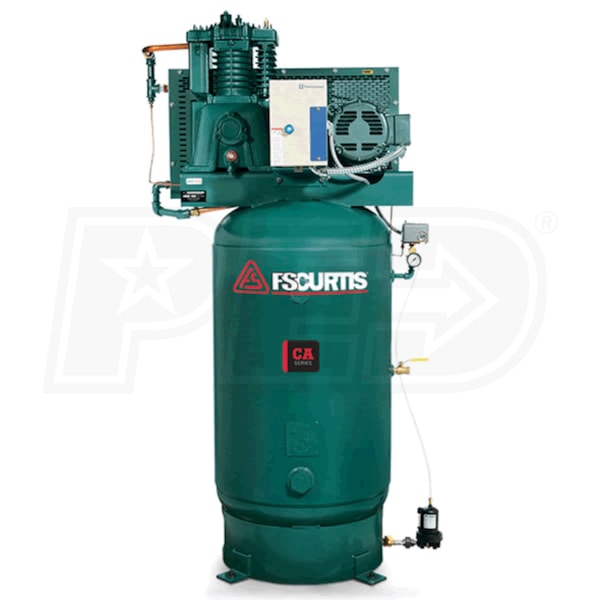

FS-Curtis CA7.5 7.5-HP 80-Gallon UltraPack Two-Stage Air Compressor (230V 1-Phase)

Model:

FCA07E57V8U-A2L1XX

Write a Review
$3,527.16
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 8-12 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
FS-Curtis CA7.5 7.5-HP 80-Gallon UltraPack Two-Stage Air Compressor (230V 1-Phase)
FS-Curtis CA7.5 7.5-HP 80-Gallon UltraPack Two-Stage Air Compressor (230V 1-Phase)
Model: FCA07E57V8U-A2L1XX
$3,527.16
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Style

Two Stage 1-Phase

CFM

23.2

Tank Size

80



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • UltraPack Saves Time & Money
  • Increases air quality while reducing maintenance needs, Includes options & accessories that increase efficiency
  • Durable Cast Iron Pump
  • Slow-turning pump increases pump life; large pressure gauge is easy to monitor
  • UL-approved automatic start/stop pressure switch
  • Magnetic Motor Starter
  • Safely starts the NEMA motor, provides under-voltage & overload protection for longer motor life
  • Air Cooled Aftercooler
  • Reduces moisture in the air supply; helps lower outlet air temperature to facilitate refrigerated air dryer use
  • Low Oil Level Shutdown Switch
  • Protects the pump; unit is factory-filled with high quality synthetic-blend oil
  • 80 Gallon ASME-Approved Air Receiver
  • Automatic tank drain simplifies maintenance; prevents rust in the tank
  • Tank isolator pads reduce noise & vibration
  • Heavy Duty Stainless Steel Valve System
  • Delivers more CFM per horsepower: 23.2 CFM at 175 PSI
  • Heavy Duty Stamped-Steel Belt Guard
  • Totally enclosed, OSHA approved protection
  • 1 Year Limited Factory Warranty
  • Can be extended to 5 years on the pump with registration & use of genuine FS-Curtis parts & lubricant
California residents see
Warning: This product can expose you to chemicals including Cumene which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

FCA07E57V8U-A2L1XX
specs product image PID-72686
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
23.2
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
580 Pounds
Certification
ASME, UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
39 Inches
Product Width
36 Inches
Product Height
74 Inches
Power Type
Electric

Reviews

(1)
FS-Curtis FCA07E57V8U-A2L1XX Reviews & Ratings

Product Q&A

(2)
Product Questions Answered by Joshua. the Air Compressor Expert
Is it a Baldor motor? And how many amps does it pull?
James S.
from New Mexico
December 15, 2019
What RPM does the motor spin at? What RPM does the pump operate at?
Robert
from Texas
December 12, 2019
