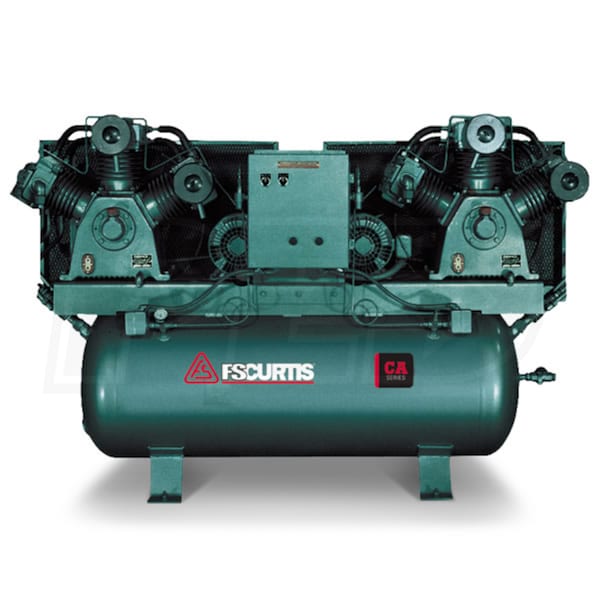

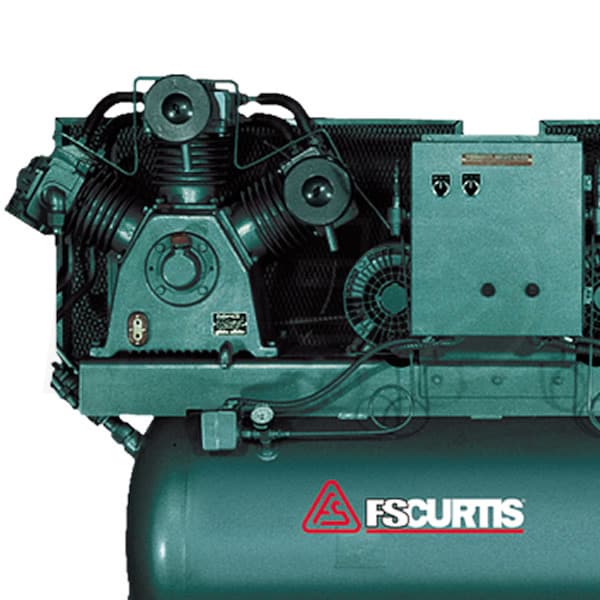

FS-Curtis CA10 10-HP / 20-HP 120-Gallon Two-Stage Duplex Air Compressor (460V 3-Phase)

FS-Curtis CA10 10-HP / 20-HP 120-Gallon Two-Stage Duplex Air Compressor (460V 3-Phase)
Model: FCA10E71D1S-A4L1XX
$7,228.36
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Free ShippingNo Sales Tax* (Except IL)$7,228.36Buy Now
No Sales Tax* (Except IL)$7,228.36Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Freight
Free Freight
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 3-Phase (460 Volts)
CFM
68.4
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
68.4 CFM Rated @ 175 PSI
Tank Size
120 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Robust CA Series 2-Stage Air Compressor
  • Provides higher pressures, better efficiency & longer life for rugged, heavy-duty applications
  • Duplex Unit Runs Two 10-HP Pumps & Motors
  • Run both pumps for maximum CFM; run only 1 pump during low demand, saving energy & prolonging pump life
  • Dual pressure switches & alternator balance running hours to simplify maintenance & equalize lifetimes
  • Magnetic Motor Starters
  • Safely starts the NEMA motors, provides under-voltage & overload protection for longer motor life
  • Heavy Duty Stainless Steel Valve Systems
  • Delivers more CFM per horsepower: 34.2 CFM with 1 pump or 68.4 CFM at 175 PSI with both pumps running
  • Metal Intake Filter/Silencers
  • Cleaner air coming in reduces wear & tear, allows better quality air output
  • Heavy Duty Stamped-Steel Belt Guard
  • Totally encloses the dynamically balanced flywheel & belt; OSHA-approved for operator safety
  • Large Dial Read-Out Pressure Gauge
  • Easily check pressure at a glance
  • 120 Gallon ASME-Approved Air Receiver
  • Manual condensate tank drain valve simplifies maintenance; discharge valve is ASME-approved
  • 1 Year Factory Warranty
  • Extends to 5 years using FS-Curtis maintenance products
  • The Reciprocating Start Up and Warranty Registration form must be completed in its entirety ONLINE at www.fscurtis.com within 30 days of the original start up date
  • For detailed information please see Warranty Breakdown under the Manuals tab
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
20
Pump
CFM
68.4
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage - Dual Pump
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Certification
ASME, UL
Weight
1225 Pounds
Product Length
90 Inches
Product Width
30 Inches
Product Height
53 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
Grade
Commercial
Style
Two Stage 3-Phase (460 Volts)
CFM
68.4
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
68.4 CFM Rated @ 175 PSI
Tank Size
120 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Robust CA Series 2-Stage Air Compressor
  • Provides higher pressures, better efficiency & longer life for rugged, heavy-duty applications
  • Duplex Unit Runs Two 10-HP Pumps & Motors
  • Run both pumps for maximum CFM; run only 1 pump during low demand, saving energy & prolonging pump life
  • Dual pressure switches & alternator balance running hours to simplify maintenance & equalize lifetimes
  • Magnetic Motor Starters
  • Safely starts the NEMA motors, provides under-voltage & overload protection for longer motor life
  • Heavy Duty Stainless Steel Valve Systems
  • Delivers more CFM per horsepower: 34.2 CFM with 1 pump or 68.4 CFM at 175 PSI with both pumps running
  • Metal Intake Filter/Silencers
  • Cleaner air coming in reduces wear & tear, allows better quality air output
  • Heavy Duty Stamped-Steel Belt Guard
  • Totally encloses the dynamically balanced flywheel & belt; OSHA-approved for operator safety
  • Large Dial Read-Out Pressure Gauge
  • Easily check pressure at a glance
  • 120 Gallon ASME-Approved Air Receiver
  • Manual condensate tank drain valve simplifies maintenance; discharge valve is ASME-approved
  • 1 Year Factory Warranty
  • Extends to 5 years using FS-Curtis maintenance products
  • The Reciprocating Start Up and Warranty Registration form must be completed in its entirety ONLINE at www.fscurtis.com within 30 days of the original start up date
  • For detailed information please see Warranty Breakdown under the Manuals tab
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
20
Pump
CFM
68.4
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage - Dual Pump
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Certification
ASME, UL
Weight
1225 Pounds
Product Length
90 Inches
Product Width
30 Inches
Product Height
53 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
Product Specs
+
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
20
Pump
CFM
68.4
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage - Dual Pump
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Certification
ASME, UL
Weight
1225 Pounds
Product Length
90 Inches
Product Width
30 Inches
Product Height
53 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
