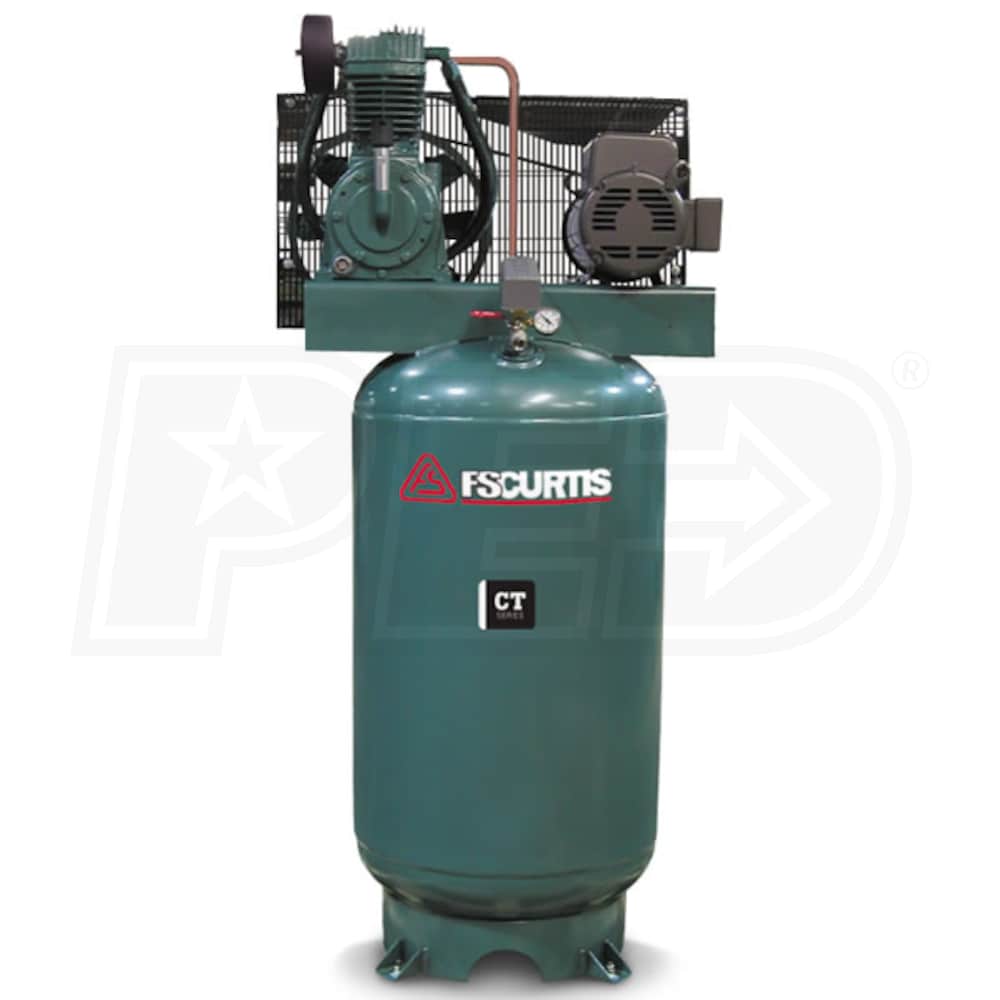

FS-Curtis CT7.5 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)

Model:

FCT07C75V8S-A2L1XX

Write a Review
$2,757.28
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
FS-Curtis CT7.5 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)
FS-Curtis CT7.5 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)
Model: FCT07C75V8S-A2L1XX
$2,757.28
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Grade

Commercial

Style

Two Stage 1-Phase

CFM

24.2

Tank Size

80



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Value-Minded Industrial Design
  • Provides robust performance at a lower cost
  • 100% Cast Iron Cylinders, Heads, Connecting Rods & Pistons
  • More cast iron for a longer service life
  • Significantly longer lasting than pumps with aluminum components
  • High Flow, Heavy Duty Stainless Steel Valve Channel Valve System
  • Delivers more CFM per horsepower
  • Robust Intercooler
  • Increases compressor efficiency
  • Industrial Grade Main Roller Bearings
  • Precision fit supports rotating parts for longer pump life
  • Ductile Iron Crankshaft
  • Stronger, more corrosion resistant, & less likely to break
  • Higher Pressure & Longer Life
  • Outperforms single stage compressors
  • Perfect for light automotive & light industrial applications
  • Slow Turning Pump Increases Pump Life
  • Superior to other entry-level compressors
  • 1 Year Factory Warranty
  • Extends to 2 years using FS-Curtis maintenance products
  • The Reciprocating Start Up and Warranty Registration form must be completed in its entirety ONLINE at www.fscurtis.com within 30 days of the original start up date
  • For detailed information please see Warranty Breakdown under the Manuals tab
California residents see
Warning: This product can expose you to chemicals including Cumene which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

FCT07C75V8S-A2L1XX
specs product image PID-77006
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
24.2
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
573 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
36 Inches
Product Width
27 Inches
Product Height
74 Inches
Power Type
Electric
