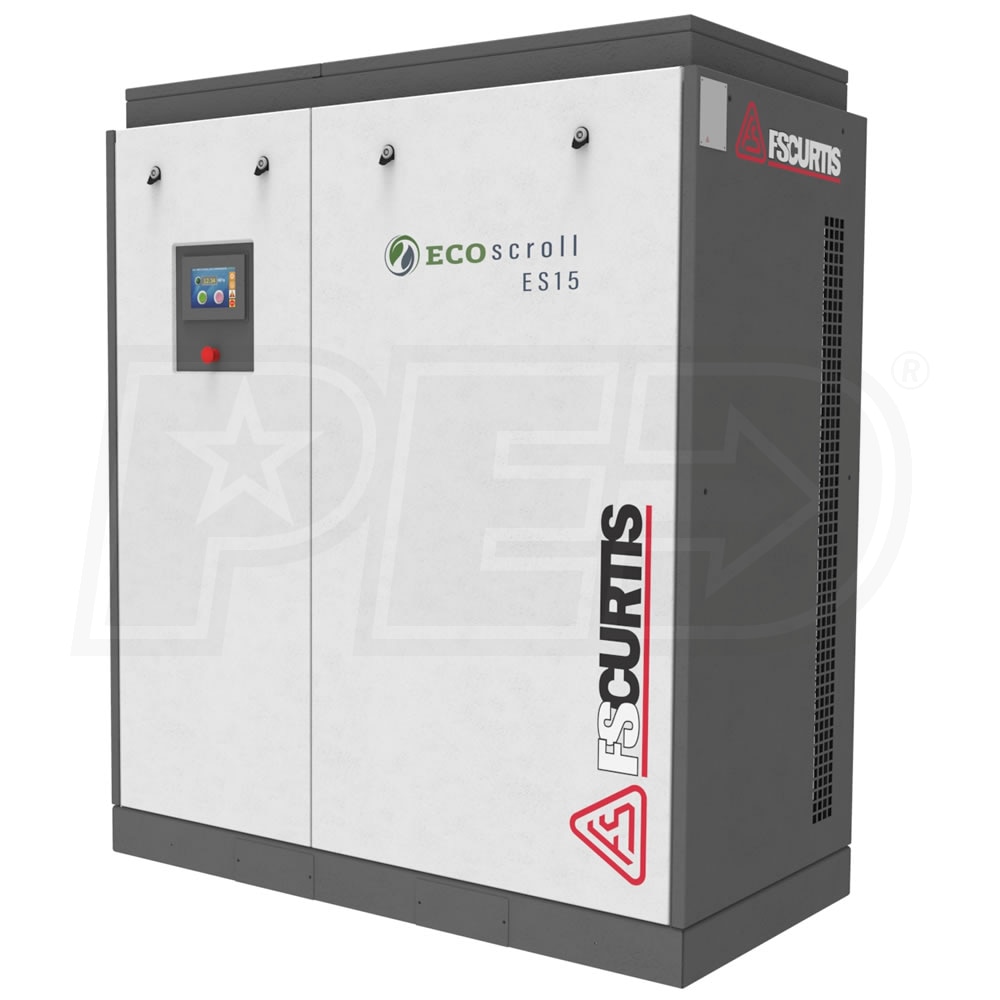

FS-Curtis ES15 ECO Scroll 20-HP Tankless Oil-Free Air Compressor (230V 3-Phase)

FS-Curtis ES15 ECO Scroll 20-HP Tankless Oil-Free Air Compressor (230V 3-Phase)
Our Price
Compare Prices
Shipping Info
Model: FES15CXX3QXXX
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Scroll Compressors
CFM
56.5
CFM Rated @ 116 PSI
Grade
Commercial
CFM
56.5 CFM Rated @ 116 PSI


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • ISO 8573-1 CLASS 0 Certified Compressor (Not For Medical Use)
  • Energy efficient, easy to operate and maintain, quiet and compact
  • Provides 100% oil-free air for critical applications: electronics, pharmaceutical, hospitals, dental, food & beverage, etc.

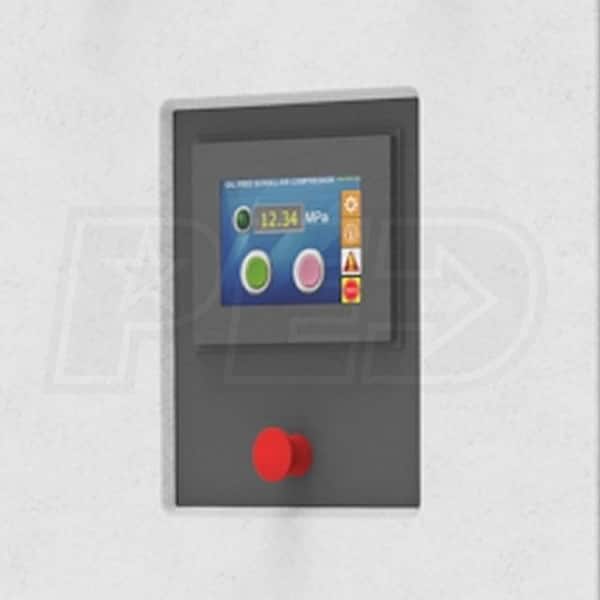

  • Smart User-Friendly Controller
  • Simple and easy to operate, informative menus allows user to program maintenance alerts for consumables
  • Real-time status monitoring of pressure & temperature; multiple protections with warning & shutdown alarms
  • Whisper Quiet
  • 63 dBA noise level with ultra low vibration is about as loud as a conversation at work; saves installation space
  • Powerful & Energy Efficient Pump / Motor Modules
  • Four highly efficient 5-HP TEFC IE3 motors are designed for 100% duty cycle with stop/start & alternator control
  • Exclusive ECO-Series Scroll Airend
  • Delivers 56.5 CFM at 116 PSI; lower carbon footprint is environmentally friendly
  • Fewer moving parts result in higher reliability; not as sensitive to intermittent operation or short-cycling as rotary units
  • Centrifugal Cooling Fan
  • Keeps heat exchange efficient and quiet
  • Ecologically Conscious
  • Lower carbon footprint, promotes energy conservation by avoiding the use of oil
  • 2 Year Factory Warranty
  • Protects your investment with the use of genuine FS-Curtis maintenance materials
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Amp Draw
48
Recommended Breaker
Consult Certified Electrician
dBA
63
Engine
HP
15
Pump
CFM
56.5
CFM Rated @
116 PSI
Pump Type
Scroll Compressor
Max PSI
116 PSI
Pump Drive
Belt Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Included
No
Tank Outlet
1 Inch
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
No
Overview
Weight
1210 Pounds
Product Length
63 Inches
Product Width
29.5 Inches
Product Height
68.5 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Grade
Commercial
Style
Scroll Compressors
CFM
56.5
CFM Rated @ 116 PSI
Grade
Commercial
CFM
56.5 CFM Rated @ 116 PSI


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • ISO 8573-1 CLASS 0 Certified Compressor (Not For Medical Use)
  • Energy efficient, easy to operate and maintain, quiet and compact
  • Provides 100% oil-free air for critical applications: electronics, pharmaceutical, hospitals, dental, food & beverage, etc.
  • Smart User-Friendly Controller
  • Simple and easy to operate, informative menus allows user to program maintenance alerts for consumables
  • Real-time status monitoring of pressure & temperature; multiple protections with warning & shutdown alarms
  • Whisper Quiet
  • 63 dBA noise level with ultra low vibration is about as loud as a conversation at work; saves installation space
  • Powerful & Energy Efficient Pump / Motor Modules
  • Four highly efficient 5-HP TEFC IE3 motors are designed for 100% duty cycle with stop/start & alternator control
  • Exclusive ECO-Series Scroll Airend
  • Delivers 56.5 CFM at 116 PSI; lower carbon footprint is environmentally friendly
  • Fewer moving parts result in higher reliability; not as sensitive to intermittent operation or short-cycling as rotary units
  • Centrifugal Cooling Fan
  • Keeps heat exchange efficient and quiet
  • Ecologically Conscious
  • Lower carbon footprint, promotes energy conservation by avoiding the use of oil
  • 2 Year Factory Warranty
  • Protects your investment with the use of genuine FS-Curtis maintenance materials
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Amp Draw
48
Recommended Breaker
Consult Certified Electrician
dBA
63
Engine
HP
15
Pump
CFM
56.5
CFM Rated @
116 PSI
Pump Type
Scroll Compressor
Max PSI
116 PSI
Pump Drive
Belt Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Included
No
Tank Outlet
1 Inch
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
No
Overview
Weight
1210 Pounds
Product Length
63 Inches
Product Width
29.5 Inches
Product Height
68.5 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Specs
+
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Amp Draw
48
Recommended Breaker
Consult Certified Electrician
dBA
63
Engine
HP
15
Pump
CFM
56.5
CFM Rated @
116 PSI
Pump Type
Scroll Compressor
Max PSI
116 PSI
Pump Drive
Belt Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Included
No
Tank Outlet
1 Inch
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
No
Overview
Weight
1210 Pounds
Product Length
63 Inches
Product Width
29.5 Inches
Product Height
68.5 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
