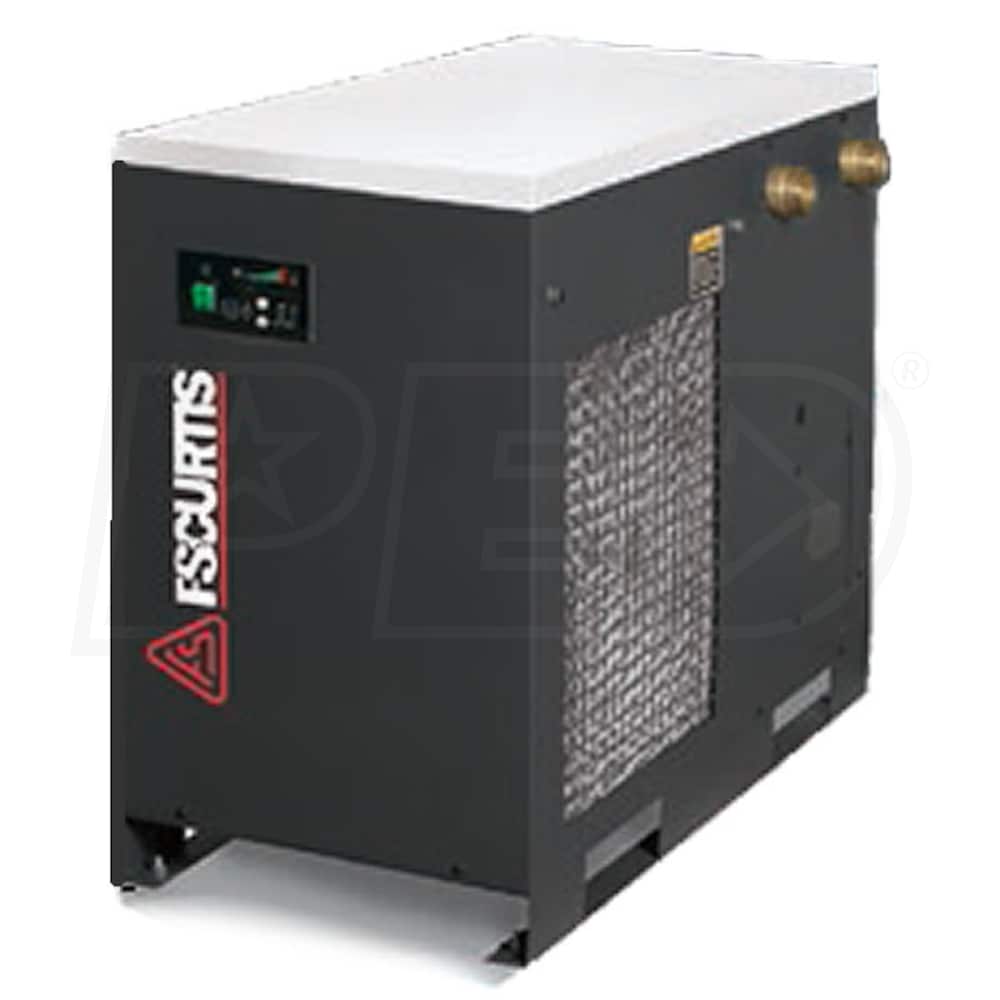

FS-Curtis Standard Non-Cycling Refrigerated Air Dryer (200 CFM)
Model: RNP200
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$3,974.04
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $75.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$75.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Refrigerated
Air Dryer CFM
200
Style
Refrigerated
Air Dryer CFM
200
Features
Features
  • Compact Footprint
  • Removes maximum moisture in minimum space
  • Reliable Performance
  • Increases efficiency to get the most from your equipment
  • Simple to operate & maintain
  • ISO 8573.1 Air Quality Class 4 - 5 Pressure Dew Point
  • Delivers clean, dry, consistent-quality compressed air
  • Stainless-Steel Brazed Plate Heat Exchanger
  • Quality components extend service life
  • At-A-Glance Control Panel Dew Point Indicator
  • Easy to understand and operate
  • Cleanable Cabinet Filter
  • Quick access for dependable performance
  • R-134a Refrigerant
  • Environmentally friendly
  • Flexible Installation
  • Requires 460 volt, 3 phase power; 1 1/2" NPT inlet/outlet
  • Rated for 200 CFM at 100 PSI to 120°F ambient temperature
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Air Dryer
Air Dryer CFM
200
Max PSI
232
Max Inlet Temp. Rating
120
Max Ambient Temp. Rating
120
Non-Cycling
Yes
Inlet Fittings
1-1/2"
Outlet Fittings
1-1/2"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
No
Auto Drain
No
Regenerative
No
High Temp
No
Overview
Weight
183 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
36 Inches
Product Width
17 Inches
Product Height
30 Inches
Power Type
Electric
Style
Refrigerated
Air Dryer CFM
200
Style
Refrigerated
Air Dryer CFM
200
Features
Features
  • Compact Footprint
  • Removes maximum moisture in minimum space
  • Reliable Performance
  • Increases efficiency to get the most from your equipment
  • Simple to operate & maintain
  • ISO 8573.1 Air Quality Class 4 - 5 Pressure Dew Point
  • Delivers clean, dry, consistent-quality compressed air
  • Stainless-Steel Brazed Plate Heat Exchanger
  • Quality components extend service life
  • At-A-Glance Control Panel Dew Point Indicator
  • Easy to understand and operate
  • Cleanable Cabinet Filter
  • Quick access for dependable performance
  • R-134a Refrigerant
  • Environmentally friendly
  • Flexible Installation
  • Requires 460 volt, 3 phase power; 1 1/2" NPT inlet/outlet
  • Rated for 200 CFM at 100 PSI to 120°F ambient temperature
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Air Dryer
Air Dryer CFM
200
Max PSI
232
Max Inlet Temp. Rating
120
Max Ambient Temp. Rating
120
Non-Cycling
Yes
Inlet Fittings
1-1/2"
Outlet Fittings
1-1/2"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
No
Auto Drain
No
Regenerative
No
High Temp
No
Overview
Weight
183 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
36 Inches
Product Width
17 Inches
Product Height
30 Inches
Power Type
Electric
Product Specs
+
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Air Dryer
Air Dryer CFM
200
Max PSI
232
Max Inlet Temp. Rating
120
Max Ambient Temp. Rating
120
Non-Cycling
Yes
Inlet Fittings
1-1/2"
Outlet Fittings
1-1/2"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
No
Auto Drain
No
Regenerative
No
High Temp
No
Overview
Weight
183 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
36 Inches
Product Width
17 Inches
Product Height
30 Inches
Power Type
Electric
