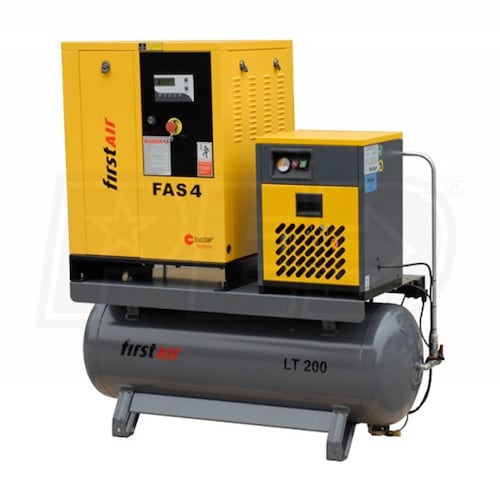

First Air FAS4U 5-HP 53-Gallon Rotary Screw Air Compressor w/ Dryer (230V 1-Phase 150PSI)
Model:
FAS041U
+
Share This Product
Similar Products
$7,383.56
$7,383.56
$7,612.73
$7,545.86
$7,499.00
$7,499.00
$7,433.90
$7,499.00
$7,499.00
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Optional Accessories
9
Model: 21999-0177
$109.80
In-Stock
Model: 21999-0131-AC
$270.75
Factory-Direct
Model: FA40IH
$231.99
Factory-Direct
$235.00
Factory-Direct
$231.99
Factory-Direct
$249.00
Factory-Direct
$295.00
Factory-Direct
Model: TRI-GD-3046RS-GL
$95.00
Factory-Direct
Model: TRI-GD-4046RS-GL
$108.00
Factory-Direct
Features
Grade
Commercial
Voltage
230 Volt AC
Phase
1-Phase
CFM
16.6
Tank Size
53
- Premium Ultra Pack Rotary Air System
- Designed for industrial applications; Economical operation is guaranteed
- High quality components ensures durability with constantly high efficiency
- Continuous 100% Duty Cycle
- Runs your application efficiently 24/7
- Energy Efficient Electric Motor
- Explicitly developed for high loads within industrial applications
- Equipped with energy efficiency driving motors class IE3, protection class IP55, insulation class F
- Integrated Refrigerated Air Dryer
- Condenses the air to remove airborne moisture, dirt, and oil before it enters your network
- Prevents rust in compressed air piping & avoids damage to air tools
- High Performance Inlet Filter
- Prevents contaminants from entering the compressor package
- Particles are filtered in two stages: first by centrifugal forces and second by a high efficiency filter element.
- 53 Gallon Air Receiver w/ Low Noise Sound Enclosure For Quiet Operation
- Reduces sounds levels to as low as 65±3 dBA; about the same as a normal conversation
- Service can be conducted quickly and safely from all 4 sides
- High-Efficiency Air Cooling System
- Constructed and measured to be ran up to a room temperature of +45°C
- Improves longevity and reliability
- Integrated Oil Separator
- Guarantees excellent compressed air quality with a remaining oil content of < 3mg/m3
- Oil level can be controlled at all times through inspection glass
- 1 Year Factory Warranty-Parts Only
California residents see
Warning: This product can expose you to chemicals including Cumene which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
FAS041U
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
16.6
CFM Rated @
150 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Duty Cycle
100%
Tank
Tank Size
53 Gallons
Tank Included
Yes
Tank Outlet
1/2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
960 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
60 Inches
Product Width
28 Inches
Product Height
62 Inches
Power Type
Electric
Additional Model Numbers
FAS4U, FAS041U
Reviews
(3)
First Air FAS041U Reviews & Ratings
Motor Starter Cap Failure After 3 Months New
By Aaron E.
Huntertown, Indiana
Purchased 01/20/2018 |
Review Posted 08/03/2018
The Starter Cap on the Motor went out about 3 months after it was installed and used. I went to my local Electric motor Starter cap supplier and got one that fit the specs on the motor plate and it works fine again. Overall took me about an hour to troubleshoot diagnose and replace the part. 2 hours running around to stores searching for the part and 40 dollars for the part. I didn't bother with trying to send a warranty claim due to the fact that I don't have the time to deal with it, but have to get my plant up and running again.
Aaron E. Recommends This
Was this review helpful?
Expert Response
We are sincerely sorry you are having issues with your FAS4U - First Air FAS4U 5-HP 53-Gallon. We can understand your frustration, but are happy to hear you were able to fix the unit to get it up and running! First Air does have trained professionals that are able to diagnose the cause of the unit's issues, but also provide any applicable warranty coverage as well if there was a major problem that was not able to be resolved by you. Please accept our apologies for your disappointment and inconvenience!
Melissa C.
Air Compressor Expert
Rating Breakdown
4/5
4/5
4/5
4/5
Pros:
Easy To Use, Quiet, Price, Fast
**Motor Went Out In Less Than A Month!**
By Michael M.
Mount Horeb, Wisconsin
Purchased 02/06/2018 |
Review Posted 04/03/2018
Compressor seemed to be built with good quality components but failed on me in less than a month of use. I purchased the single phase unit and the motor had a failure and has to now be replaced. Definitely not what you would expect from a 5 thousand dollar unit.
Michael M. Does Not Recommend This
Was this review helpful?
Expert Response
We are sorry to hear you are having issues with your FAS4U - First Air FAS4U 5-HP 53-Gallon Rotary air compressor. We have been in touch with the manufacturer and they informed us they have been working with you to resolve the issue with the motor. First Air, has trained professionals that are able to diagnose the cause of the unit's issues, but also provide any applicable warranty coverage as well. We appreciate your business and we're confident the First Air folks will take good care of you. Please accept our apologies for your disappointment and inconvenience!
Melissa C.
Air Compressor Expert
Manufacturer Response
Our warranty Tech Service Group worked directly with the customer to replace the motor.
Rating Breakdown
3/5
4/5
4/5
2/5
Pros:
Fast
Cons:
Unreliable, Expensive, Motor stopped working after less than a month of use.
Rotary Screw 240 VAC 1ph 5hp 53 Gallon 200 Liter Air Compressor
By Aaron E.
Huntertown, Indiana
Purchased 01/20/2018 |
Review Posted 02/20/2018
This air compressor is excellent. Operation is simple and provides good quality air. It would be nice to vary the auto drain time interval.
This is about half as loud as my old 5hp piston compressor. As a note, this compressor does come with oil already topped off.
This is about half as loud as my old 5hp piston compressor. As a note, this compressor does come with oil already topped off.
Aaron E. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Durable, Quiet, Reliable, High Quality
Cons:
Heavy
