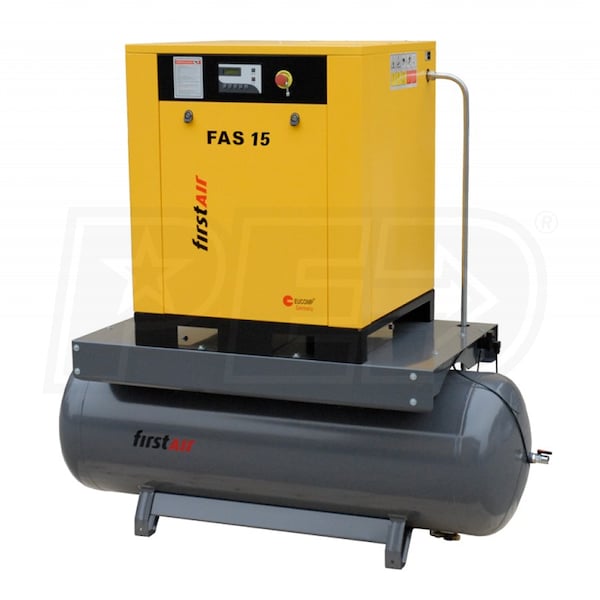

First Air FAS15T 20-HP 53-Gallon Rotary Screw Air Compressor (460V 3-Phase 150PSI)
Model: FAS15T-460
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

CFM
69.9
CFM Rated @ 150 PSI
Tank Size
53
Gallons
Grade
Commercial
CFM
69.9 CFM Rated @ 150 PSI
Tank Size
53 Gallons
Features
Features
- Unit Comes Set Up As 230V; 460V Conversion Kit Included
- 3-phase unit is capable of running on 460 Voltage ONLY with conversion kit
- Must be wired on-site by licensed electrician
- Energy Efficient Electric Motor
- Explicitly developed for high loads within industrial applications
- Equipped with energy efficiency driving motors class IE3, protection class IP55, insulation class F
- Standard Wye-Delta Soft Starter
- Delivers quiet operation & longer compressor life
- Provides reduced energy demand & amp draw on start up
- Premium Rotary Air System
- Premium components ensures durability with constant efficiency
- Designed for industrial applications; Economical operation is guaranteed
- High Performance Inlet Filter
- Prevents contaminants from entering the compressor package
- Particles are filtered in two stages: first by centrifugal forces and second by a high efficiency filter element.
- Continuous 100% Duty Cycle
- Runs your application efficiently 24/7
- 53-Gal Receiver w/ Low Noise Sound Enclosure For Quiet Operation
- Service can be conducted quickly and safely from all 4 sides
- Reduces sounds levels to as low as 70±3 dBA; about the same as a normal conversation
- High-Efficiency Air Cooling System
- Improves longevity and reliability
- Constructed and measured to be ran up to a room temperature of +45°C
- Integrated Oil Separator
- Oil level can be controlled at all times through inspection glass
- Guarantees excellent compressed air quality with a remaining oil content of < 3mg/m3
- 1 Year Factory Warranty-Parts Only
Specifications
Engine
HP
20
Motor
Voltage
460 Volt AC
Phase
3-Phase
dBA
73
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
69.9
CFM Rated @
150 PSI
Max PSI
150 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Duty Cycle
100%
Tank
Tank Size
53 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Overview
Weight
1280 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
60 Inches
Product Width
36 Inches
Product Height
75 Inches
Power Type
Electric
Grade

Style

CFM
69.9
CFM Rated @ 150 PSI
Tank Size
53
Gallons
Grade
Commercial
CFM
69.9 CFM Rated @ 150 PSI
Tank Size
53 Gallons
Features
Features
- Unit Comes Set Up As 230V; 460V Conversion Kit Included
- 3-phase unit is capable of running on 460 Voltage ONLY with conversion kit
- Must be wired on-site by licensed electrician
- Energy Efficient Electric Motor
- Explicitly developed for high loads within industrial applications
- Equipped with energy efficiency driving motors class IE3, protection class IP55, insulation class F
- Standard Wye-Delta Soft Starter
- Delivers quiet operation & longer compressor life
- Provides reduced energy demand & amp draw on start up
- Premium Rotary Air System
- Premium components ensures durability with constant efficiency
- Designed for industrial applications; Economical operation is guaranteed
- High Performance Inlet Filter
- Prevents contaminants from entering the compressor package
- Particles are filtered in two stages: first by centrifugal forces and second by a high efficiency filter element.
- Continuous 100% Duty Cycle
- Runs your application efficiently 24/7
- 53-Gal Receiver w/ Low Noise Sound Enclosure For Quiet Operation
- Service can be conducted quickly and safely from all 4 sides
- Reduces sounds levels to as low as 70±3 dBA; about the same as a normal conversation
- High-Efficiency Air Cooling System
- Improves longevity and reliability
- Constructed and measured to be ran up to a room temperature of +45°C
- Integrated Oil Separator
- Oil level can be controlled at all times through inspection glass
- Guarantees excellent compressed air quality with a remaining oil content of < 3mg/m3
- 1 Year Factory Warranty-Parts Only
Specifications
Engine
HP
20
Motor
Voltage
460 Volt AC
Phase
3-Phase
dBA
73
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
69.9
CFM Rated @
150 PSI
Max PSI
150 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Duty Cycle
100%
Tank
Tank Size
53 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Overview
Weight
1280 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
60 Inches
Product Width
36 Inches
Product Height
75 Inches
Power Type
Electric
Product Specs
+−
Specifications
Engine
HP
20
Motor
Voltage
460 Volt AC
Phase
3-Phase
dBA
73
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
69.9
CFM Rated @
150 PSI
Max PSI
150 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Duty Cycle
100%
Tank
Tank Size
53 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Overview
Weight
1280 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
60 Inches
Product Width
36 Inches
Product Height
75 Inches
Power Type
Electric
