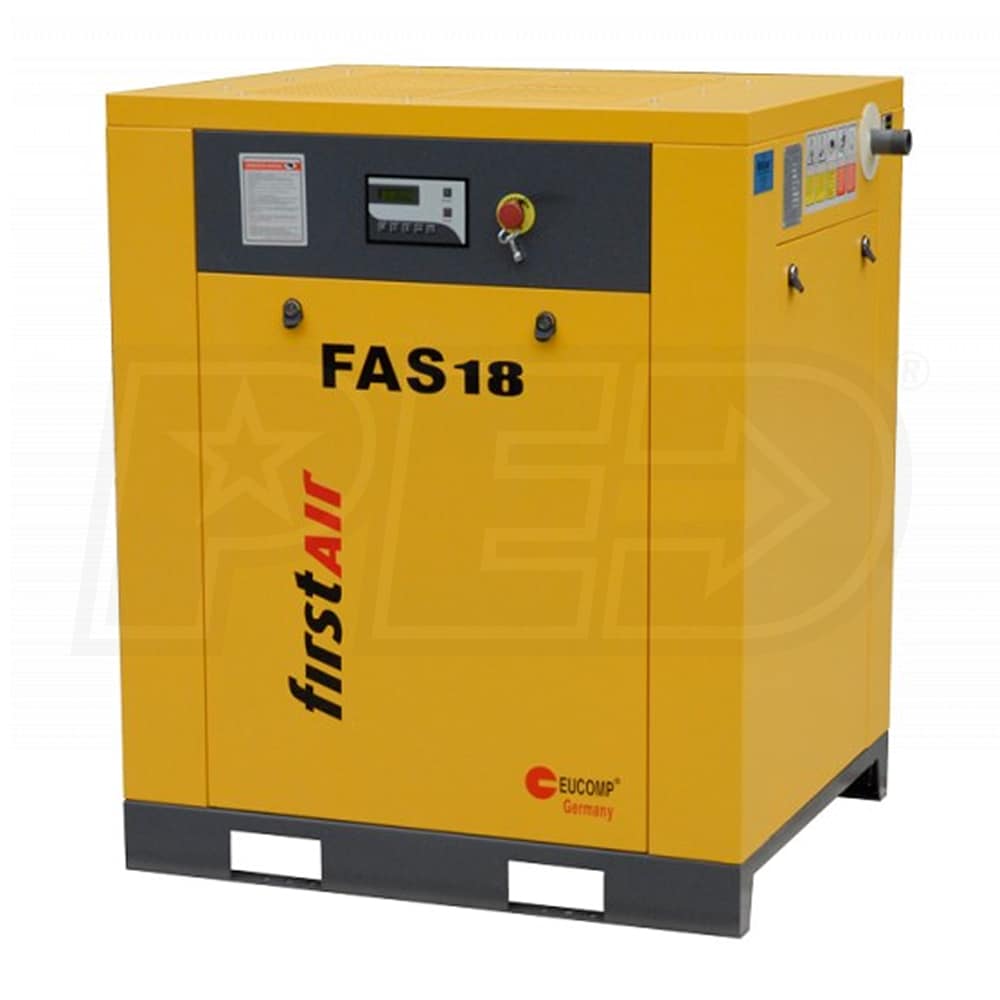

First Air FAS18 25-HP Tankless Rotary Screw Air Compressor (460V 3-Phase 125PSI)
Model:
FAS18-460
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
460 Volt AC
Phase
3-Phase
CFM
97.5
Tank Size
0
- Premium Rotary Air System
- Premium components ensures durability with constant efficiency
- Designed for industrial applications; Economical operation is guaranteed
- Energy Efficient Electric Motor
- Explicitly developed for high loads within industrial applications
- Equipped with energy efficiency driving motors class IE3, protection class IP55, insulation class F
- Standard Wye-Delta Soft Starter
- Delivers quiet operation & longer compressor life
- Provides reduced energy demand & amp draw on start up
- High-Efficiency Air Cooling System
- Improves longevity and reliability
- Constructed and measured to be ran up to a room temperature of +45°C
- High Performance Inlet Filter
- Prevents contaminants from entering the compressor package
- Particles are filtered in two stages: first by centrifugal forces and second by a high efficiency filter element.
- Integrated Oil Separator
- Oil level can be controlled at all times through inspection glass
- Guarantees excellent compressed air quality with a remaining oil content of < 3mg/m3
- Continuous 100% Duty Cycle
- Runs your application efficiently 24/7
- Low Noise Sound Enclosure For Quiet Operation (Tank Not Included)
- Service can be conducted quickly and safely from all 4 sides
- Reduces sounds levels to as low as 70±3 dBA; about the same as a normal conversation
- 1 Year Factory Warranty-Parts Only
California residents see
Warning: This product can expose you to chemicals including Cumene which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
FAS18-460
General Information
Product Category
Air Compressor - Stationary
Engine
HP
25
Motor
Voltage
460 Volt AC
Phase
3-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
73
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
97.5
CFM Rated @
125 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1-1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
1100 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
42 Inches
Product Width
35 Inches
Product Height
50 Inches
Power Type
Electric
