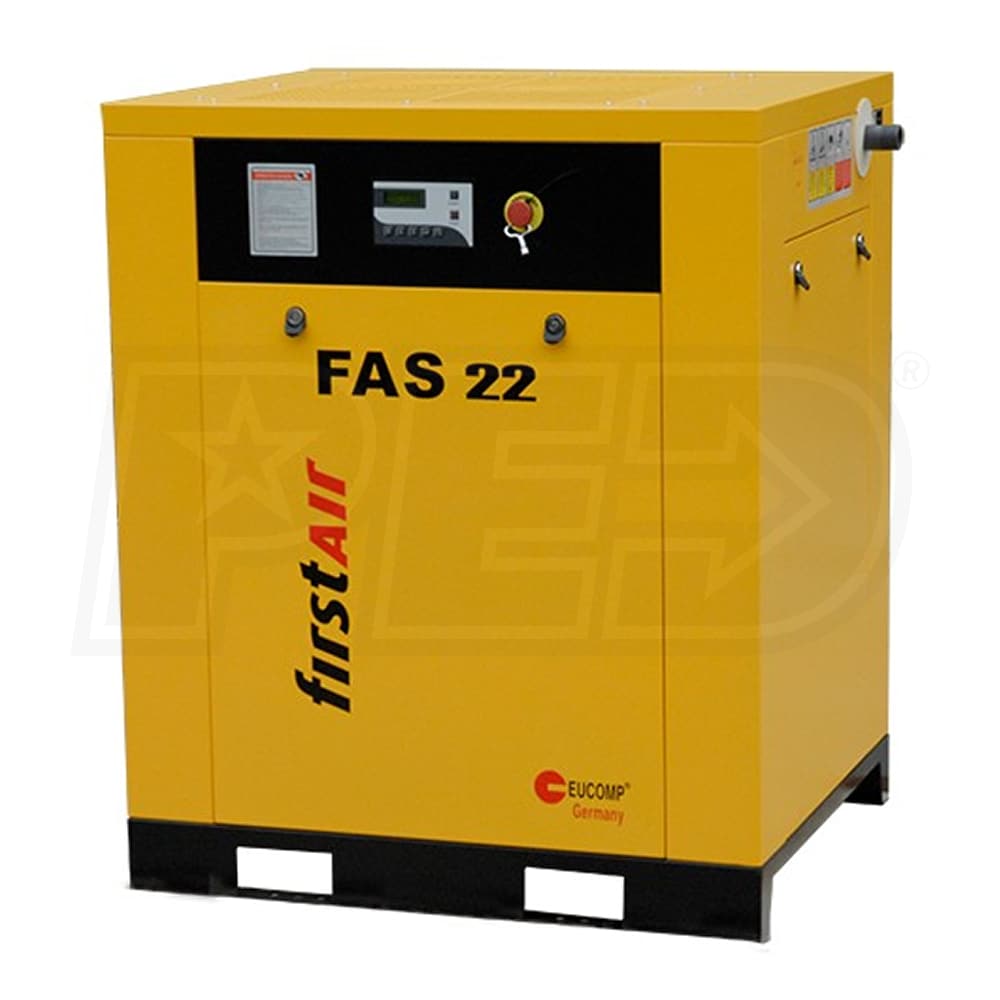

First Air FAS22 30-HP Tankless Rotary Screw Air Compressor (460V 3-Phase 125PSI)
First Air FAS22 30-HP Tankless Rotary Screw Air Compressor (460V 3-Phase 125PSI)
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
106.3
CFM Rated @ 125 PSI
Tank Size
0
Gallons
Grade
Commercial
CFM
106.3 CFM Rated @ 125 PSI
Tank Size
0 Gallons
Features
Features
- Premium Rotary Air System
- Premium components ensures durability with constant efficiency
- Designed for industrial applications; Economical operation is guaranteed
- Energy Efficient Electric Motor
- Explicitly developed for high loads within industrial applications
- Equipped with energy efficiency driving motors class IE3, protection class IP55, insulation class F
- High-Efficiency Air Cooling System
- Improves longevity and reliability
- Constructed and measured to be ran up to a room temperature of +45°C
- Standard Wye-Delta Soft Starter
- Delivers quiet operation & longer compressor life
- Provides reduced energy demand & amp draw on start up
- High Performance Inlet Filter
- Prevents contaminants from entering the compressor package
- Particles are filtered in two stages: first by centrifugal forces and second by a high efficiency filter element.
- Integrated Oil Separator
- Oil level can be controlled at all times through inspection glass
- Guarantees excellent compressed air quality with a remaining oil content of < 3mg/m3
- Low Noise Sound Enclosure For Quiet Operation (Tank Not Included)
- Reduces sounds levels to as low as 70±3 dBA; about the same as a normal conversation
- Continuous 100% Duty Cycle
- Runs your application efficiently 24/7
- Service can be conducted quickly and safely from all 4 sides
- 1 Year Factory Warranty
Specifications
Engine
HP
30
Motor
Voltage
460 Volt AC
Phase
3-Phase
dBA
73
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
106.3
CFM Rated @
125 PSI
Max PSI
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1-1/4 Inch
Electronic Drain Valve
No
Accessories
Air Dryer
No
Overview
Weight
1260 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
42 Inches
Product Width
35 Inches
Product Height
50 Inches
Power Type
Electric
Grade
Style
CFM
106.3
CFM Rated @ 125 PSI
Tank Size
0
Gallons
Grade
Commercial
CFM
106.3 CFM Rated @ 125 PSI
Tank Size
0 Gallons
Features
Features
- Premium Rotary Air System
- Premium components ensures durability with constant efficiency
- Designed for industrial applications; Economical operation is guaranteed
- Energy Efficient Electric Motor
- Explicitly developed for high loads within industrial applications
- Equipped with energy efficiency driving motors class IE3, protection class IP55, insulation class F
- High-Efficiency Air Cooling System
- Improves longevity and reliability
- Constructed and measured to be ran up to a room temperature of +45°C
- Standard Wye-Delta Soft Starter
- Delivers quiet operation & longer compressor life
- Provides reduced energy demand & amp draw on start up
- High Performance Inlet Filter
- Prevents contaminants from entering the compressor package
- Particles are filtered in two stages: first by centrifugal forces and second by a high efficiency filter element.
- Integrated Oil Separator
- Oil level can be controlled at all times through inspection glass
- Guarantees excellent compressed air quality with a remaining oil content of < 3mg/m3
- Low Noise Sound Enclosure For Quiet Operation (Tank Not Included)
- Reduces sounds levels to as low as 70±3 dBA; about the same as a normal conversation
- Continuous 100% Duty Cycle
- Runs your application efficiently 24/7
- Service can be conducted quickly and safely from all 4 sides
- 1 Year Factory Warranty
Specifications
Engine
HP
30
Motor
Voltage
460 Volt AC
Phase
3-Phase
dBA
73
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
106.3
CFM Rated @
125 PSI
Max PSI
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1-1/4 Inch
Electronic Drain Valve
No
Accessories
Air Dryer
No
Overview
Weight
1260 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
42 Inches
Product Width
35 Inches
Product Height
50 Inches
Power Type
Electric
Product Specs
+−
Specifications
Engine
HP
30
Motor
Voltage
460 Volt AC
Phase
3-Phase
dBA
73
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
106.3
CFM Rated @
125 PSI
Max PSI
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1-1/4 Inch
Electronic Drain Valve
No
Accessories
Air Dryer
No
Overview
Weight
1260 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
42 Inches
Product Width
35 Inches
Product Height
50 Inches
Power Type
Electric
