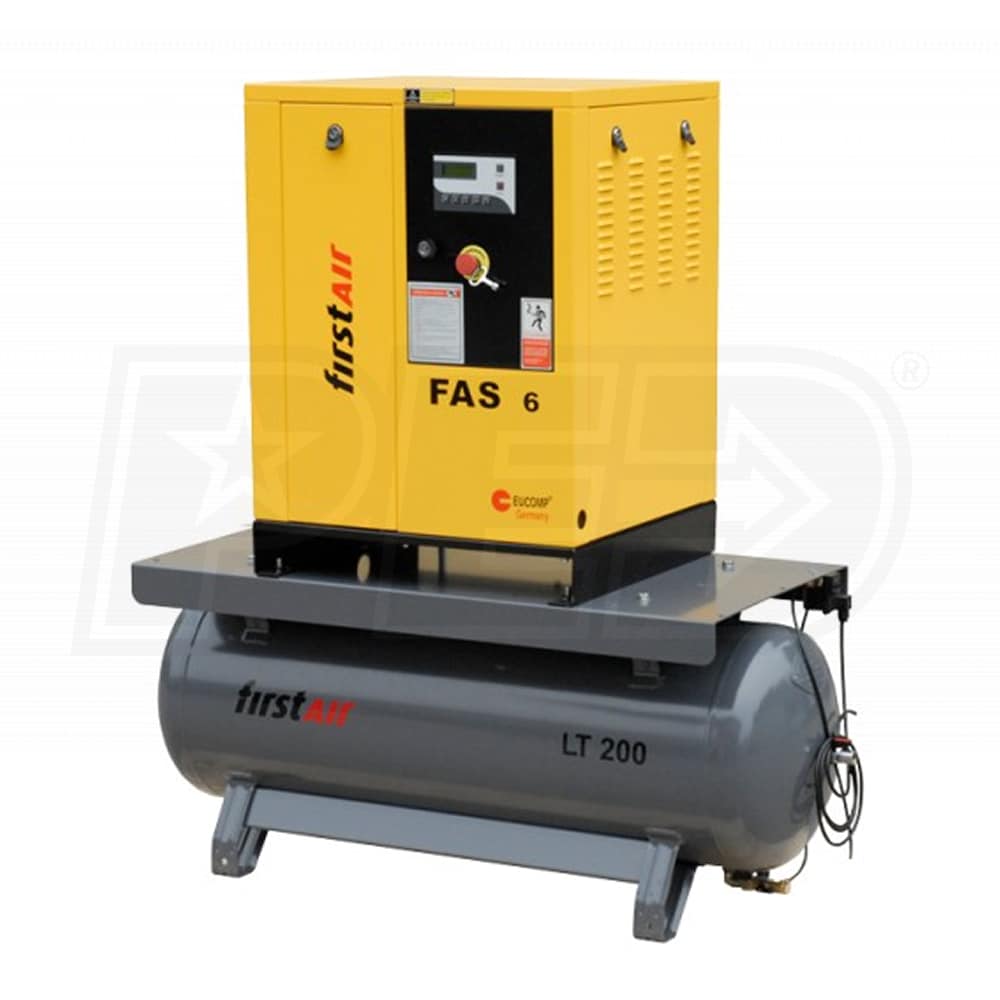

First Air FAS6T 7.5-HP 53-Gallon Rotary Screw Air Compressor (230V 1-Phase 150PSI)

Model:

FAS061T

Write A Review

$6,415.00

Free Shipping

*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.

Factory-Direct

Ships in 2-5 Business Days

First Air FAS6T 7.5-HP 53-Gallon Rotary Screw Air Compressor (230V 1-Phase 150PSI)

Model: FAS061T

$6,415.00

Accessories

Features

Specifications

Reviews

Product Q&A

How-To Articles

Manuals

Expert Recommended Accessories Selected by Joshua, our Expert

Required Accessories 9

These accessories are required to properly setup/install this product.

Optional Accessories 10

Features

Grade

Commercial

Voltage

230 Volt AC

Phase

1-Phase

CFM

23.4

Tank Size

53

Premium Rotary Air System
Designed for industrial applications; Economical operation is guaranteed
High quality components ensures durability with constantly high efficiency
Energy Efficient Electric Motor
Explicitly developed for high loads within industrial applications
Equipped with energy efficiency driving motors class IE3, protection class IP55, insulation class F
Continuous 100% Duty Cycle
Runs your application efficiently 24/7
High Performance Inlet Filter
Prevents contaminants from entering the compressor package
Particles are filtered in two stages: first by centrifugal forces and second by a high efficiency filter element.
53 Gallon Air Receiver w/ Low Noise Sound Enclosure For Quiet Operation
Reduces sounds levels to as low as 65±3 dBA; about the same as a normal conversation
Service can be conducted quickly and safely from all 4 sides
High-Efficiency Air Cooling System
Constructed and measured to be ran up to a room temperature of +45°C
Improves longevity and reliability
Integrated Oil Separator
Guarantees excellent compressed air quality with a remaining oil content of < 3mg/m3
Oil level can be controlled at all times through inspection glass
1 Year Factory Warranty-Parts Only

California residents see

Warning: This product can expose you to chemicals including Cumene which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.

For more information go to: www.p65Warnings.ca.gov

Specifications

FAS061T

General Information

Product Category

Air Compressor - Stationary

Engine

7.5

Motor

Voltage

230 Volt AC

Phase

1-Phase

dBA

Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.

Magnetic Starter

The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.

Yes

Amp Draw

Consult Certified Electrician

Recommended Breaker

Consult Certified Electrician

Pump

CFM

Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications

23.4

CFM Rated @

150 PSI

Max PSI

PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver

150 PSI

Oil Sight Glass

Yes

Pump Type

Rotary

After Cooler

An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor

Yes

Pump Drive

Belt Drive

Oil Type

Oil Lubricated

Oil System

Splash Lubricated

Pump Low Oil Shut-off

Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor

Duty Cycle

100%

Tank

Tank Size

53 Gallons

Tank Included

Yes

Tank Outlet

1/2 Inch

Electronic Drain Valve

The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining

Tank Orientation

Horizontal

Accessories

Air Dryer

Overview

Product Category

Air Compressor - Stationary

Weight

783 Pounds

Consumer Warranty

1 Year

Commercial Warranty
