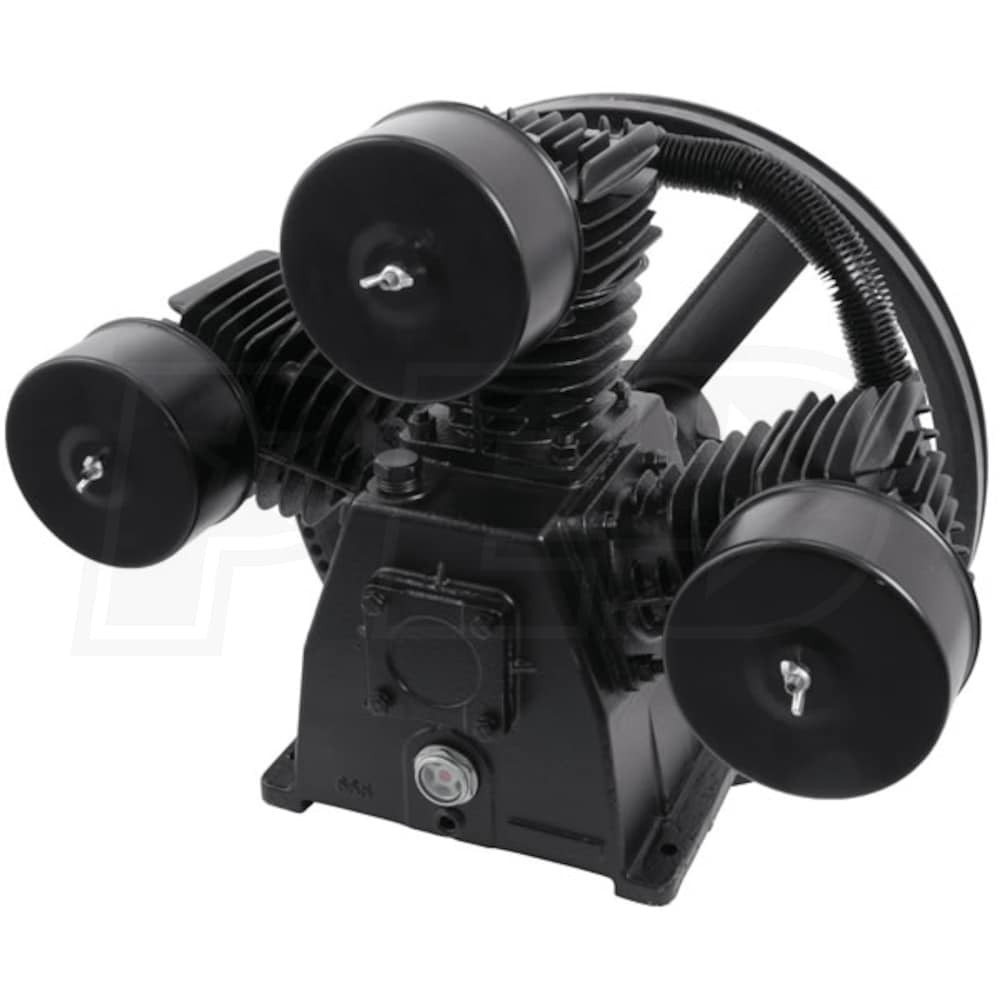

Industrial Air 4.7-HP Single-Stage Hi-Flo 3-Cylinder Replacement Air Compressor Pump (16.1 CFM @ 40 PSI)
Model:
040-0348RP
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Cast Iron Single Stage Hi-Flo 3-Cylinder Replacement Pump
- Produces 4.7 running horsepower
- Mounting pattern 8.43" W x 5.19" D (Depth)
- 4 bolting holes; 0.354 diameter per hole
- Provides maximum performance and efficiency
- High Performance 3 Cylinder Hi-Flo Pump
- Develops 16.1 CFM at 40 PSI & 14 CFM @ 90 PSI
- 3 large canister style air filters
- 1250 Maximum RPM
- Delivers high performance & longevity
- "A" (width) single v-belt
- Automotive-Style Ball Bearings
- Provide optimum performance & extended pump life
- Offers reliable stainless steel reed valves
- Rugged Cast Iron Flywheel & Crankcase
- Balanced for best performance & durability
- 12" Flywheel diameter

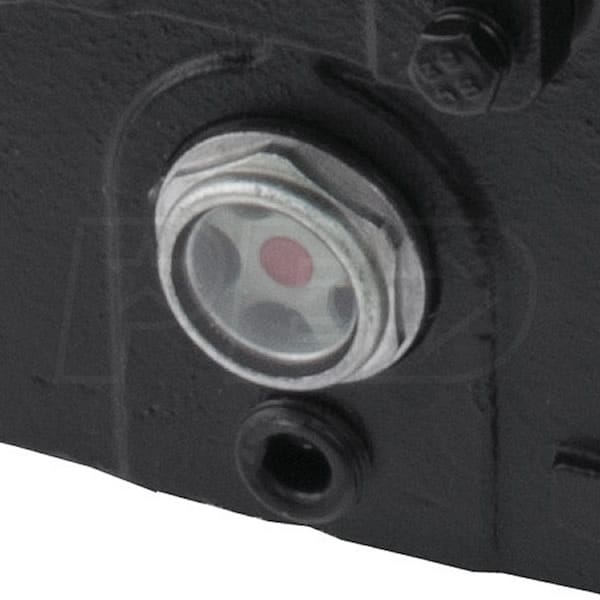

- Easy-To-Read Oil Level Sight Gauge
- Monitor pump oil level at a glance
- 33 oz. capacity oil reservoir (Pump oil not included)
- Compatibility
- Industrial Air, Magna Force, Powermate, Sanborn, Porter Cable and DeWalt
- Pump is not a direct replacement for any other brand
- 1-Year Residential Warranty / 90-Day Commercial Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
040-0348RP
General Information
Product Category
Air Compressor Parts
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
14
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Overview
Product Category
Air Compressor Parts
Weight
68 Pounds
Consumer Warranty
1 Year
Product Length
19 Inches
Product Width
11.18 Inches
Product Height
14.9 Inches
UPC
846212023679
