Industrial Air 6-HP Single-Stage Hi-Flo 3-Cylinder Replacement Air Compressor Pump (20.6 CFM @ 40 PSI)
Industrial Air 6-HP Single-Stage Hi-Flo 3-Cylinder Replacement Air Compressor Pump (20.6 CFM @ 40 PSI)
+
Share This Product
-
Product Description
-
1Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features

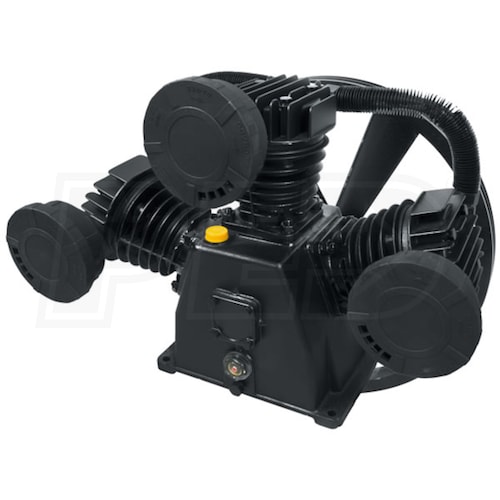

- Cast Iron Single Stage Hi-Flo 3-Cylinder Replacement Pump
- Provides maximum performance and efficiency
- Mounting patters 9.88" W x 6.75 D (Depth)
- 4 bolting holes; 0.44 diameter per hole
- Produces 6 running horsepower
- High Performance 3 Cylinder Hi-Flo Pump
- Develops 20.6 CFM at 40 PSI & 18.1 CFM @ 90 PSI
- 155 maximum PSI
- 3 large canister style air filters
- 800 Maximum RPM
- Delivers high performance & longevity
- "A" (width) single v-belt
- Rugged Cast Iron Flywheel & Crankcase
- Balanced for best performance & durability
- 16" Flywheel diameter
- Automotive-Style Ball Bearings
- Provide optimum performance & extended pump life
- Offers reliable stainless steel reed valves

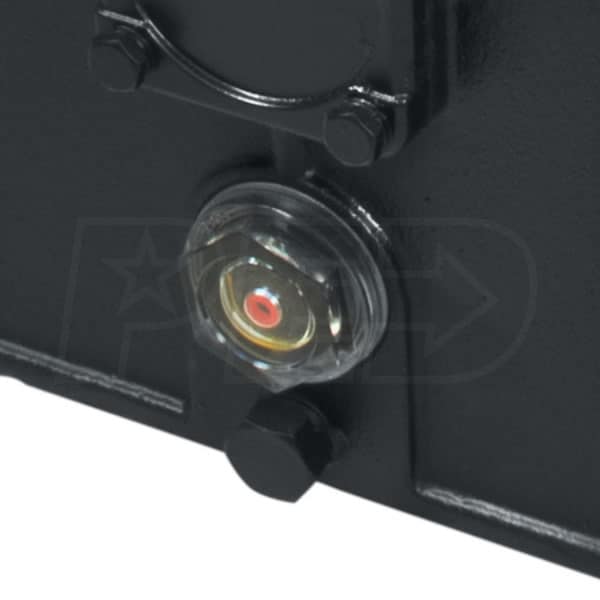

- Easy-To-Read Oil Level Sight Gauge
- Monitor pump oil level at a glance
- 44 oz. capacity oil reservoir (Pump oil not included)
- Compatibility
- Industrial Air and Industrial Air Contractor
- Pump is not a direct replacement for any other brand
Specifications
Pump
CFM
18.1
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Overview
Weight
114 Pounds
Consumer Warranty
1 Year
Product Length
22 Inches
Product Width
14.6 Inches
Product Height
16.6 Inches
UPC
846212023686
Features
Features
- Cast Iron Single Stage Hi-Flo 3-Cylinder Replacement Pump
- Provides maximum performance and efficiency
- Mounting patters 9.88" W x 6.75 D (Depth)
- 4 bolting holes; 0.44 diameter per hole
- Produces 6 running horsepower
- High Performance 3 Cylinder Hi-Flo Pump
- Develops 20.6 CFM at 40 PSI & 18.1 CFM @ 90 PSI
- 155 maximum PSI
- 3 large canister style air filters
- 800 Maximum RPM
- Delivers high performance & longevity
- "A" (width) single v-belt
- Rugged Cast Iron Flywheel & Crankcase
- Balanced for best performance & durability
- 16" Flywheel diameter
- Automotive-Style Ball Bearings
- Provide optimum performance & extended pump life
- Offers reliable stainless steel reed valves
- Easy-To-Read Oil Level Sight Gauge
- Monitor pump oil level at a glance
- 44 oz. capacity oil reservoir (Pump oil not included)
- Compatibility
- Industrial Air and Industrial Air Contractor
- Pump is not a direct replacement for any other brand
Specifications
Pump
CFM
18.1
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Overview
Weight
114 Pounds
Consumer Warranty
1 Year
Product Length
22 Inches
Product Width
14.6 Inches
Product Height
16.6 Inches
UPC
846212023686
Product Specs
+−
Specifications
Pump
CFM
18.1
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Overview
Weight
114 Pounds
Consumer Warranty
1 Year
Product Length
22 Inches
Product Width
14.6 Inches
Product Height
16.6 Inches
UPC
846212023686
