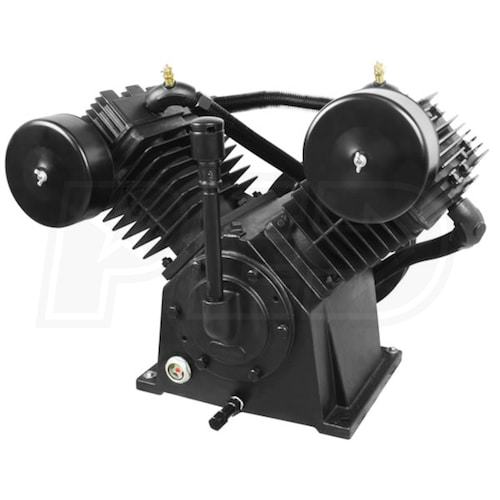

Industrial Air 10-HP 2-Stage V-Twin Replacement Air Compressor Pump (35 CFM @ 100 PSI)

Model:

040-0446RP

Write A Review
$1,249.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships from Industrial Air
Shipping to60601

Industrial Air 10-HP 2-Stage V-Twin Replacement Air Compressor Pump (35 CFM @ 100 PSI)
Industrial Air 10-HP 2-Stage V-Twin Replacement Air Compressor Pump (35 CFM @ 100 PSI)
Model: 040-0446RP
$1,249.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Cast Iron 2-Stage Inline V-Twin Replacement Pump
  • Produces 10 running horsepower
  • Mounting patterns 12.9" W x 9.4" D (Depth)
  • 4 bolting holes; 0.55 diameter per hole
  • Provides maximum performance and efficiency
  • Impressive 4 Cylinder Pump
  • Develops 35 CFM at 100 PSI & 33.6 CFM @ 175 PSI
  • 175 maximum PSI
  • 2 large canister style air filters
  • 800 Maximum RPM
  • Delivers high performance & longevity
  • "B" (width) double v-belt
  • Automotive-Style Ball Bearings
  • Provide optimum performance & extended pump life
  • Offers reliable stainless steel reed valves
  • Rugged Cast Iron Flywheel & Crankcase
  • Balanced for best performance & durability
  • 12" Flywheel diameter (23" with fan)

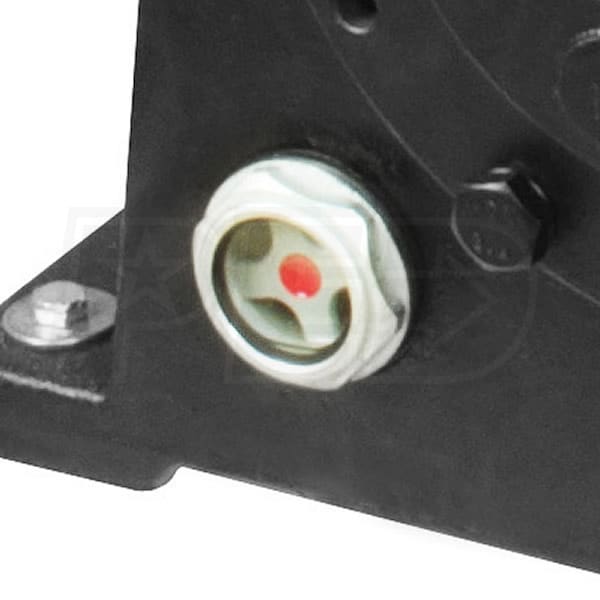

  • Easy-To-Read Oil Level Sight Gauge
  • Monitor pump oil level at a glance
  • 104 oz. capacity oil reservoir (Pump oil not included)
  • Compatibility
  • Industrial Air and DeWalt
  • Pump is not a direct replacement for any other brand
  • 1-Year Residential Warranty / 90-Day Commercial Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

040-0446RP
specs product image PID-57816
Engine
HP
10
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
35
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Overview
Product Category
Air Compressor Parts
Weight
215 Pounds
Consumer Warranty
1 Year
Product Length
24.8 Inches
Product Width
22.6 Inches
Product Height
18.9 Inches
UPC
846212023716
