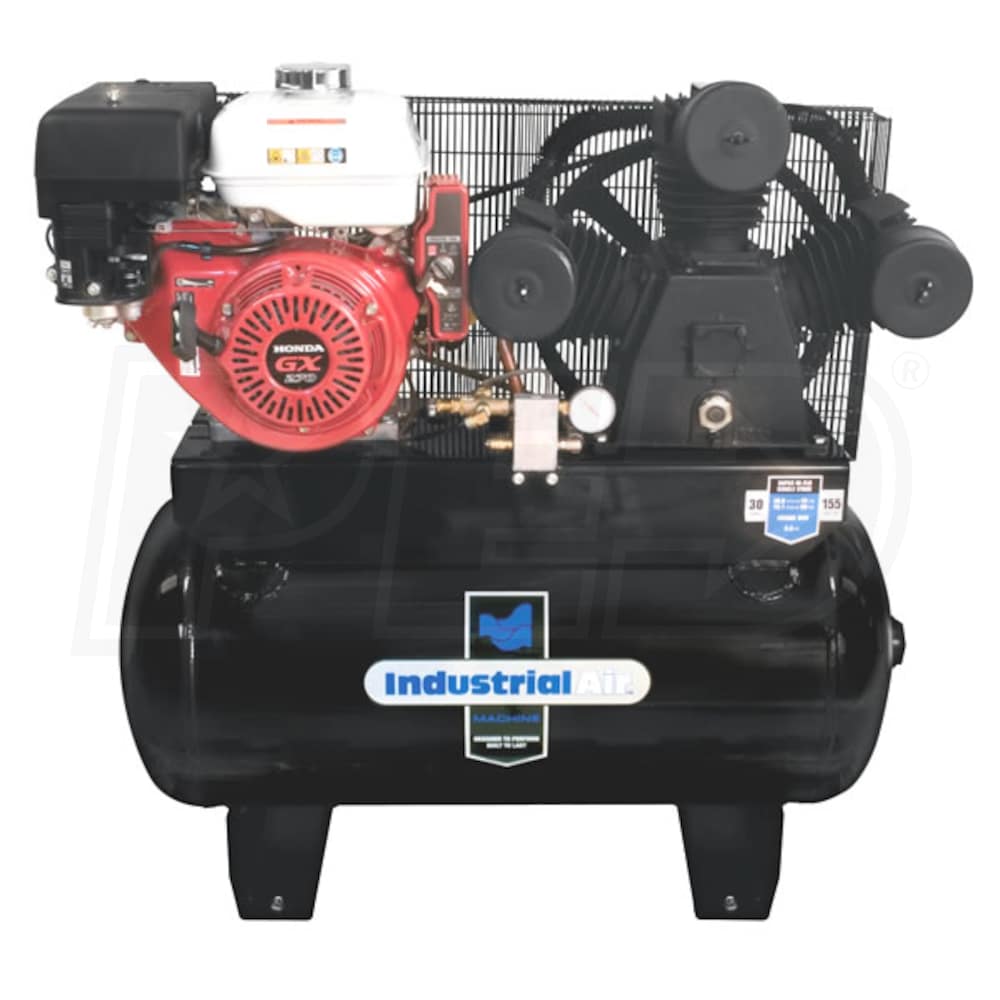

Industrial Air 9-HP 30-Gallon Truck Mount Air Compressor w/ Electric Start Honda Engine

Model:

IHA9093080.ES

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Industrial Air 9-HP 30-Gallon Truck Mount Air Compressor w/ Electric Start Honda Engine
Industrial Air 9-HP 30-Gallon Truck Mount Air Compressor w/ Electric Start Honda Engine
Model: IHA9093080.ES
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Engine Brand

Honda GX

CFM

18

Tank Size

30



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • 9-HP Electric-Start Honda GX Commercial Grade Engine
  • Powerful, quiet, & easy to start (battery & cables not included)
  • Meets stringent California CARB emissions standards
  • 3-Amp Charging System
  • Start the compressor without needing to yank on a pull-rope
  • 1.58 Gallon Fuel Tank
  • Work longer without stopping for fill-ups
  • Cast Iron 3-Cylinder Pump
  • Puts out 18 SCFM at 90 PSI to power many air tools
  • Easily accessible oil fill & drain makes maintenance simple
  • 16 Inch Cast-Iron Balanced Flywheel
  • Helps move cooling air around the pump for maximum pump life
  • Unique Metal Belt Guard
  • Improves pump cooling by up to 60°F over regular belt guards
  • Low Oil Engine Shutoff
  • Protects your investment
  • Includes synthetic oil for best performance & reliability
  • 30 Gallon Air Tank
  • Easy to read gauge & 2 air outlets to run multiple tools
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

IHA9093080.ES
specs product image PID-11765
General Information
Product Category
Air Compressor - Portable
Engine
HP
9
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Button Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
18
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
380 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
46 Inches
Product Width
23.7 Inches
Product Height
43.7 Inches
Power Type
Gas
UPC
846212004098
