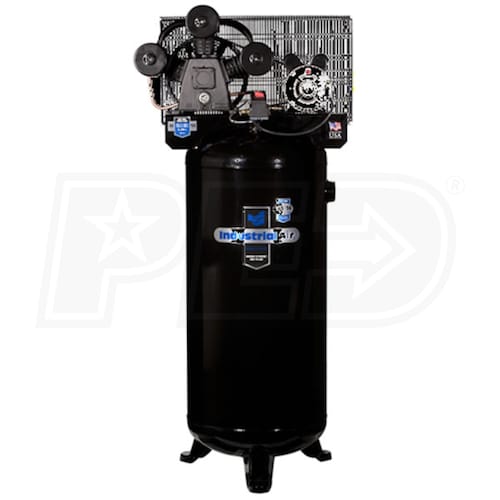

Industrial Air 4.7-HP 60-Gallon (Belt Drive) Hi-Flo Cast Iron Air Compressor (240 Volt 1-Phase)
Model: ILA4546065
+
Share This Product
-
Product Description
-
Reviews
-
2Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

CFM
14
CFM Rated @ 90 PSI
Tank Size
60
Gallons
Grade
Consumer
CFM
14 CFM Rated @ 90 PSI
Tank Size
60 Gallons
Features
Features
- High Air Flow Single Stage Air Compressor
- Delivers 16.1 CFM at 40 PSI, 14 CFM at 90 PSI; 155 PSI maximum
- 12" cast iron balanced fly wheel provides smooth power transfer
- Cast Iron, Three-Cylinder, Oil Lubricated Pump
- Durable 1-piece cast iron crankcase & full cast iron cylinder body
- Sturdy Swedish stainless steel flex leaf valves for long pump life
- Oil level sight glass & easily accessible oil fill simplify maintenance
- 4.7 HP Electric Motor
- Magnetic starter not required
- Full Metal Belt Guard
- Protects moving parts from damage
- 60-Gallon ASME Vertical Air Receiver
- Provides more air for longer run times on air tools
- Synthetic Oil Included
- Designed for optimum performance and long life
- 2 Year Limited Warranty
- Protects your investment
Specifications
Engine
HP
4.7
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
22
Recommended Breaker
30 Amp Breaker
Pump
CFM
14
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
60 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
287 Pounds
Consumer Warranty
2 Years
Product Length
37 Inches
Product Width
29 Inches
Product Height
73 Inches
Power Type
Electric
UPC
846212001578
Grade

Style

CFM
14
CFM Rated @ 90 PSI
Tank Size
60
Gallons
Grade
Consumer
CFM
14 CFM Rated @ 90 PSI
Tank Size
60 Gallons
Features
Features
- High Air Flow Single Stage Air Compressor
- Delivers 16.1 CFM at 40 PSI, 14 CFM at 90 PSI; 155 PSI maximum
- 12" cast iron balanced fly wheel provides smooth power transfer
- Cast Iron, Three-Cylinder, Oil Lubricated Pump
- Durable 1-piece cast iron crankcase & full cast iron cylinder body
- Sturdy Swedish stainless steel flex leaf valves for long pump life
- Oil level sight glass & easily accessible oil fill simplify maintenance
- 4.7 HP Electric Motor
- Magnetic starter not required
- Full Metal Belt Guard
- Protects moving parts from damage
- 60-Gallon ASME Vertical Air Receiver
- Provides more air for longer run times on air tools
- Synthetic Oil Included
- Designed for optimum performance and long life
- 2 Year Limited Warranty
- Protects your investment
Specifications
Engine
HP
4.7
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
22
Recommended Breaker
30 Amp Breaker
Pump
CFM
14
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
60 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
287 Pounds
Consumer Warranty
2 Years
Product Length
37 Inches
Product Width
29 Inches
Product Height
73 Inches
Power Type
Electric
UPC
846212001578
Product Specs
+−
Specifications
Engine
HP
4.7
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
22
Recommended Breaker
30 Amp Breaker
Pump
CFM
14
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
60 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
287 Pounds
Consumer Warranty
2 Years
Product Length
37 Inches
Product Width
29 Inches
Product Height
73 Inches
Power Type
Electric
UPC
846212001578
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(2)
+−

Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
What RPM does this compressor run?
Ray D.
from Ohio
March 09, 2019
Answer
The RPM of the pump is 1250 and the RPM of the motor is 3450.
Was this answer helpful?
Yes

1
No

0
+−
What is the duty cycle rating of this air compressor? Is it 100 percent?
Josh Y.
from Wisconsin
January 30, 2019
Answer
This compressor has a 50% duty cycle.
Was this answer helpful?
Yes

0
No

0
