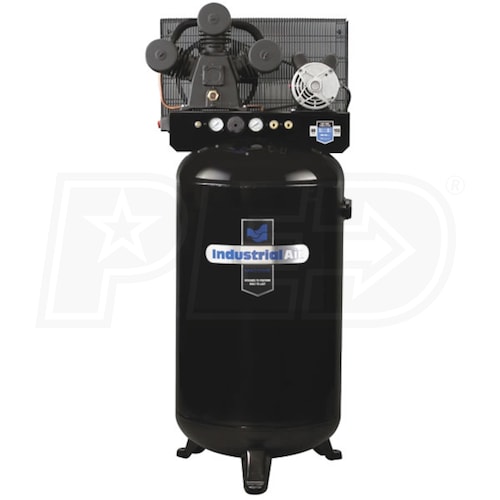

Industrial Air 4.7-HP 80-Gallon (Belt-Drive) Single Stage Air Compressor (230V 1-Phase)
Model: ILA4708065
+
Share This Product
-
Product Description
-
Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
14
CFM Rated @ 90 PSI
Tank Size
80
Gallons
Grade
Consumer
CFM
14 CFM Rated @ 90 PSI
Tank Size
80 Gallons
Features
Features
- Heavy Duty, Single Stage Compressor
- Powers a wide variety of air tools
- High air flow, single stage unit for hobbyists & contractors
- Cast Iron 3 Cylinder Pump
- Oil lubricated & sight glass for smooth operation & maintenance
- Delivers 16.1 CFM's @ 40 PSI & 14 CFM's @ 90 PSI
- 155 PSI max pressure for optimum tool performance
- Integrated Control Panel
- Easy access 2 quick connects, tank & tool pressure, relief valve
- Large Capacity 80 Gallon Air Receiver
- More air for longer run times; ASME approved for safety
- Easily powers ratchets, impacts, spray guns, hammers, etc.
- Shipped With Synthetic Oil
- Provides optimum performance & long pump life
- Vertical Tank
- 31.5L x 34.75W x 77H takes up less floor space
- Factory Warranty
- 1 year residential use; 90 days commercial use
- CSA certification provide peace of mind
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
22
Recommended Breaker
30 Amp Breaker
Engine
HP
4.5
Pump
CFM
14
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
354 Pounds
Consumer Warranty
1 Year
Commercial Warranty
90 Days
Product Length
31.5 Inches
Product Width
34.75 Inches
Product Height
77 Inches
Power Type
Electric
UPC
846212002599
Grade
Style
CFM
14
CFM Rated @ 90 PSI
Tank Size
80
Gallons
Grade
Consumer
CFM
14 CFM Rated @ 90 PSI
Tank Size
80 Gallons
Features
Features
- Heavy Duty, Single Stage Compressor
- Powers a wide variety of air tools
- High air flow, single stage unit for hobbyists & contractors
- Cast Iron 3 Cylinder Pump
- Oil lubricated & sight glass for smooth operation & maintenance
- Delivers 16.1 CFM's @ 40 PSI & 14 CFM's @ 90 PSI
- 155 PSI max pressure for optimum tool performance
- Integrated Control Panel
- Easy access 2 quick connects, tank & tool pressure, relief valve
- Large Capacity 80 Gallon Air Receiver
- More air for longer run times; ASME approved for safety
- Easily powers ratchets, impacts, spray guns, hammers, etc.
- Shipped With Synthetic Oil
- Provides optimum performance & long pump life
- Vertical Tank
- 31.5L x 34.75W x 77H takes up less floor space
- Factory Warranty
- 1 year residential use; 90 days commercial use
- CSA certification provide peace of mind
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
22
Recommended Breaker
30 Amp Breaker
Engine
HP
4.5
Pump
CFM
14
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
354 Pounds
Consumer Warranty
1 Year
Commercial Warranty
90 Days
Product Length
31.5 Inches
Product Width
34.75 Inches
Product Height
77 Inches
Power Type
Electric
UPC
846212002599
Product Specs
+−
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
22
Recommended Breaker
30 Amp Breaker
Engine
HP
4.5
Pump
CFM
14
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
354 Pounds
Consumer Warranty
1 Year
Commercial Warranty
90 Days
Product Length
31.5 Inches
Product Width
34.75 Inches
Product Height
77 Inches
Power Type
Electric
UPC
846212002599
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
When using the compressor, at what PSI does the motor kick on to refill, and what is the duty cycle of the pump?
Jeff
from Idaho
August 27, 2018
Answer
The cut-in pressure is 125 PSI, and the cut-out pressure is 155 PSI. The duty cycle is 75%.
