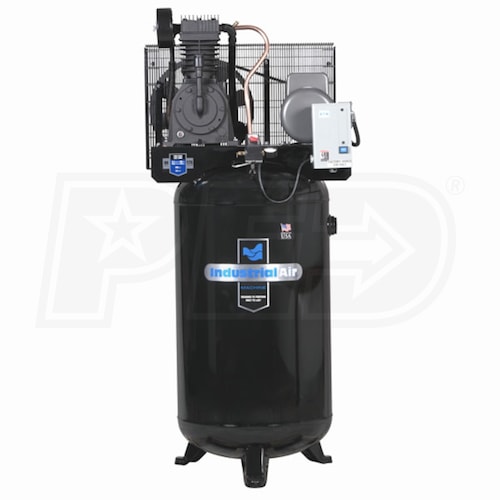

Industrial Air 5-HP 80-Gallon Two-Stage Air Compressor With Starter (230V 1-Phase)
Model: IV5018055
+
Share This Product
-
Product Description
-
2Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
17
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Consumer
CFM
17 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features

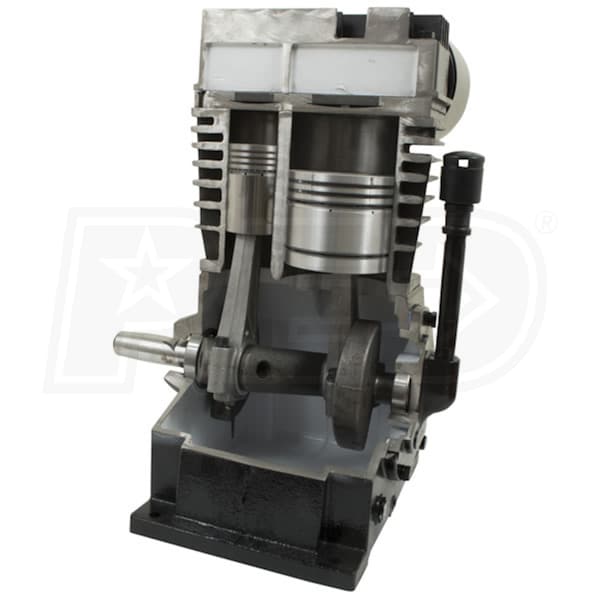

- Patented 2-Stage Pump Design
- Runs cooler, lasts longer
- Patented Piston Design
- Improved compression efficiency
- Patented Asymmetrical Cooling Fins
- Draws heat away from the precision bored cylinders
- Patented Cast Iron Flywheel
- Large, extended fins improve pump cooling & lower RPMs
- Baldor Industrial Class Electric Motor
- High quality 4 pole, 1725 RPM, NEMA rated
- Wires easily into your 240 volt, single phase system
- Pre-Wired Magnetic Starter
- Saves time and money
- 80 Gallon ASME Tank
- Enough power to operate more than 1 tool at a time
- 17 CFM at 100 PSI; 16.2 CFM at 175 PSI; 3/4" air outlet
- Unique Metal Belt Guard Design
- Improves pump cooling by as much as 60% over other designs
- 2 Year Factory Warranty
- Purchase & use of maintenance kit doubles the pump warranty
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
22
Recommended Breaker
Engine
HP
5
Pump
CFM
17
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
570 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
37 Inches
Product Width
29 Inches
Product Height
77.25 Inches
Power Type
Electric
UPC
846212008102
Grade
Style
CFM
17
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Consumer
CFM
17 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Patented 2-Stage Pump Design
- Runs cooler, lasts longer
- Patented Piston Design
- Improved compression efficiency
- Patented Asymmetrical Cooling Fins
- Draws heat away from the precision bored cylinders
- Patented Cast Iron Flywheel
- Large, extended fins improve pump cooling & lower RPMs
- Baldor Industrial Class Electric Motor
- High quality 4 pole, 1725 RPM, NEMA rated
- Wires easily into your 240 volt, single phase system
- Pre-Wired Magnetic Starter
- Saves time and money
- 80 Gallon ASME Tank
- Enough power to operate more than 1 tool at a time
- 17 CFM at 100 PSI; 16.2 CFM at 175 PSI; 3/4" air outlet
- Unique Metal Belt Guard Design
- Improves pump cooling by as much as 60% over other designs
- 2 Year Factory Warranty
- Purchase & use of maintenance kit doubles the pump warranty
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
22
Recommended Breaker
Engine
HP
5
Pump
CFM
17
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
570 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
37 Inches
Product Width
29 Inches
Product Height
77.25 Inches
Power Type
Electric
UPC
846212008102
Product Specs
+−
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
22
Recommended Breaker
Engine
HP
5
Pump
CFM
17
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
570 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
37 Inches
Product Width
29 Inches
Product Height
77.25 Inches
Power Type
Electric
UPC
846212008102
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
What brand are the compressors used in these units, and are all the 5 hp motors Baldor brand?
Matt
from Missouri
December 13, 2018
Answer
The pump on the unit listed is imported from overseas. The motor on the unit is a Baldor.
