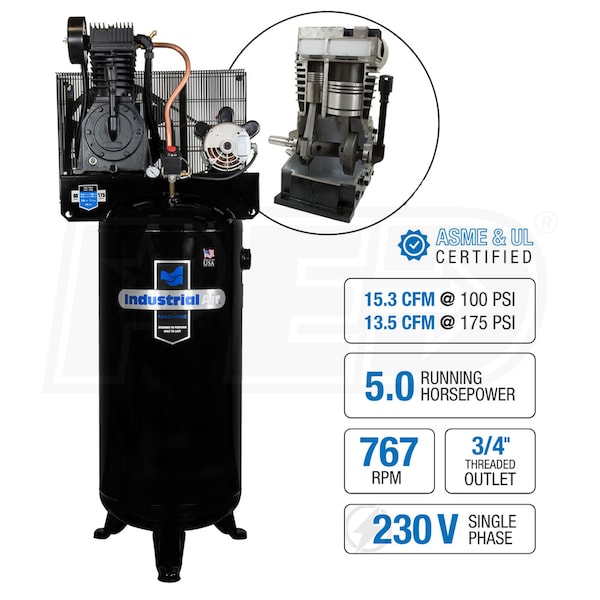

Industrial Air 5-HP 60-Gallon Two-Stage Air Compressor (230V 1-Phase)
Model: IV5076055
+
Share This Product
-
Product Description
-
15Reviews
-
3Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

CFM
15.3
CFM Rated @ 100 PSI
Tank Size
60
Gallons
Grade
Commercial
CFM
15.3 CFM Rated @ 100 PSI
Tank Size
60 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features

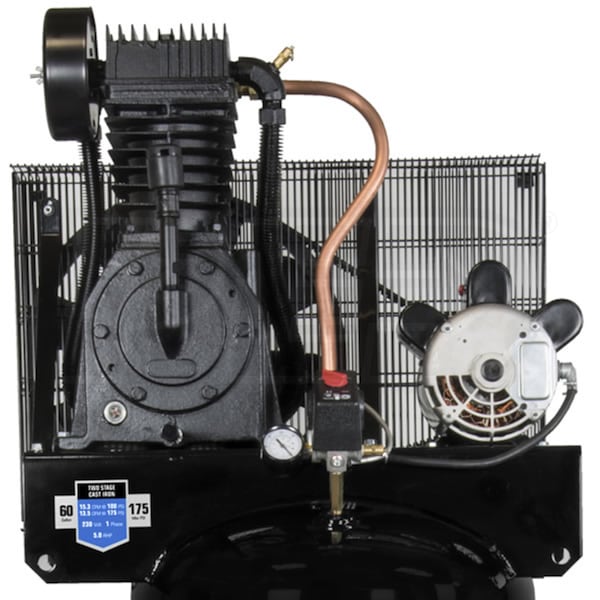

- Patented 2-Stage Pump Design
- Runs cooler, lasts longer
- Patented Piston Design
- Improved compression efficiency for optimum performance
- High efficiency finned copper intercooler increases valve life
- Patented Asymmetrical Cooling Fins
- Draws heat away from the precision bored cylinders
- Patented Cast Iron Flywheel
- Large, extended fins improve pump cooling & lower RPMs
- Electric Motor With Thermal Overload Protection
- Protects the motor from voltage fluctuations
- Wires easily into your 240 volt, single phase system
- Magnetic starter not required
- Compact 60-Gallon ASME Air Tank
- 15.3 CFM at 100 PSI; 13.5 CFM at 175 PSI; 3/4" air outlet
- Optimizes shop space compared to a horizontal tank
- Unique Metal Belt Guard Design
- Improves pump cooling by as much as 60% over other designs
- 2 Year Factory Warranty
- Protects your investment
Specifications
Engine
HP
5
Motor
Voltage
230 Volt AC
Phase
1-Phase
Amp Draw
22
Recommended Breaker
30 Amp Breaker
Pump
CFM
15.3
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
60 Gallons
Tank Outlet
3/4 Inch
Tank Orientation
Vertical
Accessories
Air Dryer
No
Air Filter
No
Overview
Weight
424 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
40 Inches
Product Width
31 Inches
Product Height
80 Inches
Power Type
Electric
UPC
846212057704
Grade

Style

CFM
15.3
CFM Rated @ 100 PSI
Tank Size
60
Gallons
Grade
Commercial
CFM
15.3 CFM Rated @ 100 PSI
Tank Size
60 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Patented 2-Stage Pump Design
- Runs cooler, lasts longer
- Patented Piston Design
- Improved compression efficiency for optimum performance
- High efficiency finned copper intercooler increases valve life
- Patented Asymmetrical Cooling Fins
- Draws heat away from the precision bored cylinders
- Patented Cast Iron Flywheel
- Large, extended fins improve pump cooling & lower RPMs
- Electric Motor With Thermal Overload Protection
- Protects the motor from voltage fluctuations
- Wires easily into your 240 volt, single phase system
- Magnetic starter not required
- Compact 60-Gallon ASME Air Tank
- 15.3 CFM at 100 PSI; 13.5 CFM at 175 PSI; 3/4" air outlet
- Optimizes shop space compared to a horizontal tank
- Unique Metal Belt Guard Design
- Improves pump cooling by as much as 60% over other designs
- 2 Year Factory Warranty
- Protects your investment
Specifications
Engine
HP
5
Motor
Voltage
230 Volt AC
Phase
1-Phase
Amp Draw
22
Recommended Breaker
30 Amp Breaker
Pump
CFM
15.3
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
60 Gallons
Tank Outlet
3/4 Inch
Tank Orientation
Vertical
Accessories
Air Dryer
No
Air Filter
No
Overview
Weight
424 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
40 Inches
Product Width
31 Inches
Product Height
80 Inches
Power Type
Electric
UPC
846212057704
Product Specs
+−
Specifications
Engine
HP
5
Motor
Voltage
230 Volt AC
Phase
1-Phase
Amp Draw
22
Recommended Breaker
30 Amp Breaker
Pump
CFM
15.3
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
60 Gallons
Tank Outlet
3/4 Inch
Tank Orientation
Vertical
Accessories
Air Dryer
No
Air Filter
No
Overview
Weight
424 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
40 Inches
Product Width
31 Inches
Product Height
80 Inches
Power Type
Electric
UPC
846212057704
Product Q&A
(3)
+−

Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
Does it have an automatic "low oil shut off"?
Steven E.
from Montana
December 29, 2019
Answer
This unit does not have that feature.
Was this answer helpful?
Yes

0
No

0
+−
What size air hose is required for this compressor? The description says 3/4 inch outlet at the tank.
Joe
from Texas
October 09, 2019
Answer
These are set up to be hard piped. It is recommended to go with the same size as the air outlet or larger. If you wanted to utilize one of the air hoses we carry, then 1/2" would be the only option and as long as the compressor is sized correctly there will be no issues utilizing the 1/2" hose.
Was this answer helpful?
Yes

0
No

1
+−
What is the motor RPM?
Kevin
from Texas
December 06, 2018
Answer
The motor runs at 3450 RPM.
Was this answer helpful?
Yes

0
No

0
