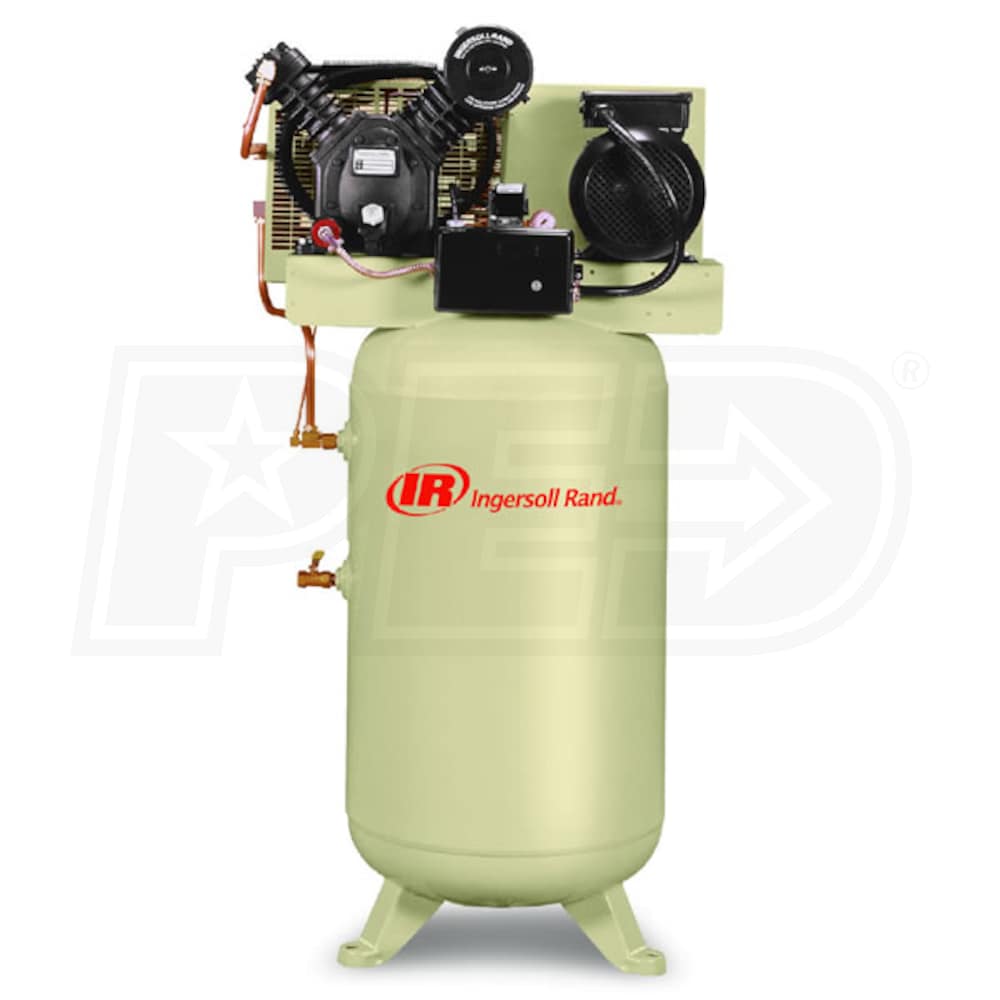

Ingersoll Rand Type 30 5-HP 80-Gallon Two-Stage Air Compressor (208V 3-Phase), Fully Packaged
Model: 2475N5-200.3-FP
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
$2,739.99
Free Shipping
Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $75.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Phase
Volts
Available Add-Ons
+$75.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • 1
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 3-Phase (208 Volts)
CFM
16.8
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
16.8 CFM Rated @ 175 PSI
Tank Size
80 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features

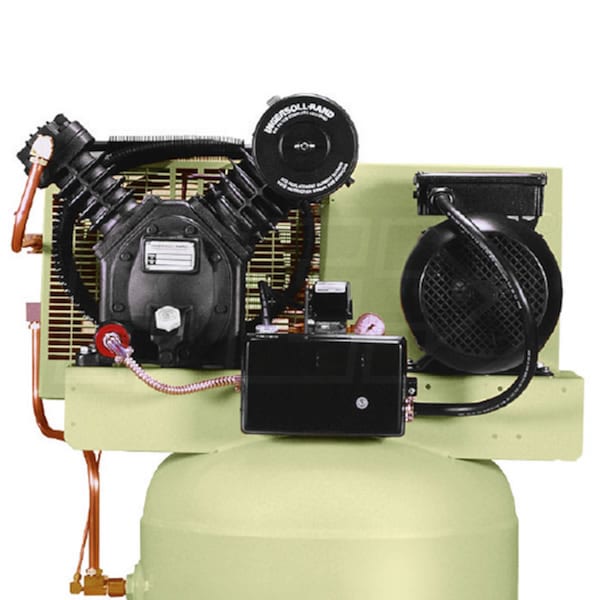

  • Fully Packaged
  • E-series motor starter (mounted & wired)
  • Relief valve & discharge ball valve (mounted & piped)
  • Air cooled aftercooler (mounted & piped)
  • Low oil level shutdown switch (mounted & wired)
  • Electric drain valve (mounted & piped)
  • Automatic start/stop control with pressure switch
  • Continuous-Duty Operation
  • 100% cast-iron cylinders and pump
  • Oversized cast-iron balanced belt wheel
  • Oversized industrial-grade bearings
  • V-Block Deep Finned Cylinders
  • Provides 360° cooling for lower operating temperature
  • OSHA Compliant
  • Fully enclosed flywheel, belt and motor sheave
  • Fully Tested
  • All units are prewired and throughly tested prior to shipment
  • American Pride
  • Proudly built in the U.S.A.
  • Ingersoll Rand Reciprocating Compressors Ship Dry
Specifications
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
17.5
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
16.8
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Overview
Weight
500 Pounds
Certification
ASME/UL/CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
26 Inches
Product Width
38 Inches
Product Height
70 Inches
Power Type
Electric
UPC
678384652674
Grade
Commercial
Style
Two Stage 3-Phase (208 Volts)
CFM
16.8
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
16.8 CFM Rated @ 175 PSI
Tank Size
80 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Fully Packaged
  • E-series motor starter (mounted & wired)
  • Relief valve & discharge ball valve (mounted & piped)
  • Air cooled aftercooler (mounted & piped)
  • Low oil level shutdown switch (mounted & wired)
  • Electric drain valve (mounted & piped)
  • Automatic start/stop control with pressure switch
  • Continuous-Duty Operation
  • 100% cast-iron cylinders and pump
  • Oversized cast-iron balanced belt wheel
  • Oversized industrial-grade bearings
  • V-Block Deep Finned Cylinders
  • Provides 360° cooling for lower operating temperature
  • OSHA Compliant
  • Fully enclosed flywheel, belt and motor sheave
  • Fully Tested
  • All units are prewired and throughly tested prior to shipment
  • American Pride
  • Proudly built in the U.S.A.
  • Ingersoll Rand Reciprocating Compressors Ship Dry
Specifications
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
17.5
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
16.8
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Overview
Weight
500 Pounds
Certification
ASME/UL/CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
26 Inches
Product Width
38 Inches
Product Height
70 Inches
Power Type
Electric
UPC
678384652674
Product Specs
+
Specifications
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
17.5
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
16.8
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Overview
Weight
500 Pounds
Certification
ASME/UL/CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
26 Inches
Product Width
38 Inches
Product Height
70 Inches
Power Type
Electric
UPC
678384652674
Reviews
(1)
+
Ingersoll Rand 2475N5-200.3-FP Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Joshua. the Air Compressor Expert
icon-social-fb1
+
What does "fully packaged" mean? I notice the cost is about $600 more than the item that does not say "fully packaged."
David G.
from Texas
September 27, 2019
Answer
Below is a picture in regards to all the features a fully packaged unit will have.

Items Included in the Fully Packaged Product
