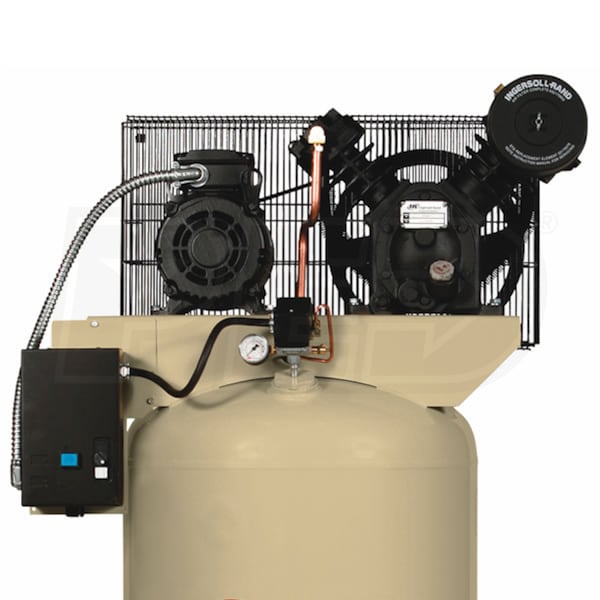

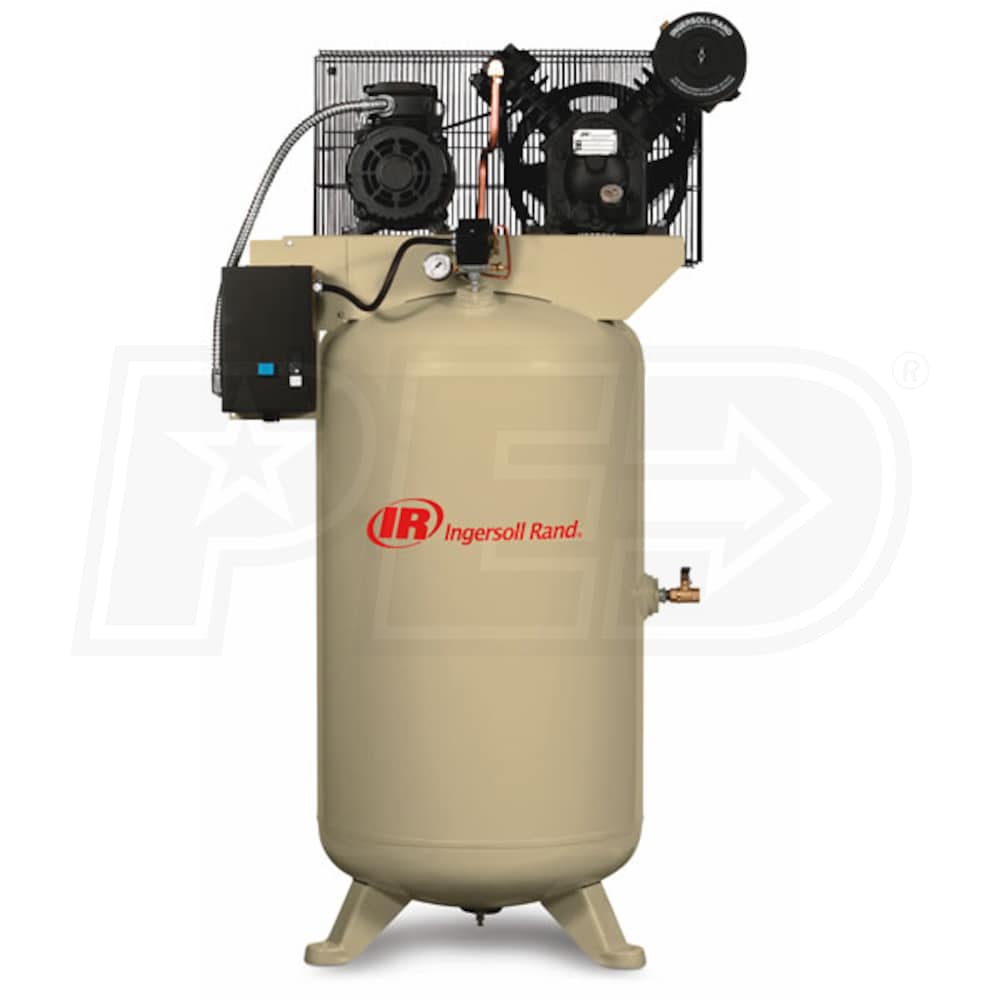

Ingersoll Rand Type 30 7.5-HP 80-Gallon Two-Stage Air Compressor (460V 3-Phase)

Model:

2475N7.5-460

Write a Review
$2,793.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 16-20 Weeks
Ingersoll Rand Type 30 7.5-HP 80-Gallon Two-Stage Air Compressor (460V 3-Phase)
Ingersoll Rand Type 30 7.5-HP 80-Gallon Two-Stage Air Compressor (460V 3-Phase)
Model: 2475N7.5-460
$2,793.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Style

Two Stage 3-Phase (460 Volts)

CFM

24

Tank Size

80



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Continuous-Duty Operation
  • 100% cast-iron cylinders and pump
  • Oversized cast-iron balanced belt wheel
  • Oversized industrial-grade bearings
  • High Efficiency Parts
  • High-efficiency stainless steel valves
  • High-efficiency intercooler
  • High-efficiency inlet air filters with sound attenuation baffles
  • 2-Piece Connection Rods
  • Less moving parts increases reliability
  • High-Efficiency Intercooler
  • Lowers compressed air temperature and reduces condensation
  • OSHA Compliant
  • Fully enclosed flywheel, belt and motor sheave
  • Fully Tested
  • All units are prewired and thoroughly tested prior to shipment
  • Ingersoll Rand Reciprocating Compressors Ship Dry
  • Use of the Ingersoll Rand Maintenance Kit extends the Factory Warranty by 1 year
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

2475N7.5-460
specs product image PID-739
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
11
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
24
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
500 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
26 Inches
Product Width
38 Inches
Product Height
70 Inches
Power Type
Electric
