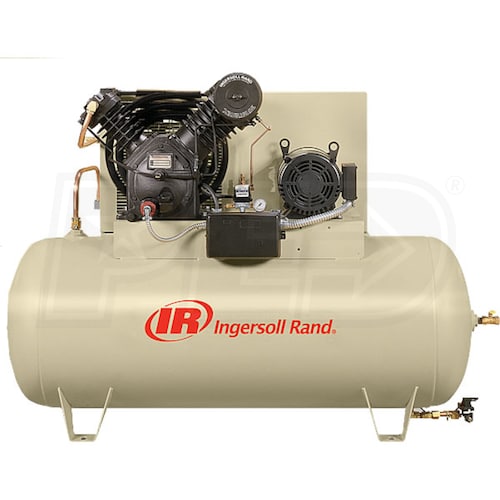

Ingersoll Rand 10-HP 120-Gallon Two-Stage Air Compressor (208V 3-Phase) Fully Packaged

Model:

2545E10-FP-200

Write a Review
$5,089.99
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 3-4 Weeks

Ingersoll Rand 10-HP 120-Gallon Two-Stage Air Compressor (208V 3-Phase) Fully Packaged
Ingersoll Rand 10-HP 120-Gallon Two-Stage Air Compressor (208V 3-Phase) Fully Packaged
Model: 2545E10-FP-200
$5,089.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Style

Two Stage 3-Phase (208 Volts)

CFM

35

Tank Size

120



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Fully Packaged
  • E-series motor starter (mounted & wired)
  • Relief valve & discharge ball valve (mounted & piped)
  • Air-cooled aftercooler (mounted & piped)
  • Low oil level shutdown switch (mounted & wired)

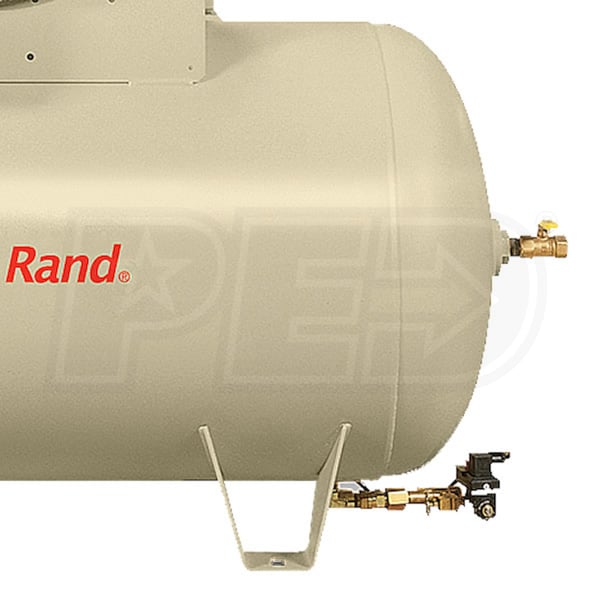

  • Electric drain valve (mounted & piped)
  • Dual control - start/stop or constant speed
  • Continuous-Duty Operation

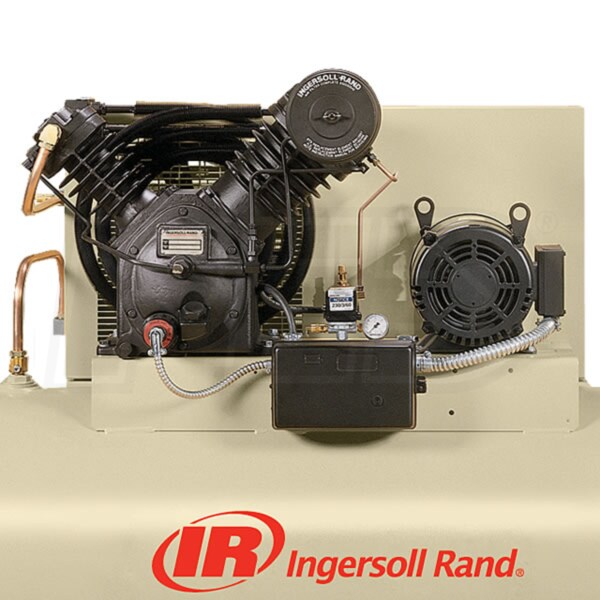

  • 100% cast-iron cylinders and pump
  • Pump life designed for over 15,000 hours of trouble-free use
  • Oversized cast-iron balanced belt wheel & industrial-grade bearings
  • V-Block Deep Finned Cylinders
  • Provides 360 degrees cooling for lower operating temperature
  • Individually cast cylinders and overhung crankshaft simplifies maintenance
  • Reliable Operation
  • Fully enclosed flywheel, belt and motor sheave
  • One-piece connecting rod for minimized downtime
  • American Pride
  • Proudly built in the U.S.A.
  • All units are prewired, OSHA compliant and thoroughly tested prior to shipment
  • 1-Year Factory Warranty
  • Ingersoll Rand Reciprocating Compressors Ship Dry
  • Extends to 2-yr warranty with Ingersoll Rand Maintenance Kit at time of purchase
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

2545E10-FP-200
specs product image PID-7999
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
32.2
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
35
CFM Rated @
175 PSI
CFM @ 90 PSI
35.6
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Overview
Weight
900 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
71 Inches
Product Width
31 Inches
Product Height
50 Inches
Power Type
Electric
UPC
678384659376
