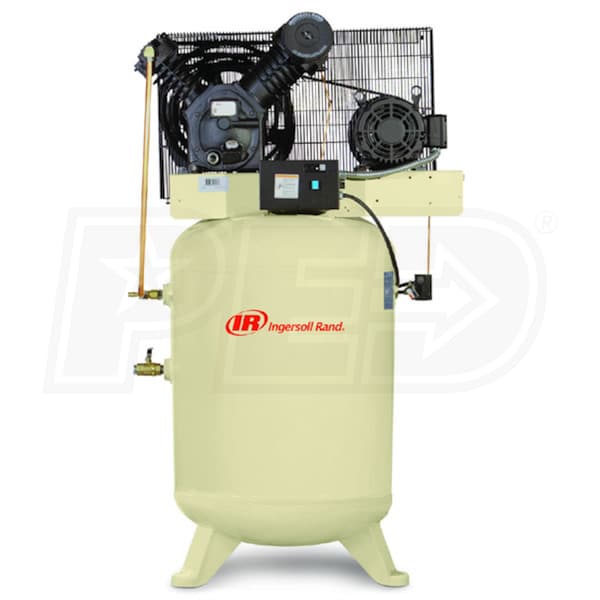

Ingersoll Rand 10-HP 120-Gallon Vertical Two-Stage Air Compressor (230V 3-Phase)
Model: 2545K10V-230
+
Share This Product
-
Product Description
-
2Reviews
-
2Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
35
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
35 CFM Rated @ 175 PSI
Tank Size
120 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

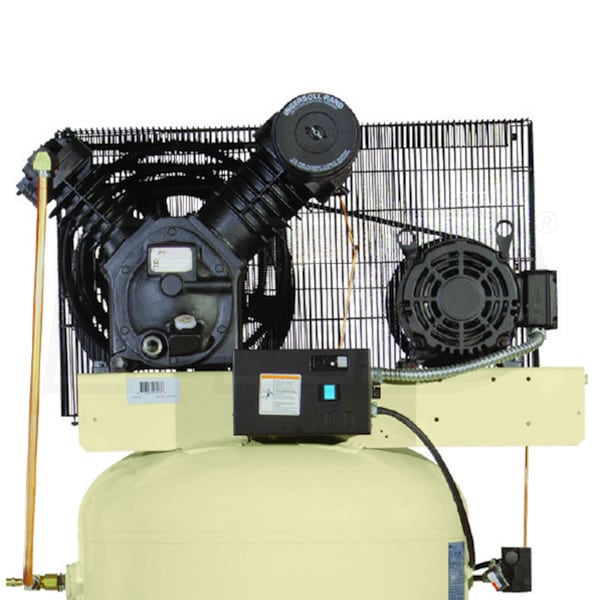

Features
Features
- Continuous-Duty Operation
- 100% cast-iron cylinders and pump
- Oversized cast-iron balanced belt wheel
- Oversized industrial-grade bearings
- High Efficiency Parts
- High-efficiency stainless steel valves
- High-efficiency intercooler
- High-efficiency inlet air filters with sound attenuation baffles
- 2-Piece Connection Rods
- Less moving parts increases reliability
- Air Cooled Intercooler
- Reduces compressed air temperature and condensation
- V-Block Deep Finned Cylinders
- Provides 360 degrees cooling for lower operating temperature
- OSHA Compliant
- Fully enclosed flywheel, belt and motor sheave
- Fully Tested; Built To Order
- All units are prewired and thoroughly tested prior to shipment; please allow 4-6 weeks for delivery
- Ingersoll Rand Reciprocating Compressors Ship Dry
- Use of the Ingersoll Rand Maintenance Kit extends the Factory Warranty by 1 year
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
26.6
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
35
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
1104 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
51 Inches
Product Width
46 Inches
Product Height
83 Inches
Power Type
Electric
UPC
678384657549
Grade
Style
CFM
35
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
35 CFM Rated @ 175 PSI
Tank Size
120 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Continuous-Duty Operation
- 100% cast-iron cylinders and pump
- Oversized cast-iron balanced belt wheel
- Oversized industrial-grade bearings
- High Efficiency Parts
- High-efficiency stainless steel valves
- High-efficiency intercooler
- High-efficiency inlet air filters with sound attenuation baffles
- 2-Piece Connection Rods
- Less moving parts increases reliability
- Air Cooled Intercooler
- Reduces compressed air temperature and condensation
- V-Block Deep Finned Cylinders
- Provides 360 degrees cooling for lower operating temperature
- OSHA Compliant
- Fully enclosed flywheel, belt and motor sheave
- Fully Tested; Built To Order
- All units are prewired and thoroughly tested prior to shipment; please allow 4-6 weeks for delivery
- Ingersoll Rand Reciprocating Compressors Ship Dry
- Use of the Ingersoll Rand Maintenance Kit extends the Factory Warranty by 1 year
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
26.6
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
35
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
1104 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
51 Inches
Product Width
46 Inches
Product Height
83 Inches
Power Type
Electric
UPC
678384657549
Product Specs
+−
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
26.6
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
35
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
1104 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
51 Inches
Product Width
46 Inches
Product Height
83 Inches
Power Type
Electric
UPC
678384657549
Product Q&A
(2)
+−
Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
Is there a single phase option on this compressor? I'm looking for a single phase 220v, 120gal, 10hp unit.
Josh
from Ohio
February 05, 2020
Answer
Ingersoll Rand only offers single phase option up to 7.5-HP units. Here are a couple comparable units: Industrial Air model IV9919910.183 and EMAX model EP10V120V1.
Was this answer helpful?
Yes
0
No
0
+−
Does it not come with the air filter and oil that is in the start up kit?
Glenda H.
from Kentucky
August 06, 2018
Answer
This unit ships dry. Here is the start-up kit that is needed with this unit: Ingersoll Rand 2545/7100 Electric Air Compressor Start Up Kit, Product # 32305898. This also extends the warranty by 1 year.
Was this answer helpful?
Yes
0
No
0
