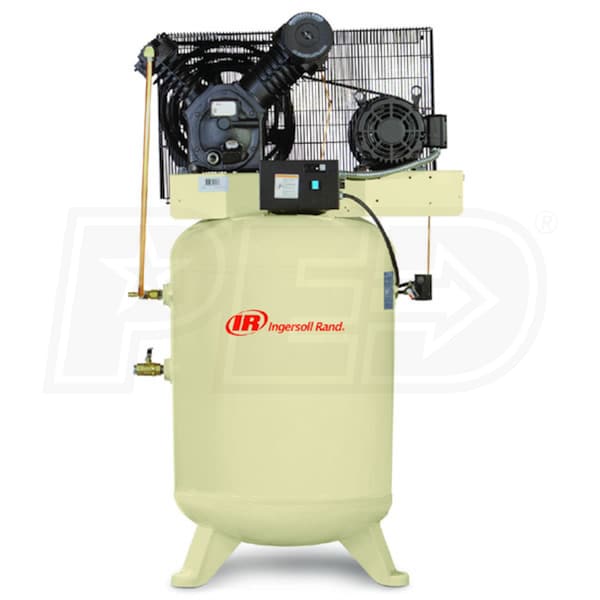

Ingersoll Rand 10-HP 120-Gallon Vertical Two-Stage Air Compressor (460V 3-Phase)

Model:

2545K10V-460

Write a Review
$3,269.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $75.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$75.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Ingersoll Rand 10-HP 120-Gallon Vertical Two-Stage Air Compressor (460V 3-Phase)
Ingersoll Rand 10-HP 120-Gallon Vertical Two-Stage Air Compressor (460V 3-Phase)
Model: 2545K10V-460
$3,269.99
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Grade

Commercial

Style

Two Stage 3-Phase (460 Volts)

CFM

35

Tank Size

120



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

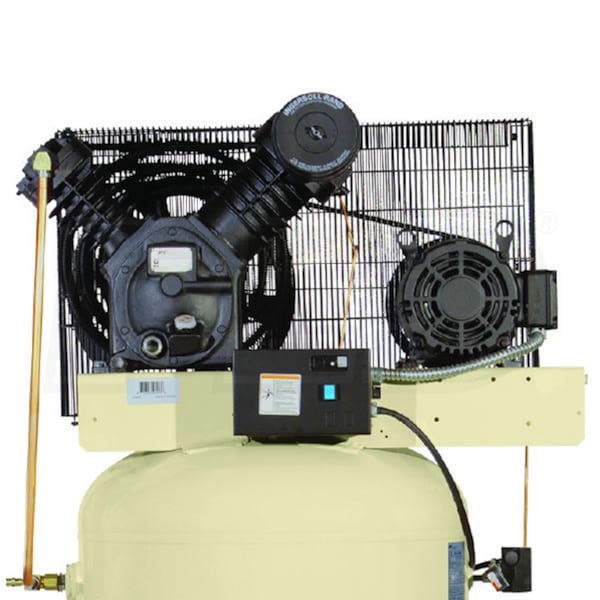

  • Continuous-Duty Operation
  • 100% cast-iron cylinders and pump
  • Oversized cast-iron balanced belt wheel
  • Oversized industrial-grade bearings
  • High Efficiency Parts
  • High-efficiency stainless steel valves
  • High-efficiency intercooler
  • High-efficiency inlet air filters with sound attenuation baffles
  • 2-Piece Connection Rods
  • Less moving parts increases reliability
  • Air Cooled Intercooler
  • Reduces compressed air temperature and condensation
  • V-Block Deep Finned Cylinders
  • Provides 360 degrees cooling for lower operating temperature
  • OSHA Compliant
  • Fully enclosed flywheel, belt and motor sheave
  • Fully Tested, Built To Order
  • All units are prewired and thoroughly tested prior to shipment; please allow 4-6 weeks for delivery
  • Ingersoll Rand Reciprocating Compressors Ship Dry
  • Use of the Ingersoll Rand Maintenance Kit extends the Factory Warranty by 1 year
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

2545K10V-460
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
14
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
35
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
1104 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
51 Inches
Product Width
46 Inches
Product Height
83 Inches
Power Type
Electric
UPC
678384657549
