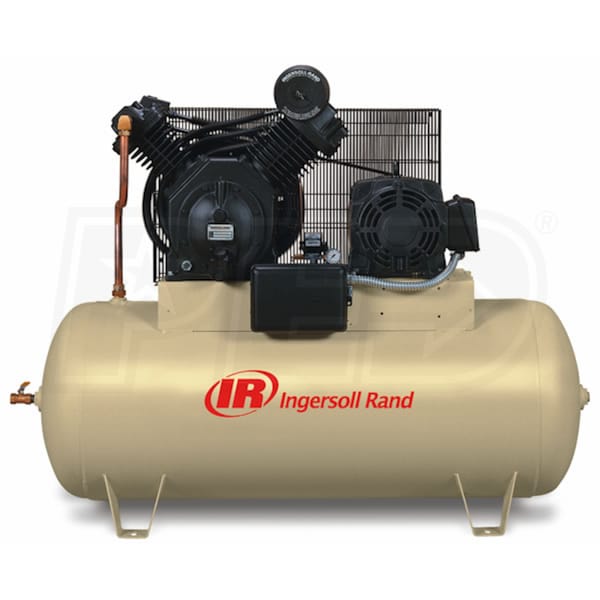

Ingersoll Rand 15-HP 120-Gallon Two-Stage Air Compressor (460V 3-Phase)
Model: 7100E15V-460
+
Share This Product
-
Product Description
-
1Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
50
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
50 CFM Rated @ 175 PSI
Tank Size
120 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Continuous-Duty Operation
- 100% cast-iron cylinders and pump
- Oversized cast-iron balanced belt wheel
- Oversized industrial-grade bearings
- High Efficiency Parts
- High-efficiency stainless steel valves
- High-efficiency intercooler
- High-efficiency inlet air filters with sound attenuation baffles
- 2-Piece Connection Rods
- Less moving parts increases reliability
- Air Cooled Intercooler
- Reduces compressed air temperature and condensation

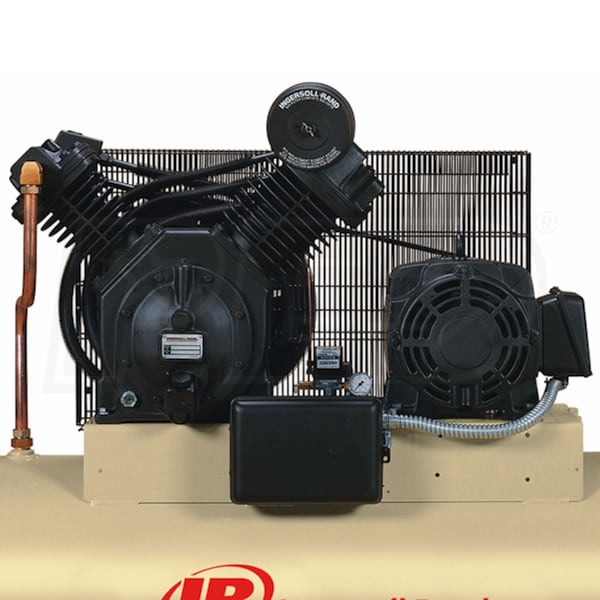

- V-Block Deep Finned Cylinders
- Provides 360 degrees cooling for lower operating temperature
- OSHA Compliant
- Fully enclosed flywheel, belt and motor sheave
- Fully Tested
- All units are prewired and thoroughly tested prior to shipment
- Ingersoll Rand Reciprocating Compressors Ship Dry
- Use of the Ingersoll Rand Maintenance Kit extends the Factory Warranty by 1 year
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
19.5
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
50
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
1239 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
72 Inches
Product Width
29 Inches
Product Height
57 Inches
Power Type
Electric
UPC
678384661331
Grade
Style
CFM
50
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
50 CFM Rated @ 175 PSI
Tank Size
120 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Continuous-Duty Operation
- 100% cast-iron cylinders and pump
- Oversized cast-iron balanced belt wheel
- Oversized industrial-grade bearings
- High Efficiency Parts
- High-efficiency stainless steel valves
- High-efficiency intercooler
- High-efficiency inlet air filters with sound attenuation baffles
- 2-Piece Connection Rods
- Less moving parts increases reliability
- Air Cooled Intercooler
- Reduces compressed air temperature and condensation
- V-Block Deep Finned Cylinders
- Provides 360 degrees cooling for lower operating temperature
- OSHA Compliant
- Fully enclosed flywheel, belt and motor sheave
- Fully Tested
- All units are prewired and thoroughly tested prior to shipment
- Ingersoll Rand Reciprocating Compressors Ship Dry
- Use of the Ingersoll Rand Maintenance Kit extends the Factory Warranty by 1 year
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
19.5
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
50
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
1239 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
72 Inches
Product Width
29 Inches
Product Height
57 Inches
Power Type
Electric
UPC
678384661331
Product Specs
+−
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
19.5
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
50
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
1239 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
72 Inches
Product Width
29 Inches
Product Height
57 Inches
Power Type
Electric
UPC
678384661331
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
Hello
What is the best Air Dryer for this particular air compressor thanks
Sibtain
from Texas
August 15, 2011
Answer
Sizing refrigerated air dryers is simple. You only need two specs from your air compressor:
1) What is the CFM (cubic feet per minute) air delivery?
2) Does my air compressor have an aftercooler already installed?
Yes, then select an air dryer meeting or exceeding the CFM of the compressor
No, then select the high temperature air dryer of proper CFM
1) What is the CFM (cubic feet per minute) air delivery?
2) Does my air compressor have an aftercooler already installed?
Yes, then select an air dryer meeting or exceeding the CFM of the compressor
No, then select the high temperature air dryer of proper CFM
