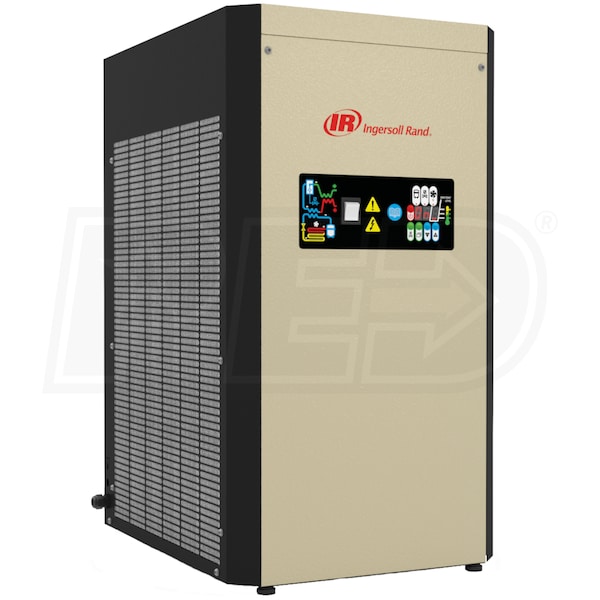

Ingersoll Rand High Temperature Refrigerated Air Dryer 20HP (82 CFM)

Ingersoll Rand High Temperature Refrigerated Air Dryer 20HP (82 CFM)
Our Price
Compare Prices
Shipping Info
Model: D140IT
$3,319.99

Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Add-Ons
+$75.00
Factory-Direct
This Item Is Built To Order
Free Shipping
Free Shipping
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii, or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Refrigerated
Air Dryer CFM
82
Style
Refrigerated
Air Dryer CFM
82
Features
Features
  • For Use With Compressors Without Aftercoolers Up To 180°F
  • Keeps damp air from rusting tools & washing away lubricants
  • ISO Class 6 Dryer Is Reliable And Operationally Efficient
  • 82 CFM with exceptionally low pressure drop; 20 HP motor
  • Built In Aftercoolers & General Purpose Coalescing Filters
  • Integral stainless steel moisture separation for compressors that don't have aftercoolers
  • Class H optimized pressure between 35° - 40°F dewpoint
  • Temperature driven variable speed fan for continuous heat removal
  • Electronic solenoid drain valve for optimal performance
  • User Friendly Controls
  • Simple, easy to read control panel uses a color coded diagram
  • Environmentally Friendly
  • Uses 115V, 1 phase power and R134A refrigerant
  • Sturdy, powder coated finish
  • Corrosion resistant aluminum plate heat exchanger
  • Professional Features
  • Maximum pressure of 203PSI
  • Maximum inlet temperature of 200°F; maximum ambient temp 122°F
  • 3/4" NPT inlet & outlet fittings
  • Includes a prefilter/moisture separator trap to remove oil
Specifications
Engine
HP
20
Air Dryer
Air Dryer CFM
82
Max Inlet Temp. Rating
200
Max Ambient Temp. Rating
122
Non-Cycling
Yes
Inlet Fittings
3/4"
Outlet Fittings
3/4"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
No
High Temp
Yes
Overview
Weight
137 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
22.5 Inches
Product Width
16.5 Inches
Product Height
30.5 Inches
Style
Refrigerated
Air Dryer CFM
82
Style
Refrigerated
Air Dryer CFM
82
Features
Features
  • For Use With Compressors Without Aftercoolers Up To 180°F
  • Keeps damp air from rusting tools & washing away lubricants
  • ISO Class 6 Dryer Is Reliable And Operationally Efficient
  • 82 CFM with exceptionally low pressure drop; 20 HP motor
  • Built In Aftercoolers & General Purpose Coalescing Filters
  • Integral stainless steel moisture separation for compressors that don't have aftercoolers
  • Class H optimized pressure between 35° - 40°F dewpoint
  • Temperature driven variable speed fan for continuous heat removal
  • Electronic solenoid drain valve for optimal performance
  • User Friendly Controls
  • Simple, easy to read control panel uses a color coded diagram
  • Environmentally Friendly
  • Uses 115V, 1 phase power and R134A refrigerant
  • Sturdy, powder coated finish
  • Corrosion resistant aluminum plate heat exchanger
  • Professional Features
  • Maximum pressure of 203PSI
  • Maximum inlet temperature of 200°F; maximum ambient temp 122°F
  • 3/4" NPT inlet & outlet fittings
  • Includes a prefilter/moisture separator trap to remove oil
Specifications
Engine
HP
20
Air Dryer
Air Dryer CFM
82
Max Inlet Temp. Rating
200
Max Ambient Temp. Rating
122
Non-Cycling
Yes
Inlet Fittings
3/4"
Outlet Fittings
3/4"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
No
High Temp
Yes
Overview
Weight
137 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
22.5 Inches
Product Width
16.5 Inches
Product Height
30.5 Inches
Product Specs
+
Specifications
Engine
HP
20
Air Dryer
Air Dryer CFM
82
Max Inlet Temp. Rating
200
Max Ambient Temp. Rating
122
Non-Cycling
Yes
Inlet Fittings
3/4"
Outlet Fittings
3/4"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
No
High Temp
Yes
Overview
Weight
137 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
22.5 Inches
Product Width
16.5 Inches
Product Height
30.5 Inches
