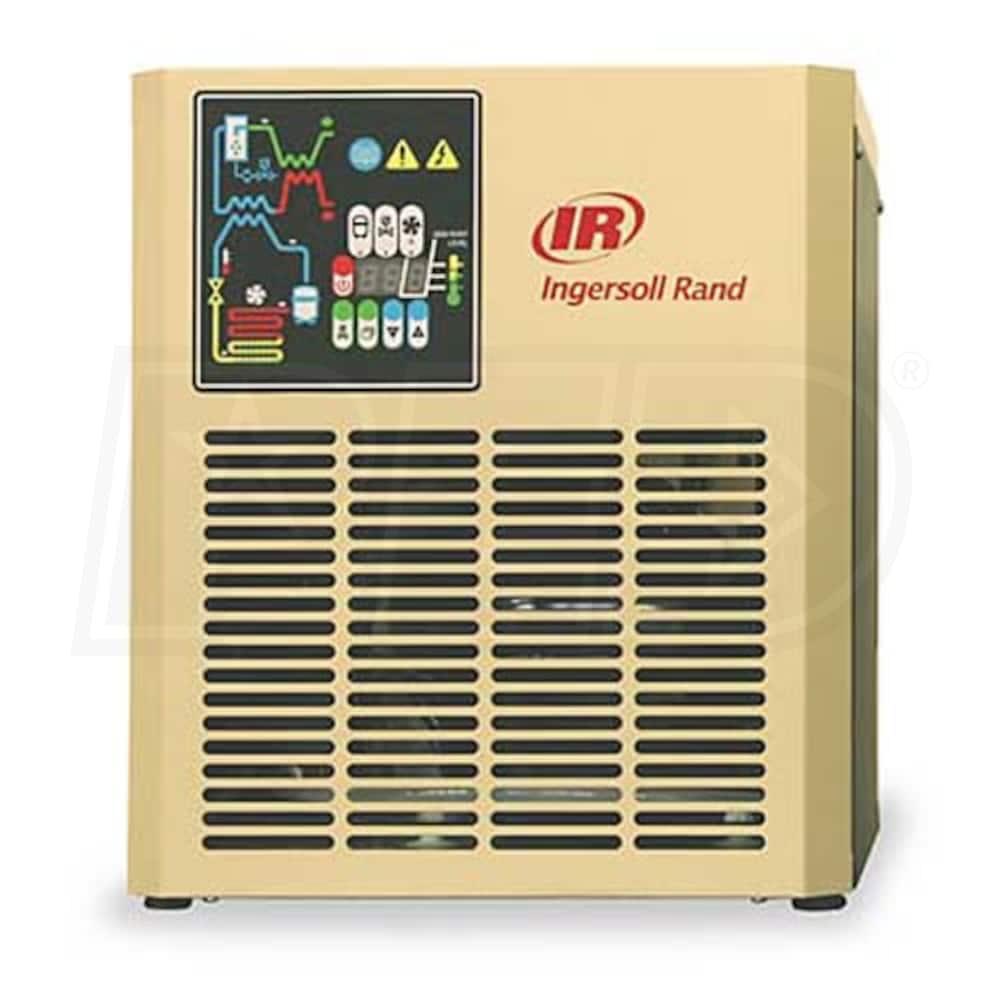

Ingersoll Rand Refrigerated Air Dryer 5HP (15 CFM)
Model: D25IN
4.2 out of 54.2 out of 54.2 out of 54.2 out of 54.2 out of 5
Number of Reviews(5)
Write a Review
$919.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States

Share
  • Product Description
  • 5
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
Product Description
+
Style
Refrigerated
Air Dryer CFM
15
Style
Refrigerated
Air Dryer CFM
15


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • For Use With Compressors With Aftercoolers
  • Keeps damp air from rusting tools & washing away lubricants
  • ISO Class 6 Dryer Is Reliable And Operationally Efficient
  • 15 CFM with exceptionally low pressure drop; 5 HP motor
  • Integral stainless steel moisture separation
  • Continuous Pressure Class H Dew Point Performance
  • Optimized pressure 50°F dew point
  • Temperature driven variable speed fan for continuous heat removal
  • Electronic solenoid drain valve for optimal performance
  • User Friendly Controls
  • Simple, easy to read control panel uses a color coded diagram
  • Environmentally Friendly
  • Uses 115V, 1 phase, 2.23 amp power and R134A refrigerant
  • Sturdy, powder coated finish
  • Aluminum braze plate heat exchanger
  • Professional Features
  • Maximum pressure of 203PSI
  • Maximum inlet temperature of 140°F; maximum ambient temp 122°F
  • 3/8" NPT inlet & outlet fittings
  • Installation of an upstream 1.0 micron prefilter is recommended
Specifications
Engine
HP
5
Motor
Voltage
115 Volt AC
Phase
1-Phase
Air Dryer
Air Dryer CFM
15
Max PSI
203
Max Inlet Temp. Rating
140
Max Ambient Temp. Rating
122
Non-Cycling
Yes
Inlet Fittings
3/8"
Outlet Fittings
3/8"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
No
High Temp
No
Overview
Weight
40 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
16 Inches
Product Width
12 Inches
Product Height
16 Inches
Power Type
Electric
Style
Refrigerated
Air Dryer CFM
15
Style
Refrigerated
Air Dryer CFM
15


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • For Use With Compressors With Aftercoolers
  • Keeps damp air from rusting tools & washing away lubricants
  • ISO Class 6 Dryer Is Reliable And Operationally Efficient
  • 15 CFM with exceptionally low pressure drop; 5 HP motor
  • Integral stainless steel moisture separation
  • Continuous Pressure Class H Dew Point Performance
  • Optimized pressure 50°F dew point
  • Temperature driven variable speed fan for continuous heat removal
  • Electronic solenoid drain valve for optimal performance
  • User Friendly Controls
  • Simple, easy to read control panel uses a color coded diagram
  • Environmentally Friendly
  • Uses 115V, 1 phase, 2.23 amp power and R134A refrigerant
  • Sturdy, powder coated finish
  • Aluminum braze plate heat exchanger
  • Professional Features
  • Maximum pressure of 203PSI
  • Maximum inlet temperature of 140°F; maximum ambient temp 122°F
  • 3/8" NPT inlet & outlet fittings
  • Installation of an upstream 1.0 micron prefilter is recommended
Specifications
Engine
HP
5
Motor
Voltage
115 Volt AC
Phase
1-Phase
Air Dryer
Air Dryer CFM
15
Max PSI
203
Max Inlet Temp. Rating
140
Max Ambient Temp. Rating
122
Non-Cycling
Yes
Inlet Fittings
3/8"
Outlet Fittings
3/8"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
No
High Temp
No
Overview
Weight
40 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
16 Inches
Product Width
12 Inches
Product Height
16 Inches
Power Type
Electric
Product Specs
+
Specifications
Engine
HP
5
Motor
Voltage
115 Volt AC
Phase
1-Phase
Air Dryer
Air Dryer CFM
15
Max PSI
203
Max Inlet Temp. Rating
140
Max Ambient Temp. Rating
122
Non-Cycling
Yes
Inlet Fittings
3/8"
Outlet Fittings
3/8"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
No
High Temp
No
Overview
Weight
40 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
16 Inches
Product Width
12 Inches
Product Height
16 Inches
Power Type
Electric
Reviews
(5)
+
Ingersoll Rand D25IN Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Joshua. the Air Compressor Expert
icon-social-fb1
+
i have speedaire 80 gal 7.5 hp air compressor to use for automobile paint. i am getting water out from line now days, and i like to dry out so no water going to come out when i spray. is this product(ir d25in)can do this job and good size for compressor i have????
Brian Yoo
from Virginia
August 11, 2011
Answer
Hello,
Increased water in the air maybe a sign of a worn air compressor pump.
If your compressor has an air aftercooler installed, then a refrigerated air dryer meeting or exceeding the CFM of your compressor.
If your compressor does not have an air aftercooler installed, then a high temperature air dryer would be required.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
