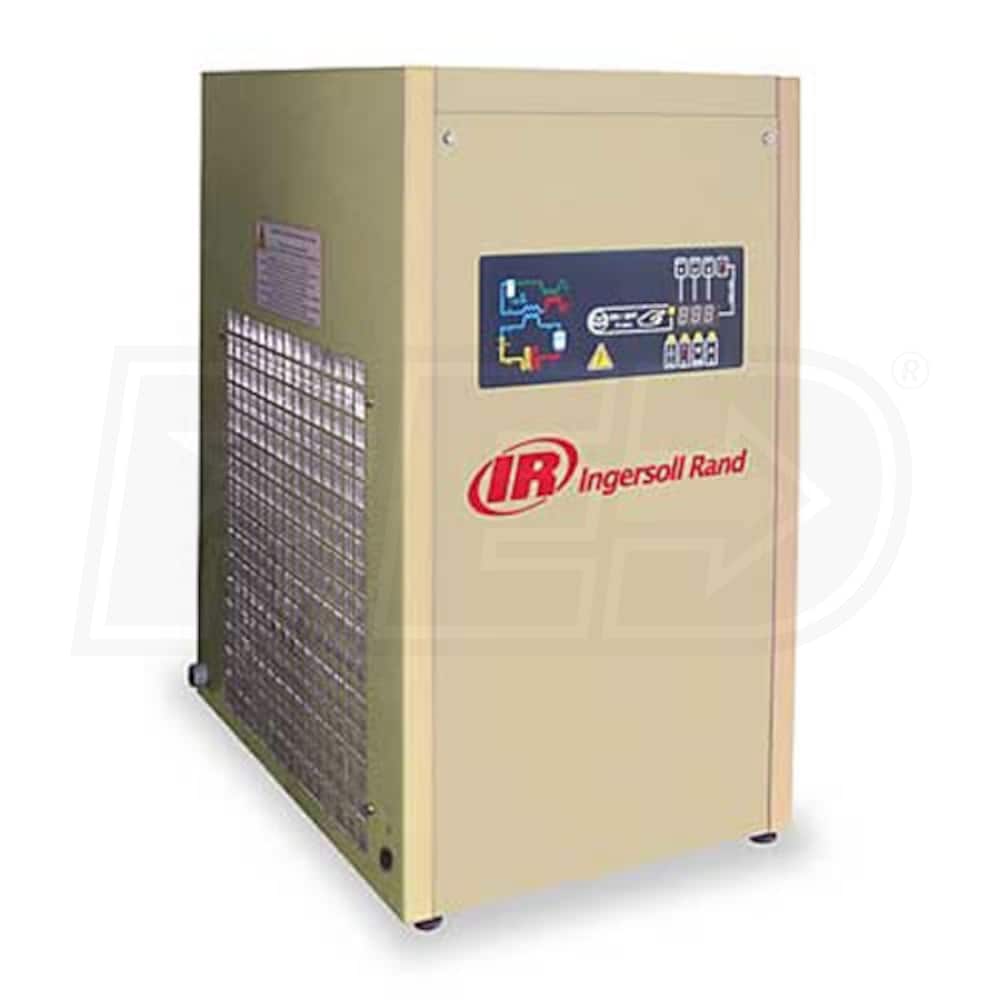

Ingersoll Rand High Temperature Refrigerated Air Dryer 7.5HP (25 CFM)
Model: D42IT
+
Share This Product
-
Product Description
-
2Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

Air Dryer CFM
25
Style
Refrigerated
Air Dryer CFM
25
Features
Features
- For Use With Compressors Without Aftercoolers Up To 180°F
- Keeps damp air from rusting tools & washing away lubricants
- ISO Class 6 Dryer Is Reliable And Operationally Efficient
- 25 CFM with exceptionally low pressure drop; 7.5 HP motor
- Built In Aftercoolers & General Purpose Coalescing Filters
- Integral stainless steel moisture separation; use with compressors that do not have aftercoolers
- Class H optimized pressure between 35° - 40°F dewpoint
- Temperature driven variable speed fan for continuous heat removal
- Electronic solenoid drain valve for optimal performance
- User Friendly Controls
- Simple, easy to read control panel uses a color coded diagram
- Environmentally Friendly
- Uses 115V, 1 phase power and R134A refrigerant
- Sturdy, powder coated finish
- Corrosion resistant aluminum plate heat exchanger
- Professional Features
- Maximum pressure of 203PSI
- Maximum inlet temperature of 200°F; maximum ambient temp 122°F
- 1/2" NPT inlet & outlet fittings
- Includes a prefilter/moisture separator trap to remove oil
Specifications
Engine
HP
7.5
Motor
Voltage
115 Volt AC
Phase
1-Phase
Air Dryer
Air Dryer CFM
25
Max PSI
203
Max Inlet Temp. Rating
200
Max Ambient Temp. Rating
122
Non-Cycling
Yes
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
No
High Temp
Yes
Overview
Weight
86 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
20 Inches
Product Width
15.5 Inches
Product Height
26 Inches
Power Type
Electric
Style

Air Dryer CFM
25
Style
Refrigerated
Air Dryer CFM
25
Features
Features
- For Use With Compressors Without Aftercoolers Up To 180°F
- Keeps damp air from rusting tools & washing away lubricants
- ISO Class 6 Dryer Is Reliable And Operationally Efficient
- 25 CFM with exceptionally low pressure drop; 7.5 HP motor
- Built In Aftercoolers & General Purpose Coalescing Filters
- Integral stainless steel moisture separation; use with compressors that do not have aftercoolers
- Class H optimized pressure between 35° - 40°F dewpoint
- Temperature driven variable speed fan for continuous heat removal
- Electronic solenoid drain valve for optimal performance
- User Friendly Controls
- Simple, easy to read control panel uses a color coded diagram
- Environmentally Friendly
- Uses 115V, 1 phase power and R134A refrigerant
- Sturdy, powder coated finish
- Corrosion resistant aluminum plate heat exchanger
- Professional Features
- Maximum pressure of 203PSI
- Maximum inlet temperature of 200°F; maximum ambient temp 122°F
- 1/2" NPT inlet & outlet fittings
- Includes a prefilter/moisture separator trap to remove oil
Specifications
Engine
HP
7.5
Motor
Voltage
115 Volt AC
Phase
1-Phase
Air Dryer
Air Dryer CFM
25
Max PSI
203
Max Inlet Temp. Rating
200
Max Ambient Temp. Rating
122
Non-Cycling
Yes
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
No
High Temp
Yes
Overview
Weight
86 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
20 Inches
Product Width
15.5 Inches
Product Height
26 Inches
Power Type
Electric
Product Specs
+−
Specifications
Engine
HP
7.5
Motor
Voltage
115 Volt AC
Phase
1-Phase
Air Dryer
Air Dryer CFM
25
Max PSI
203
Max Inlet Temp. Rating
200
Max Ambient Temp. Rating
122
Non-Cycling
Yes
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
No
High Temp
Yes
Overview
Weight
86 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
20 Inches
Product Width
15.5 Inches
Product Height
26 Inches
Power Type
Electric
