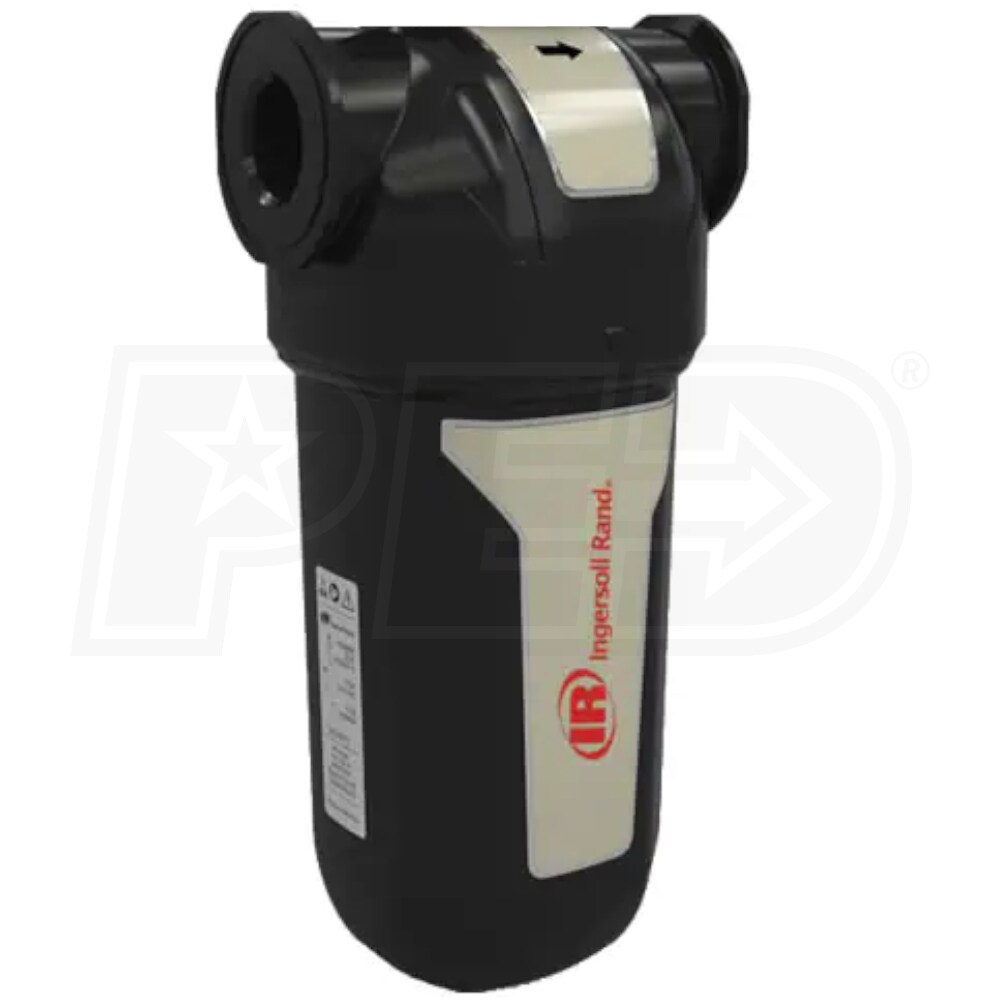

Ingersoll Rand 3/4" 250 PSI Activated Carbon Compressed Air Filter (65 CFM)
Model: FA110IA
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Activated Carbon Air Filter
- Oil vapor & hydrocarbon odor removal
- High quality air as defined by ISO 8573-1:2010
- Precede with a Grade H filter; max operating temp 86°F (30°C)
- Efficient Flow Path
- Deep pleated element design minimizes pressure drop
- Reduced turbulence enhances compressor efficiency
- Zero Clearance Design
- Minimal space requirements install where other filters won't fit
- No-Touch Filter Element
- Efficient operation for up to 1 year between element change-outs
- Element changes are easy- just dump out the old, drop in the new
- Helps reduce overall ownership costs
- All Aluminum Die-Cast Body
- Proprietary coating inside & out protects against corrosion
- Patented Dual Indicator
- Shows differential pressure drop & operating efficiency
- Industrial Grade Automatic Brass Float Drain
- Discharges more reliably than lower quality plastic drains
- Minimum operating temperature 34° F
Specifications
Filter
Filter CFM
65
Carbon Filter
Yes
Inlet Fittings
3/4"
Outlet Fittings
3/4"
Fitting Size
3/4"
Overview
Weight
2.4 Pounds
Product Length
3.9 Inches
Product Width
3.9 Inches
Product Height
11.1 Inches
Features
Features
- Activated Carbon Air Filter
- Oil vapor & hydrocarbon odor removal
- High quality air as defined by ISO 8573-1:2010
- Precede with a Grade H filter; max operating temp 86°F (30°C)
- Efficient Flow Path
- Deep pleated element design minimizes pressure drop
- Reduced turbulence enhances compressor efficiency
- Zero Clearance Design
- Minimal space requirements install where other filters won't fit
- No-Touch Filter Element
- Efficient operation for up to 1 year between element change-outs
- Element changes are easy- just dump out the old, drop in the new
- Helps reduce overall ownership costs
- All Aluminum Die-Cast Body
- Proprietary coating inside & out protects against corrosion
- Patented Dual Indicator
- Shows differential pressure drop & operating efficiency
- Industrial Grade Automatic Brass Float Drain
- Discharges more reliably than lower quality plastic drains
- Minimum operating temperature 34° F
Specifications
Filter
Filter CFM
65
Carbon Filter
Yes
Inlet Fittings
3/4"
Outlet Fittings
3/4"
Fitting Size
3/4"
Overview
Weight
2.4 Pounds
Product Length
3.9 Inches
Product Width
3.9 Inches
Product Height
11.1 Inches
Product Specs
+−
Specifications
Filter
Filter CFM
65
Carbon Filter
Yes
Inlet Fittings
3/4"
Outlet Fittings
3/4"
Fitting Size
3/4"
Overview
Weight
2.4 Pounds
Product Length
3.9 Inches
Product Width
3.9 Inches
Product Height
11.1 Inches
